Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1107AF260WQSWITCH TACTILE SPST-NO 0.05A 12V |
2,580 |
|
Datasheet | TL1107 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|

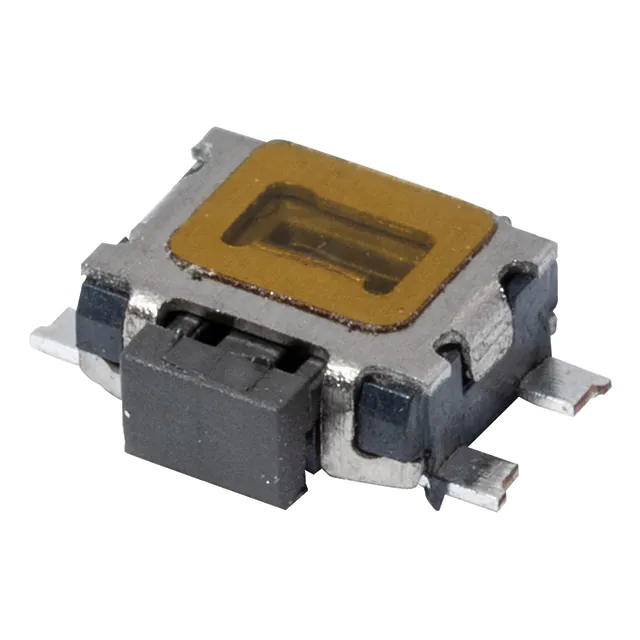

PTS841 GK SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,513 |
|
Datasheet | PTS841 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 3.60mm x 3.50mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
KSC461J ST1 LFSSWITCH TACTILE SPST-NO 0.05A 32V |
2,316 |
|
Datasheet | KSC-ST | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 625gf | IP67 - Dust Tight, Waterproof | Sound Tunable | -40°C ~ 85°C |
|
|
SKHHALA010SWITCH TACTILE SPST-NO 0.05A 12V |
2,043 |
|
Datasheet | SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
1977223-1SWITCH TACTILE SPST-NO 0.05A 24V |
29,229 |
|
Datasheet | FSMJSM | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 105°C |
|
TL6300AF260QPSWITCH TACTILE SPST-NO 0.05A 12V |
20,524 |
|
Datasheet | TL6300 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
|
SKRPACE010SWITCH TACTILE SPST-NO 0.05A 16V |
8,249 |
|
Datasheet | SKRP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 85°C |
|
431183015816SWITCH TACTILE SPST-NO 0.02A 15V |
7,744 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 5.00mm x 5.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -40°C ~ 85°C |
|
TL1105QF160QSWITCH TACTILE SPST-NO 0.05A 12V |
6,511 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 15.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
CS1213AGF160SWITCH TACTILE SPST-NO 0.05A 50V |
5,433 |
|
Datasheet | CS1213 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | SMD (SMT) Tab | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MJTP1236SWITCH TACTILE SPST-NO 0.05A 12V |
4,088 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.10mm | Side Actuated | PC Pin | 7.40mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
430186043716SWITCH TACTILE SPST-NO 0.05A 12V |
3,704 |
|
Datasheet | WS-TATV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MJTP1234SWITCH TACTILE SPST-NO 0.05A 12V |
2,854 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
430152050826SWITCH TACTILE SPST-NO 0.05A 12V |
2,288 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
LS10N2-TSWITCH TACTILE SPST-NO 0.02A 12V |
2,189 |
|
Datasheet | LS10 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.50mm | Side Actuated | SMD (SMT) Tab | 4.65mm x 2.30mm | Non-Illuminated | - | - | 160gf | - | - | - |
|
|
SKHHBYA010SWITCH TACTILE SPST-NO 0.05A 12V |
2,158 |
|
Datasheet | SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 90°C |
|
|
ADTS63KVSWITCH TACTILE SPST-NO 0.05A 12V |
1,801 |
|
Datasheet | ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
MJTP1236ASWITCH TACTILE SPST-NO 0.05A 12V |
1,471 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.90mm | Side Actuated | PC Pin | 7.40mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
CS1210F160SWITCH TACTILE SPST-NO 0.05A 50V |
1,192 |
|
Datasheet | CS1210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | SMD (SMT) Tab | 3.40mm x 3.40mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3301TF160QGTRSWITCH TACTILE SPST-NO 0.05A 12V |
34,410 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
