Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1105XF250QSWITCH TACTILE SPST-NO 0.05A 12V |
6,996 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
TL1105WF100QSWITCH TACTILE SPST-NO 0.05A 12V |
6,677 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
TL1105RF250QSWITCH TACTILE SPST-NO 0.05A 12V |
5,754 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
PTS641SP25SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
3,909 |
|
Datasheet | PTS641 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.30mm x 6.30mm | Non-Illuminated | - | - | 320gf | - | - | -20°C ~ 85°C |
|
TL1105RF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,851 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
PTS840GMPSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
77,733 |
|
Datasheet | PTS840 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -40°C ~ 85°C |
|
TL3301EF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
20,464 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

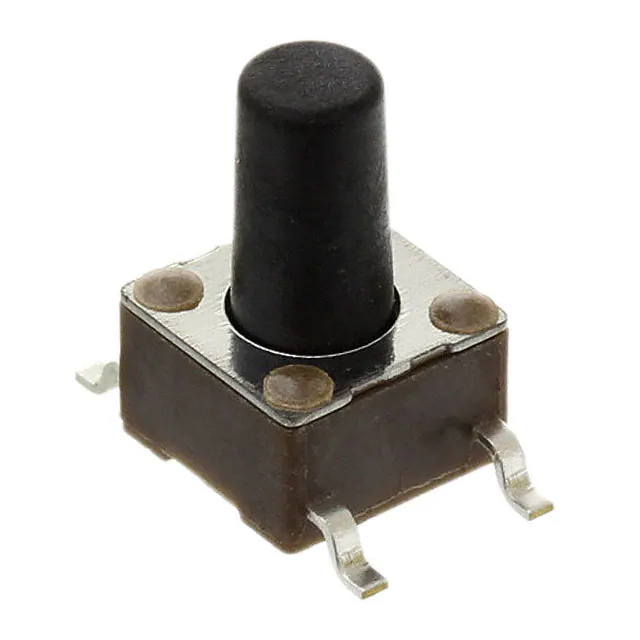

FSM8JSMASWITCH TACTILE SPST-NO 0.05A 24V |
17,089 |
|
Datasheet | FSMJSMA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

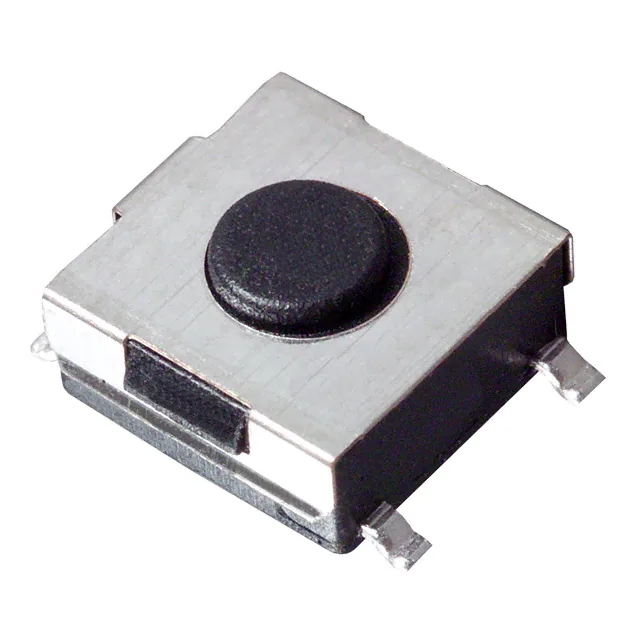

FSM1LPSWITCH TACTILE SPST-NO 0.05A 24V |
14,774 |
|
Datasheet | FSM1LP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|
|
PTS645SK70SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,367 |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
EVQ-3PLA15SWITCH TACTILE SPST-NO 0.02A 15V |
10,851 |
|
Datasheet | EVQ3PL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 4.90mm x 4.90mm | Non-Illuminated | - | - | 357gf | - | Push Plate | -20°C ~ 70°C |
|
PTS645VL39-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
8,066 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.00mm x 7.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
|
TL1016BAF220QGSWITCH TACTILE SPST-NO 0.05A 12V |
5,754 |
|
Datasheet | TL1016 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | Gull Wing | 4.70mm x 2.90mm | - | - | - | 220gf | - | - | -40°C ~ 85°C |
|
B3F-1050SWITCH TACTILE SPST-NO 0.05A 24V |
5,640 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
EVQ-P0Q02QSWITCH TACTILE SPST-NO 0.02A 15V |
4,504 |
|
Datasheet | EVQP0 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
B3F-6020SWITCH TACTILE SPST-NO 0.05A 24V |
4,124 |
|
Datasheet | B3F | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
TL1105SF100QSWITCH TACTILE SPST-NO 0.05A 12V |
3,129 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
TL3145BF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,561 |
|
Datasheet | TL3145 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.45mm x 6.45mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

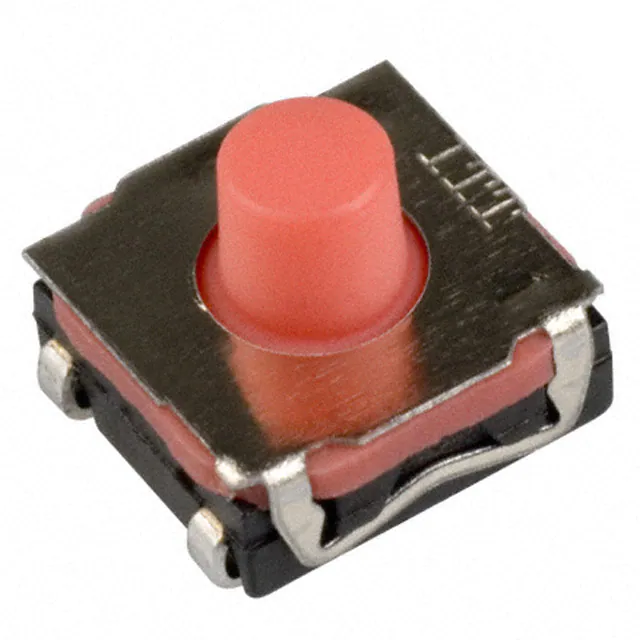

KSC401J 50SH LFSSWITCH TACTILE SPST-NO 0.05A 32V |
83,604 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 145gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
B3F-3152SWITCH TACTILE SPST-NO 0.05A 24V |
55,783 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 150gf | - | Grounding Pin | -25°C ~ 70°C |
