Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL59AF260Q-KRSWITCH TACTILE SPST-NO 0.05A 12V |
16,162 |
|
Datasheet | TL59 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
222PJVAARSWITCH TACTILE SPST-NO 0.05A 32V |
9,666 |
|
Datasheet | 222P | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.60mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|
KSC2TE41J LFSSWITCH TACT SPST-NO 0.001A 24V |
8,203 |
|
Datasheet | KSC-TE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.001A @ 24VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
MJTP1250SWITCH TACTILE SPST-NO 0.05A 12V |
3,258 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
MJTP1230DSWITCH TACTILE SPST-NO 0.05A 12V |
2,885 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL1105KF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,986 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
PTS645VL31-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
28,437 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.00mm x 7.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL1105WF160QSWITCH TACTILE SPST-NO 0.05A 12V |
19,903 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
SKRWAEE030SWITCH TACTILE SPST-NO 0.05A 12V |
18,058 |
|
Datasheet | SKRW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Snap Dome | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 3.70mm x 3.70mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 85°C |
|
PTS645VL58-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
17,698 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL1105XF160QSWITCH TACTILE SPST-NO 0.05A 12V |
15,164 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
PTS645VH58-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
14,612 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|
PTS645VH31-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
13,211 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|
KSC1151J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
11,506 |
|
Datasheet | KSC11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.90mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 510gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
SKRWADE030SWITCH TACTILE SPST-NO 0.05A 12V |
11,097 |
|
Datasheet | SKRW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Snap Dome | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 3.70mm x 3.70mm | Non-Illuminated | - | - | 240gf | - | - | -30°C ~ 85°C |
|
RKC2SJF170SMTR LFSSWITCH TACTILE SPST-NO 0.02A 12V |
9,888 |
|
Datasheet | RKC2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.70mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
TL1105SF250QSWITCH TACTILE SPST-NO 0.05A 12V |
9,656 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
RT1105AF160QSWITCH TACTILE SPST-NO 0.05A 12V |
9,065 |
|
Datasheet | RT1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Reverse | 4.40mm | - | Top Actuated | PC Pin | 6.80mm x 6.80mm | Non-Illuminated | - | - | 160gf | - | Red Actuator | -20°C ~ 85°C |
|
TL1105VF250QSWITCH TACTILE SPST-NO 0.05A 12V |
8,315 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|

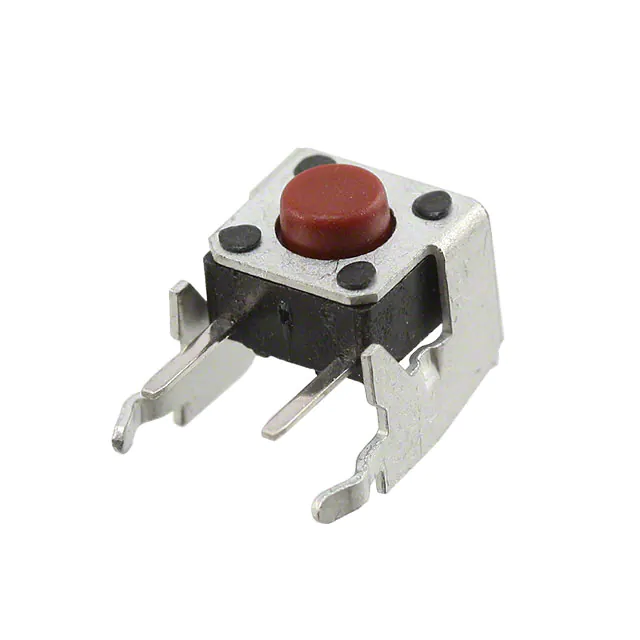

PTS645VK39-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,039 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
