Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9002-G1CSWITCH TACTILE SPST-NO 0.05A 24V |
168 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-G1CSWITCH TACTILE SPST-NO 0.05A 24V |
211 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|

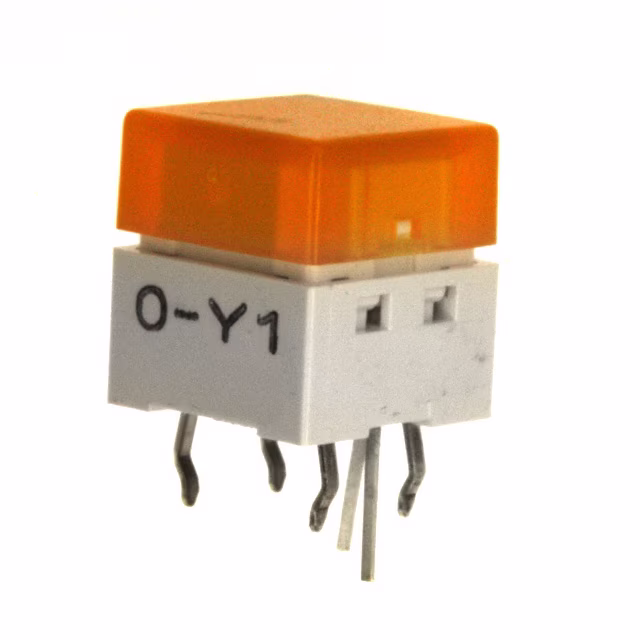

B3W-9000-Y1YSWITCH TACTILE SPST-NO 0.05A 24V |
245 |
|
Datasheet | B3W-9 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2.4 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-RG2CSWITCH TACTILE SPST-NO 0.05A 24V |
292 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green/Red | 1.8, 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-RG2NSWITCH TACTILE SPST-NO 0.05A 24V |
287 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green/Red | 1.8, 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-HG1NSWITCH TACTILE SPST-NO 0.05A 24V |
252 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
597 |
|
Datasheet | B3W-9 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9000-HG1GSWITCH TACTILE SPST-NO 0.05A 24V |
295 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-R1RSWITCH TACTILE SPST-NO 0.05A 24V |
298 |
|
Datasheet | B3W-9 | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Red | 1.8 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-RG2NSWITCH TACTILE SPST-NO 0.05A 24V |
290 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green/Red | 1.8, 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
