Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3S-1102SWITCH TACTILE SPST-NO 0.05A 24V |
10,281 |
|
Datasheet | B3S | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | Grounding Pin, Sealed - Fully | -25°C ~ 70°C |
|

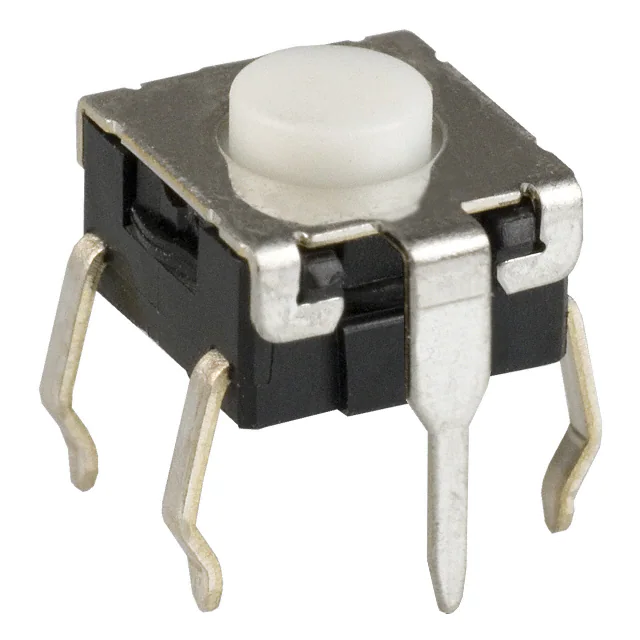

B3W-1100SWITCH TACTILE SPST-NO 0.05A 24V |
2,681 |
|
Datasheet | B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3W-1150SWITCH TACTILE SPST-NO 0.05A 24V |
3,849 |
|
Datasheet | B3W | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3S-1102PSWITCH TACTILE SPST-NO 0.05A 24V |
4,286 |
|
Datasheet | B3S | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | Grounding Pin, Sealed - Fully | -25°C ~ 70°C |
|

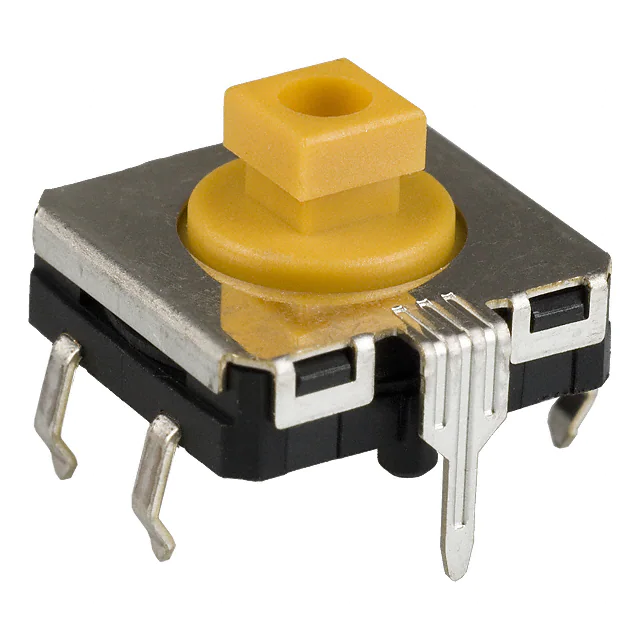

B3W-4155SWITCH TACTILE SPST-NO 0.05A 24V |
3,921 |
|
Datasheet | B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3U-3100PM-BSWITCH TACTILE SPST-NO 0.05A 12V |
3,239 |
|
Datasheet | B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 4.00mm x 2.50mm | Non-Illuminated | - | - | 162gf | Dust Proof | Grounding Pin | -25°C ~ 70°C |
|

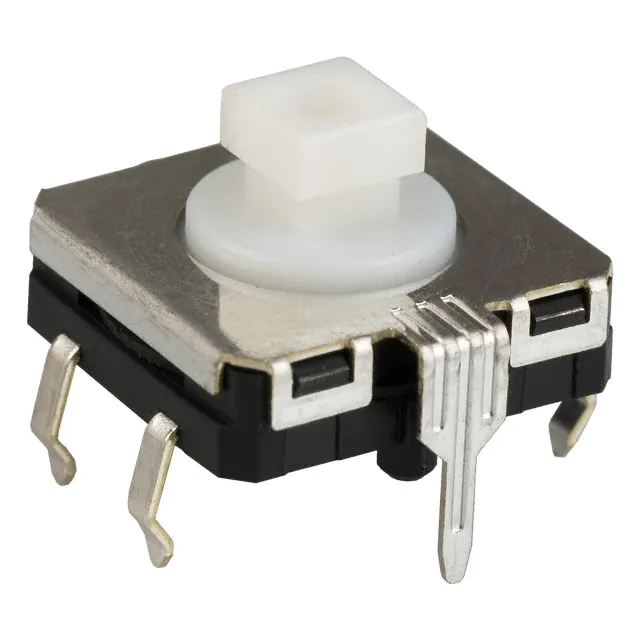

B3W-4150SWITCH TACTILE SPST-NO 0.05A 24V |
9,464 |
|
Datasheet | B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3FS-1005SWITCH TACTILE SPST-NO 0.05A 24V |
2,907 |
|
Datasheet | B3FS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|

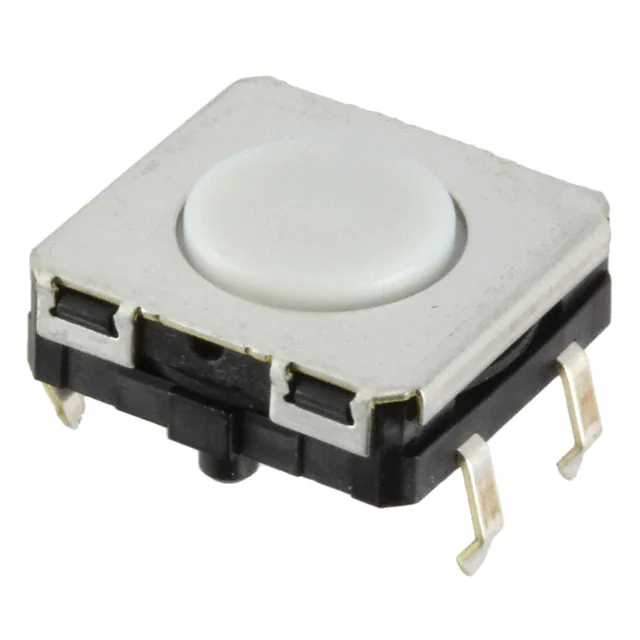

B3W-4000SSWITCH TACTILE SPST-NO 0.05A 24V |
771 |
|
Datasheet | B3W | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3FS-1005PSWITCH TACTILE SPST-NO 0.05A 24V |
5,795 |
|
Datasheet | B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
