Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3SN-3112PSWITCH TACTILE SPST-NO 0.05A 24V |
7,076 |
|
Datasheet | B3SN | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Grounding Pin, Sealed - Fully | -25°C ~ 70°C |
|
B3SL-1025PSWITCH TACTILE SPST-NO 0.05A 12V |
4,766 |
|
Datasheet | B3SL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.10mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 357gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 90°C |
|
B3U-3000PM-BSWITCH TACTILE SPST-NO 0.05A 12V |
4,112 |
|
Datasheet | B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 4.00mm x 2.50mm | Non-Illuminated | - | - | 162gf | Dust Proof | - | -25°C ~ 70°C |
|
B3FS-4002PSWITCH TACTILE SPST-NO 0.05A 24V |
2,481 |
|
Datasheet | B3FS-4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
B3AL-1003PSWITCH TACTILE SPST-NO 0.05A 16V |
4,823 |
|
Datasheet | B3AL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Square Button | Surface Mount | 5.00mm | - | Top Actuated | SMD (SMT) Tab | 6.90mm x 6.00mm | Non-Illuminated | - | - | 357gf | - | - | -40°C ~ 90°C |
|
B3AL-1000PSWITCH TACTILE SPST-NO 0.05A 16V |
2,673 |
|
Datasheet | B3AL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Square Button | Surface Mount | 5.00mm | - | Top Actuated | SMD (SMT) Tab | 6.90mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 90°C |
|
B3FS-4052PSWITCH TACTILE SPST-NO 0.05A 24V |
1,983 |
|
Datasheet | B3FS-4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|

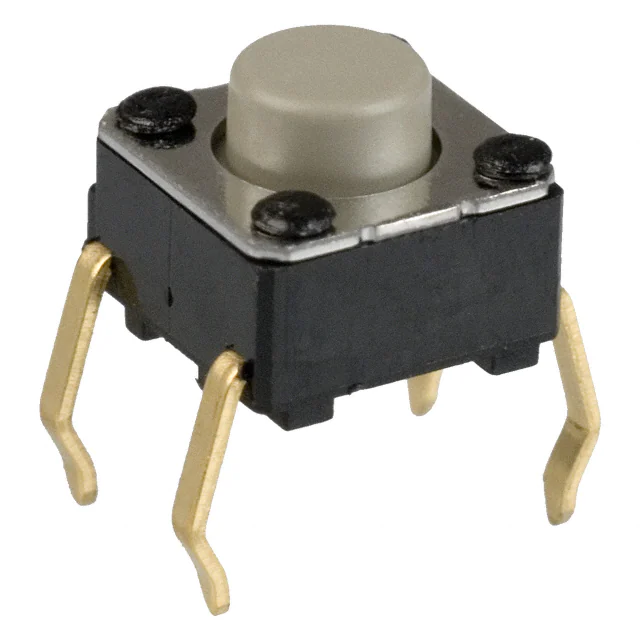

B3F-1022-GSWITCH TACTILE SPST-NO 0.05A 24V |
1,447 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
B3AL-1001PSWITCH TACTILE SPST-NO 0.05A 16V |
3,069 |
|
Datasheet | B3AL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Square Button | Surface Mount | 5.00mm | - | Top Actuated | SMD (SMT) Tab | 6.90mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 90°C |
|
B3AL-1004PSWITCH TACTILE SPST-NO 0.05A 16V |
1,859 |
|
Datasheet | B3AL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Square Button | Surface Mount | 5.00mm | - | Top Actuated | SMD (SMT) Tab | 6.90mm x 6.00mm | Non-Illuminated | - | - | 510gf | - | - | -40°C ~ 90°C |
