Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8-1437565-2SWITCH TACTILE SPST-NO 0.05A 24V |
4,248 |
|
Datasheet | FSMJM | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | SMD (SMT) Tab | 6.00mm x 3.50mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
FSMCDSWITCH TACTILE SPST-NO 0.05A 24V |
2,667 |
|
Datasheet | FSMCD | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|

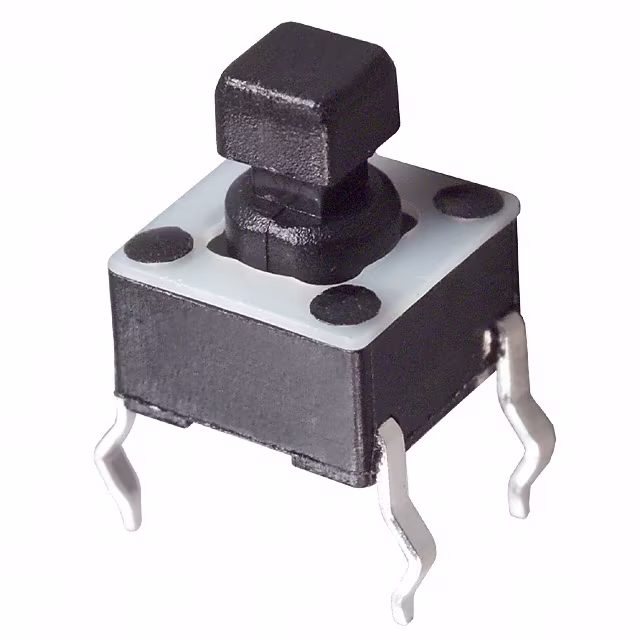

FSMCDASWITCH TACTILE SPST-NO 0.05A 24V |
1,778 |
|
Datasheet | FSMCD | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
1977223-3SWITCH TACTILE SPST-NO 0.05A 24V |
2,032 |
|
Datasheet | FSMJSM | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
|
7-1437565-1SWITCH TACTILE SPST-NO 0.05A 24V |
4,191 |
|
Datasheet | FSMJSMA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1977177-5SWITCH TACTILE SPST-NO 0.05A 24V |
4,413 |
|
Datasheet | FSMRAJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.86mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1571611-2SWITCH TACTILE SPST-NO 0.05A 24V |
3,637 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
|
FSM6JASWITCH TACTILE SPST-NO 0.05A 24V |
3,463 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

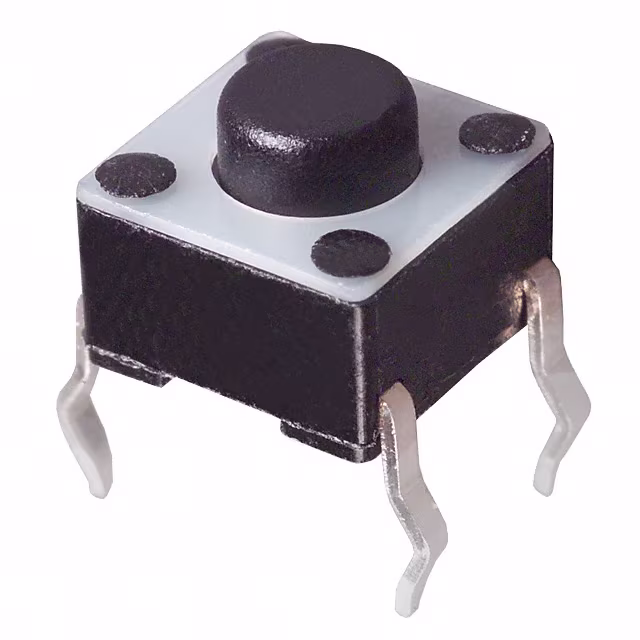

FSM4JSWITCH TACTILE SPST-NO 0.05A 24V |
4,417 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

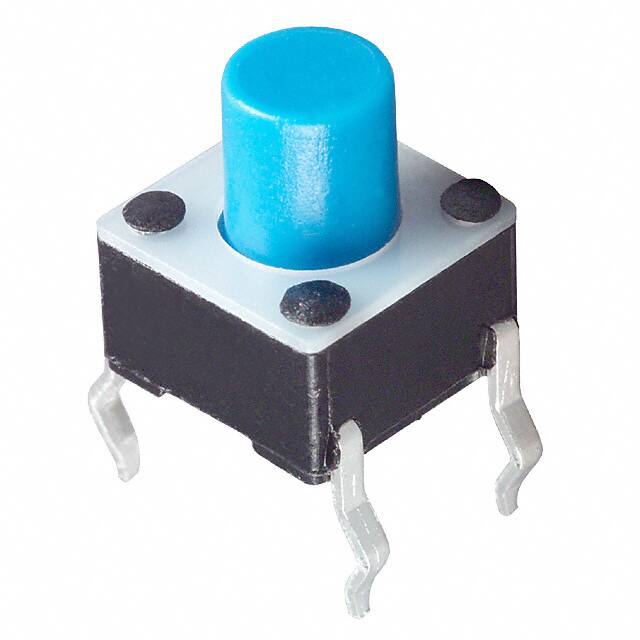

FSM6JSWITCH TACTILE SPST-NO 0.05A 24V |
2,694 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
