Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8-1437565-1SWITCH TACTILE SPST-NO 0.02A 15V |
601 |
|
Datasheet | FSMCT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 85°C |
|

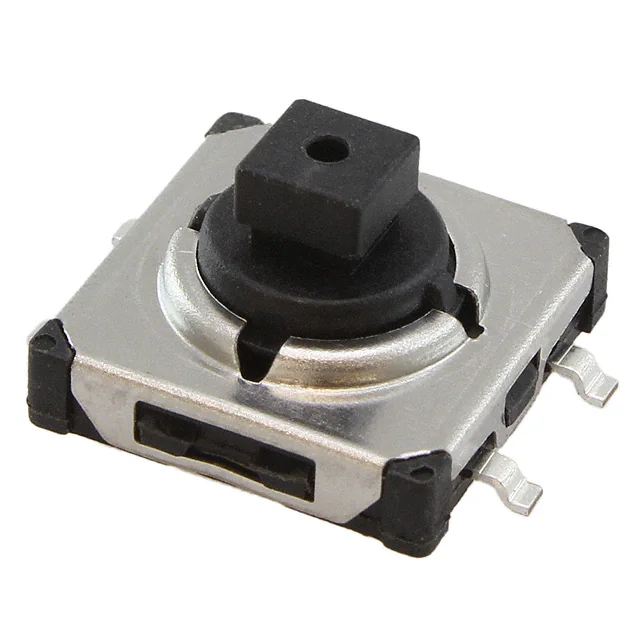

1571217-3SWITCH TACTILE SPST-NO 0.05A 24V |
873 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
2-1825910-8SWITCH TACTILE SPST-NO 0.05A 24V |
3,559 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|

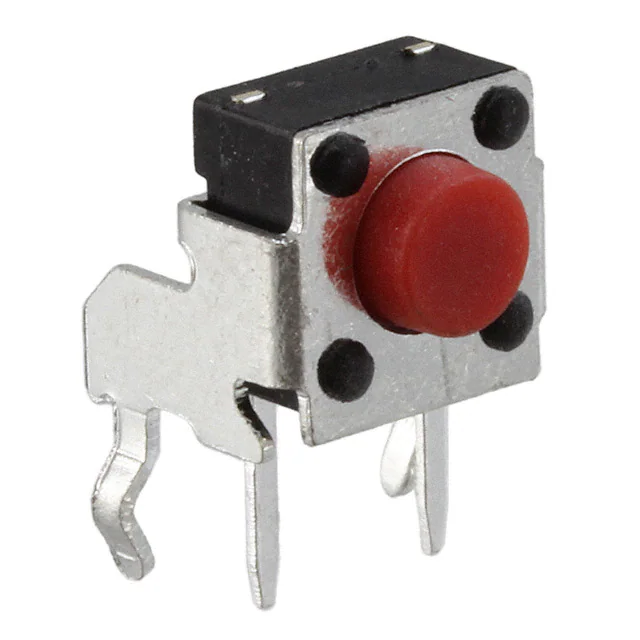

1825027-6SWITCH TACTILE SPST-NO 0.05A 24V |
4,807 |
|
Datasheet | FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.86mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|
FSMIJ65BW04SWITCH TACTILE SPST-NO 0.05A 12V |
1,303 |
|
Datasheet | FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, White | - | 520gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
1571185-1SWITCH TACTILE SPST-NO 0.05A 12V |
2,201 |
|
Datasheet | FSMCD | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
FSM4JARTSWITCH TACTILE SPST-NO 0.05A 24V |
3,425 |
|
Datasheet | FSMJRT | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 105°C |
|
|
1825910-1SWITCH TACTILE SPST-NO 0.05A 24V |
4,335 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
|
3-1825910-2SWITCH TACTILE SPST-NO 0.05A 24V |
3,386 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 17.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 85°C |
|
|
1825910-8SWITCH TACTILE SPST-NO 0.05A 12V |
2,362 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 520gf | - | - | -40°C ~ 105°C |
