Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825208-1SWITCH TACTILE SPST-NO 0.05A 24V |
4,147 |
|
Datasheet | - | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.45mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

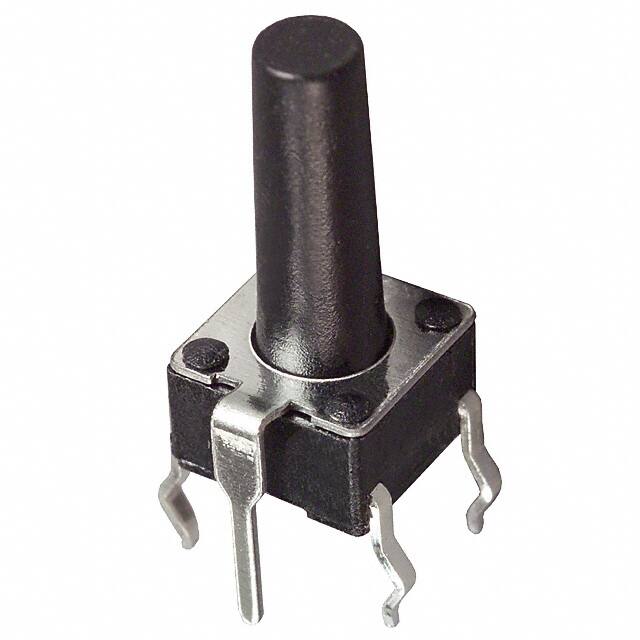

FSM13JSWITCH TACTILE SPST-NO 0.05A 24V |
2,652 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|

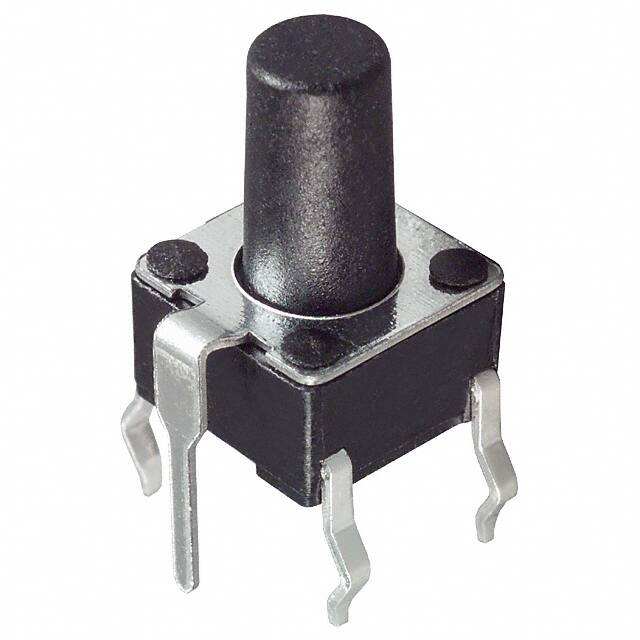

FSM7JSWITCH TACTILE SPST-NO 0.05A 24V |
1,566 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|

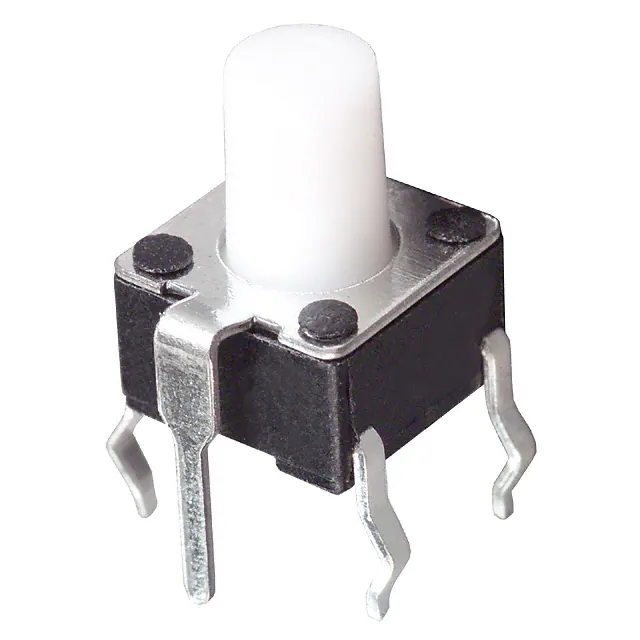

FSM11JSWITCH TACTILE SPST-NO 0.05A 24V |
4,163 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|
|
1571621-1SWITCH TACTILE SPST-NO 0.05A 24V |
2,103 |
|
Datasheet | FSM4LP | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 85°C |
|
|
FSMRA2JASWITCH TACTILE SPST-NO 0.05A 24V |
2,506 |
|
Datasheet | FSMRAJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.86mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 105°C |
|
|
FSMRA7JSWITCH TACTILE SPST-NO 0.05A 24V |
4,159 |
|
Datasheet | FSMRAJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 11.85mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

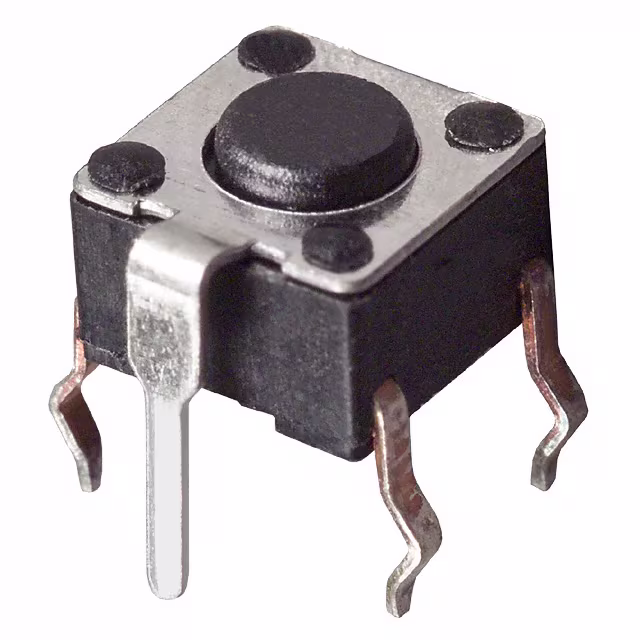

FSM1JSWITCH TACTILE SPST-NO 0.05A 24V |
1,455 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
FSMRA3JSWITCH TACTILE SPST-NO 0.05A 24V |
4,040 |
|
Datasheet | FSMRAJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
FSMSWITCH TACTILE SPST-NO 0.05A 12V |
1,384 |
|
Datasheet | FSM | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
