Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

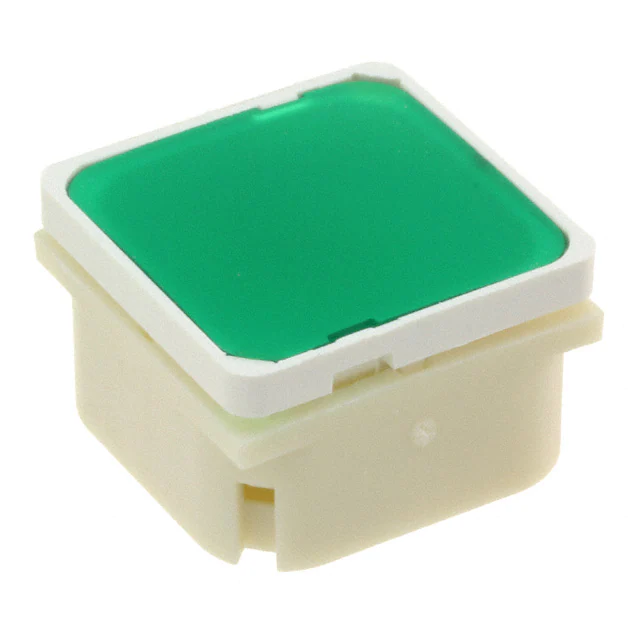

3.14.002.633/0000SWITCH TACTILE SPST-NO 0.1A 35V |
1,176 |
|
Datasheet | RF19H | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
1.14.002.116/0000SWITCH TACTILE SPST-NO 0.1A 35V |
4,609 |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.80mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 550gf | - | Tactile Feedback | -40°C ~ 85°C |
|
3.14.100.801/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,251 |
|
Datasheet | RF15R | Box | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Round Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|

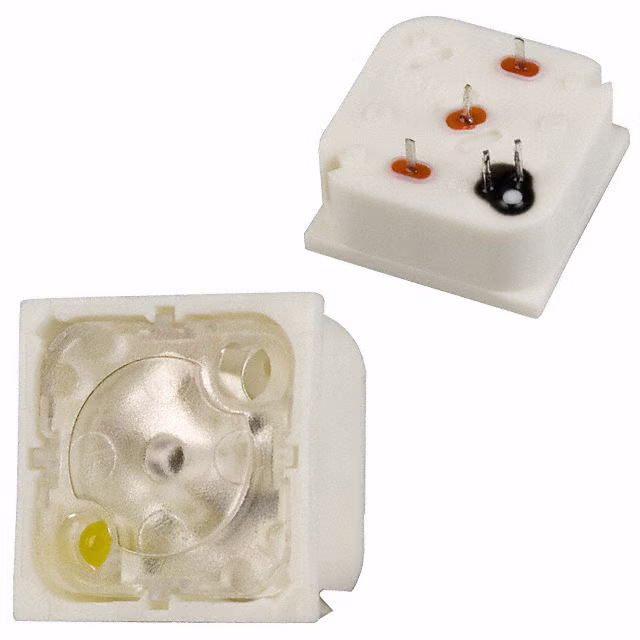

3.14.001.033/0000SWITCH TACTILE SPST-NO 0.1A 42V |
4,792 |
|
Datasheet | RF19 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Yellow | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
3.14.002.026/0000SWITCH TACTILE SPST-NO 0.25A 35V |
3,594 |
|
Datasheet | RF19 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
3.14.002.684/0000SWITCH TACTILE SPST-NO 0.1A 35V |
3,596 |
|
Datasheet | RF19H | Box | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, White | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|

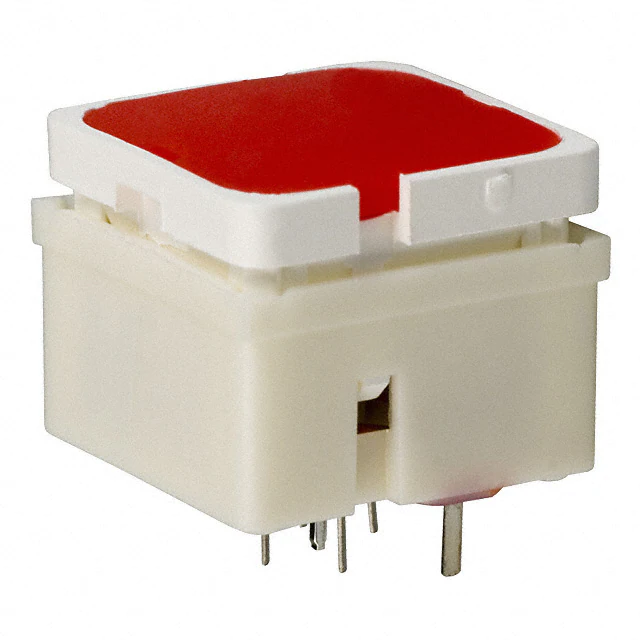

3.14.200.731/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,212 |
|
Datasheet | RF15H | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.002.632/0000SWITCH TACTILE SPST-NO 0.1A 35V |
4,616 |
|
Datasheet | RF19H | Box | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
1.14100.0130000SWITCH TACTILE SPST-NO 0.1A 42V |
1,054 |
|
Datasheet | RACON 8 H | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Plunger for Cap | Surface Mount | 6.60mm | - | Top Actuated | Gull Wing | 7.60mm x 7.60mm | Non-Illuminated | - | - | 250gf | - | Tactile Feedback | -40°C ~ 80°C |
|
1.14.012.918/0000SWITCH TACTILE SPST-NO 0.1A 35V |
3,456 |
|
- |
RACON 12 S | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 4.96mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 1020gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 90°C |
