Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.14.012.501/0000SWITCH TACTILE SPST-NO 0.1A 35V |
718 |
|
Datasheet | RACON 12 S | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 4.96mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 816gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 90°C |
|

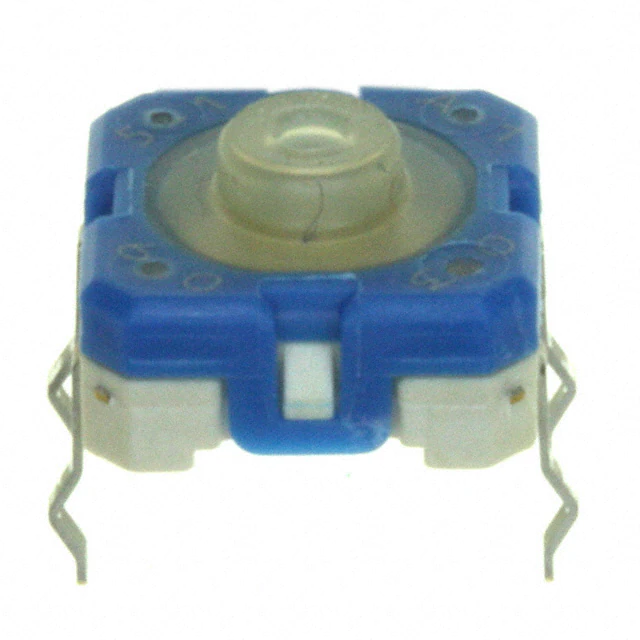

1.14.100.501/0000SWITCH TACTILE SPST-NO 0.1A 42V |
438 |
|
Datasheet | RACON 8 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole | 4.90mm | - | Top Actuated | PC Pin | 8.40mm x 8.40mm | Non-Illuminated | - | - | 330gf | - | - | -40°C ~ 80°C |
|

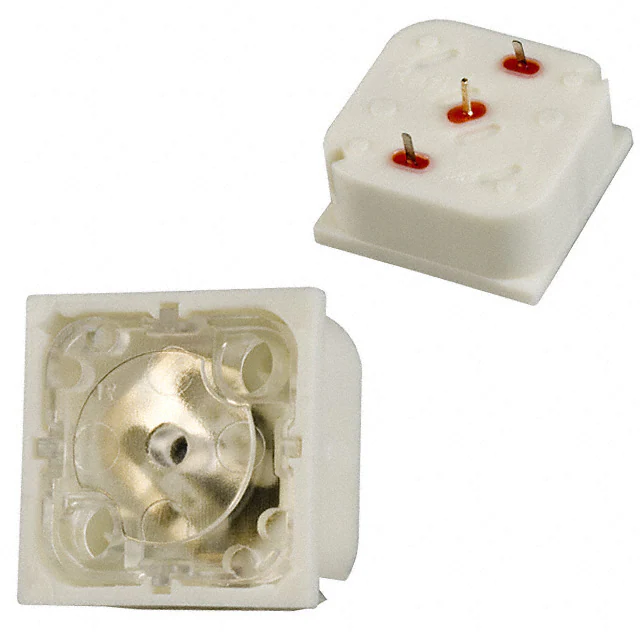

3.14.001.006/0000SWITCH TACTILE SPST-NO 0.25A 50V |
254 |
|
Datasheet | RF19 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 50VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Non-Illuminated | - | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
|
1.14.205.111/0000SWITCH TACT DPST-NO/NC 0.1A 35V |
1,326 |
|
Datasheet | MICON 5 | Tape & Reel (TR) | Active | DPST-NO/NC | On-Mom, Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 3.85mm | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | - | - | 816gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
3.14.100.501/0000SWITCH TACTILE SPST-NO 0.1A 35V |
236 |
|
Datasheet | RF15R | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Round Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|
|
1.14.205.101/0000SWITCH TACT DPST-NO/NC 0.1A 35V |
481 |
|
Datasheet | MICON 5 | Tape & Reel (TR) | Active | DPST-NO/NC | On-Mom, Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 3.85mm | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
3.14.200.022/0000SWITCH TACTILE SPST-NO 0.25A 35V |
146 |
|
Datasheet | RF15 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|

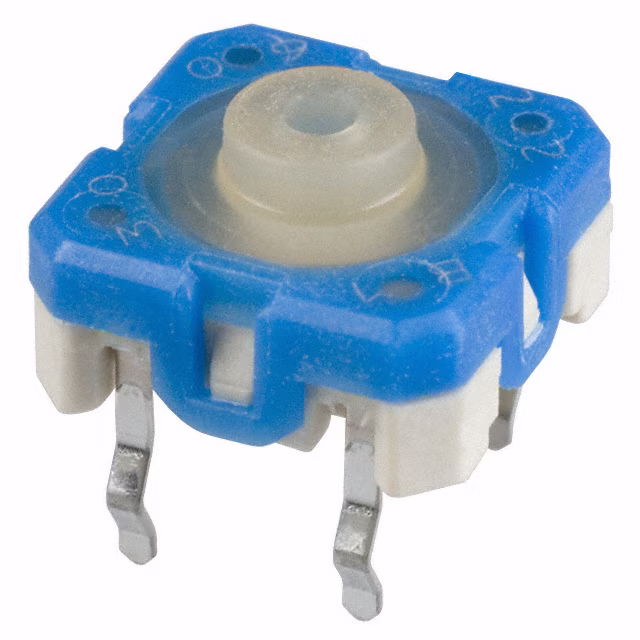

1.14.100.502/0000SWITCH TACTILE SPST-NO 0.1A 42V |
5,344 |
|
Datasheet | RACON 8 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole | 4.90mm | - | Top Actuated | PC Pin | 8.40mm x 8.40mm | Non-Illuminated | - | - | 330gf | - | - | -40°C ~ 80°C |
|

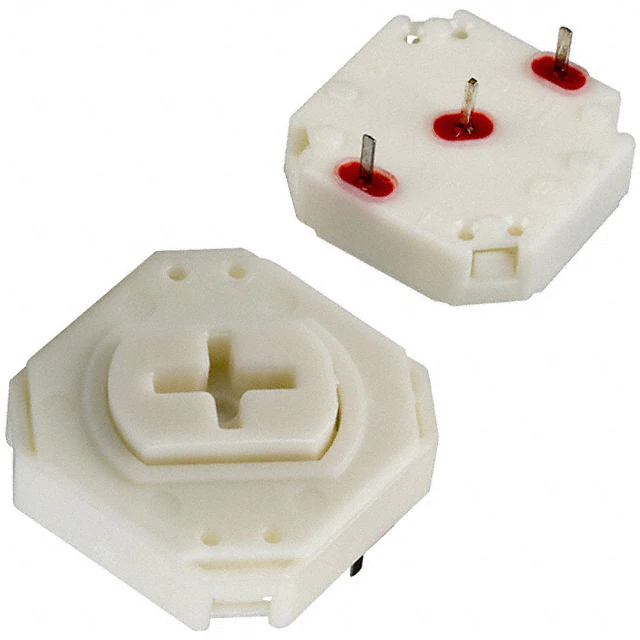

3.14.100.601/0000SWITCH TACTILE SPST-NO 0.1A 35V |
455 |
|
Datasheet | RF15N | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Plunger for Cap | Through Hole | 6.20mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|

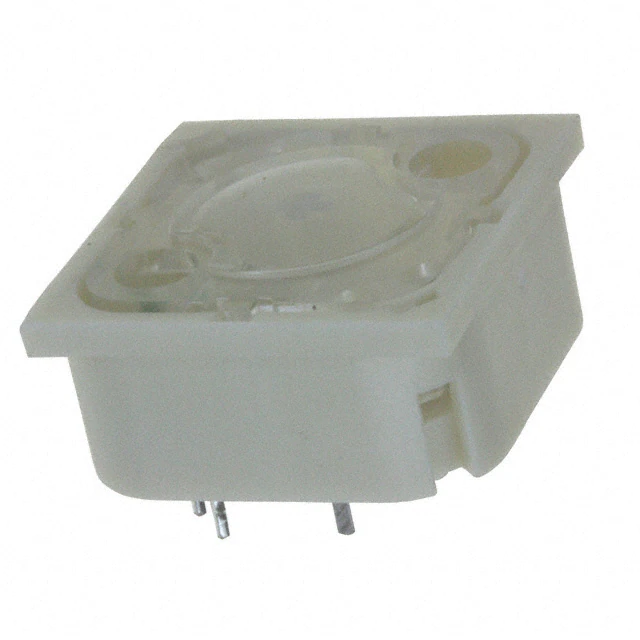

3.14.001.032/0000SWITCH TACTILE SPST-NO 0.1A 42V |
3,743 |
|
Datasheet | RF19 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
