Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

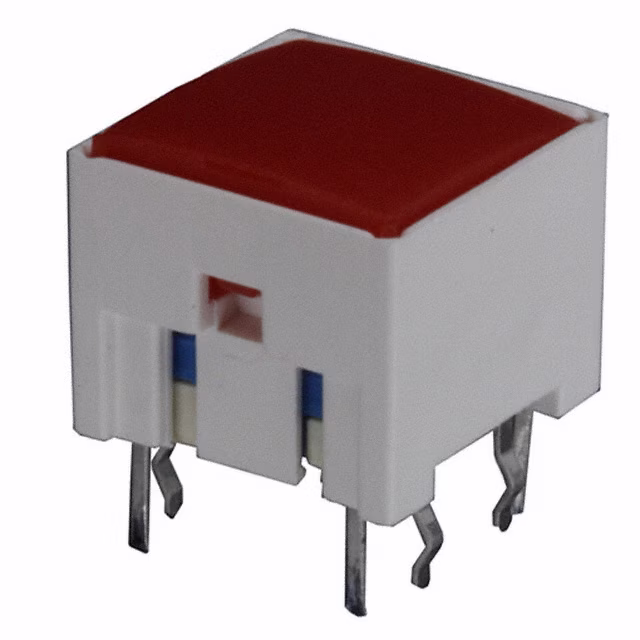

1.14.001.551/0000SWITCH TACTILE SPST-NO 0.1A 42V |
103 |
|
Datasheet | RACON 12 I | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 11.35mm x 11.35mm | Illuminated | LED, Red | 1.8 VDC | 330gf | - | - | -40°C ~ 80°C |
|

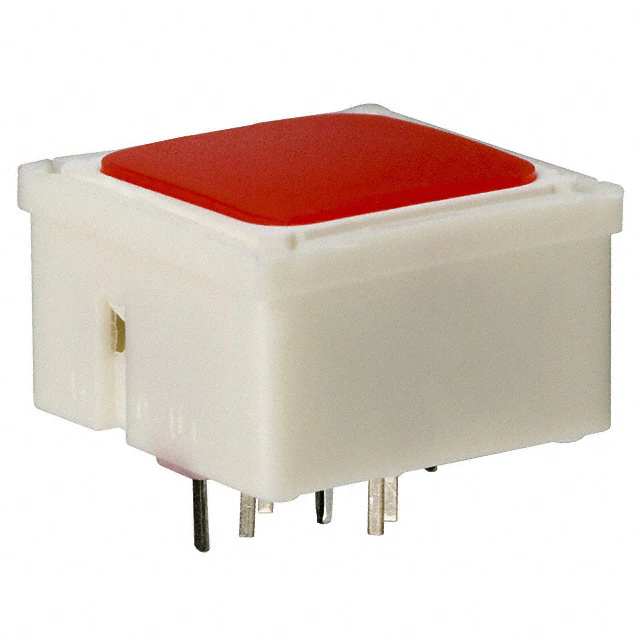

3.14.200.011/0000SWITCH TACTILE SPST-NO 0.1A 35V |
122 |
|
Datasheet | RF15 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|

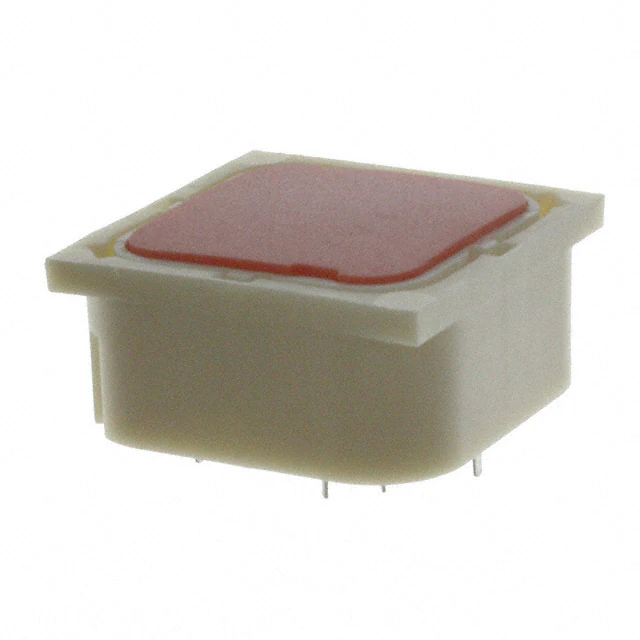

3.14.002.011/0000SWITCH TACTILE SPST-NO 0.1A 42V |
275 |
|
Datasheet | RF19 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Red | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|

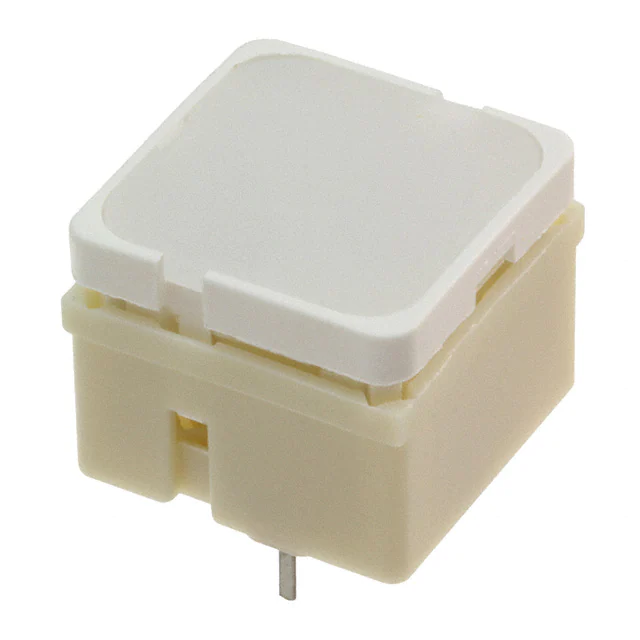

3.14.200.735/0000SWITCH TACTILE SPST-NO 0.1A 35V |
148 |
|
Datasheet | RF15H | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, White | - | 296gf | - | - | -25°C ~ 70°C |
|
1.14.002.106/0000SWITCH TACTILE SPST-NO 0.1A 35V |
480 |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.80mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 300gf | - | Tactile Feedback | -40°C ~ 85°C |
|
|
1.14.002.016/0000SWITCH TACTILE SPST-NO 0.1A 35V |
394 |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.80mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 850gf | - | Tactile Feedback | -40°C ~ 85°C |
|
1.14.005.016/0000SWITCH TACTILE SPST-NO 0.1A 35V |
102 |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 1224gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.113/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,022 |
|
Datasheet | MICON 5 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 3.45mm | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | - | - | 816gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.103/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,066 |
|
Datasheet | MICON 5 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 3.45mm | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.101/0000SWITCH TACTILE SPST-NO 0.1A 35V |
1,884 |
|
Datasheet | MICON 5 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 3.85mm | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
