Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4FTH901SWITCH TACTILE SPST-NO 0.05A 24V |
882 |
|
Datasheet | Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Blue | 3.35 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|

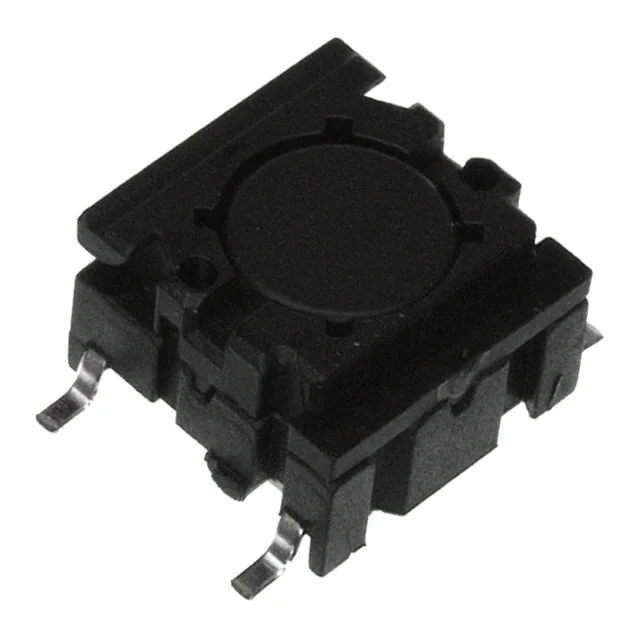

3ASH9SWITCH TACTILE SPST-NO 0.05A 24V |
10,095 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GSH93582SWITCH TACTILE SPST-NO 0.05A 24V |
1,948 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Red | 2 VDC | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

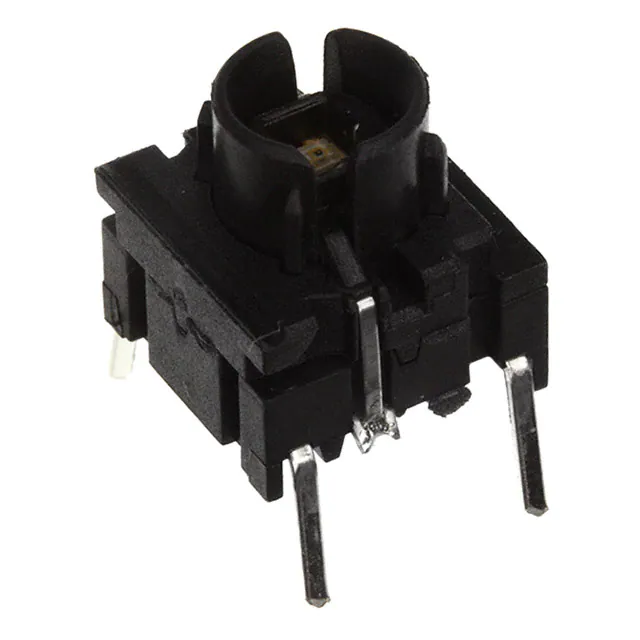

4FTH942SWITCH TACTILE SPST-NO 0.05A 24V |
263 |
|
Datasheet | Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|
5GSH93542SWITCH TACTILE SPST-NO 0.05A 24V |
3,849 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2 VDC | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3FTH940SWITCH TACTILE SPST-NO 0.05A 24V |
1,246 |
|
Datasheet | Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

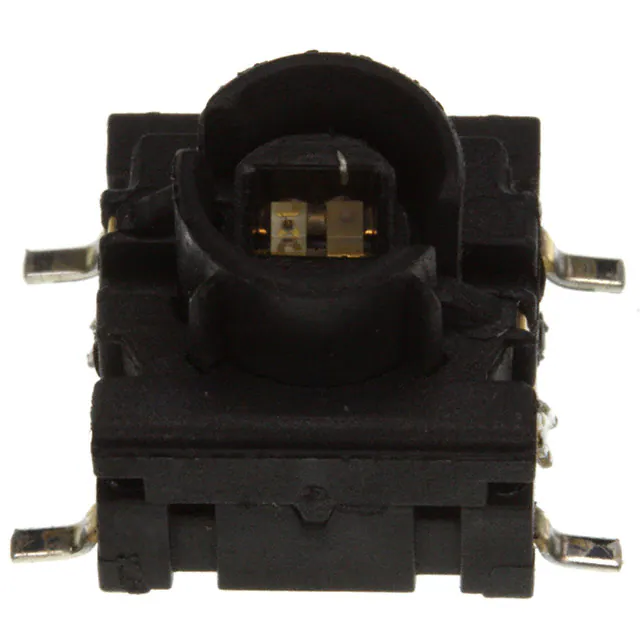

4FSH98222SWITCH TACTILE SPST-NO 0.05A 24V |
712 |
|
Datasheet | Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 10.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Green/Red | 2.0, 2.2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|
3FTH946SWITCH TACTILE SPST-NO 0.05A 24V |
323 |
|
Datasheet | Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

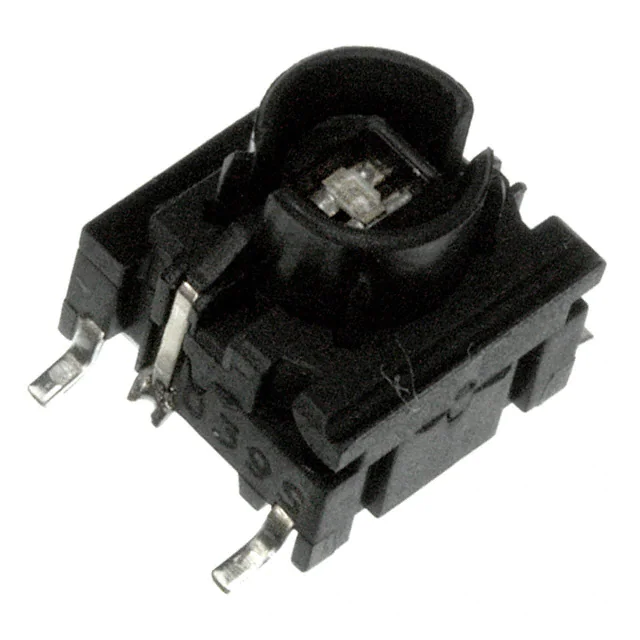

4FSH901SWITCH TACTILE SPST-NO 0.05A 24V |
2,572 |
|
Datasheet | Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 10.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Blue | 3.35 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|
6CJ2NOPRSWITCH TACTILE DPST-NO 0.05A 24V |
758 |
|
Datasheet | Dualmec™ 6C | Tape & Reel (TR) | Active | DPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 8.00mm x 8.00mm | Non-Illuminated | - | - | 255gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
