Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5GTH935SWITCH TACTILE SPST-NO 0.05A 24V |
20,124 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GSH935SWITCH TACTILE SPST-NO 0.05A 24V |
11,290 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GTH920SWITCH TACTILE SPST-NO 0.05A 24V |
5,012 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GSH920SWITCH TACTILE SPST-NO 0.05A 24V |
1,563 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

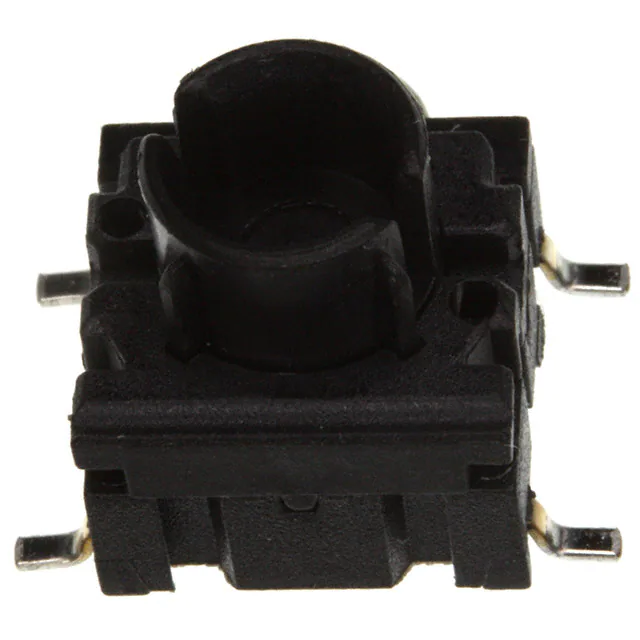

3FSH9SWITCH TACTILE SPST-NO 0.05A 24V |
96,856 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 10.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3CSH9RSWITCH TACTILE SPST-NO 0.05A 24V |
50,416 |
|
Datasheet | Multimec® 3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3FTH9RASSWITCH TACTILE SPST-NO 0.05A 24V |
71,971 |
|
Datasheet | Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

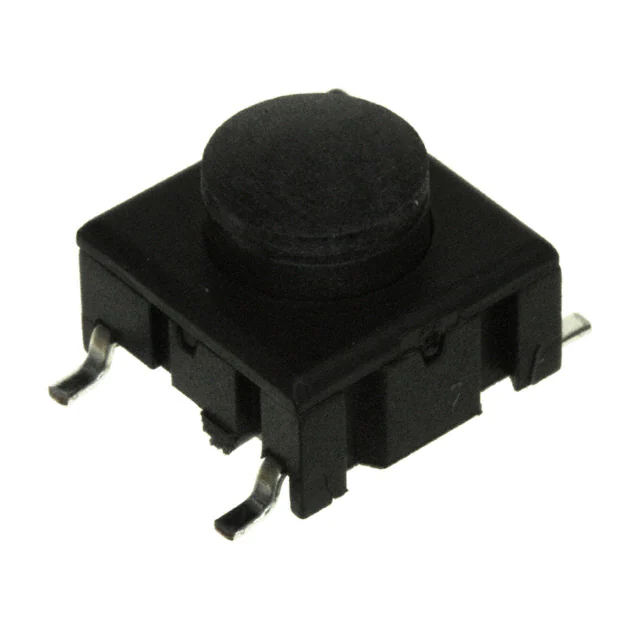

3ESH9-08.0SWITCH TACTILE SPST-NO 0.05A 24V |
22,129 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

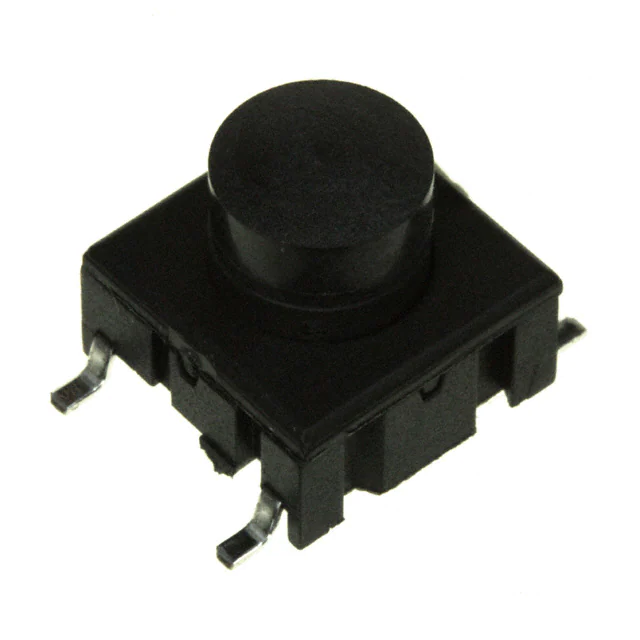

3ESH9-09.5SWITCH TACTILE SPST-NO 0.05A 24V |
9,326 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

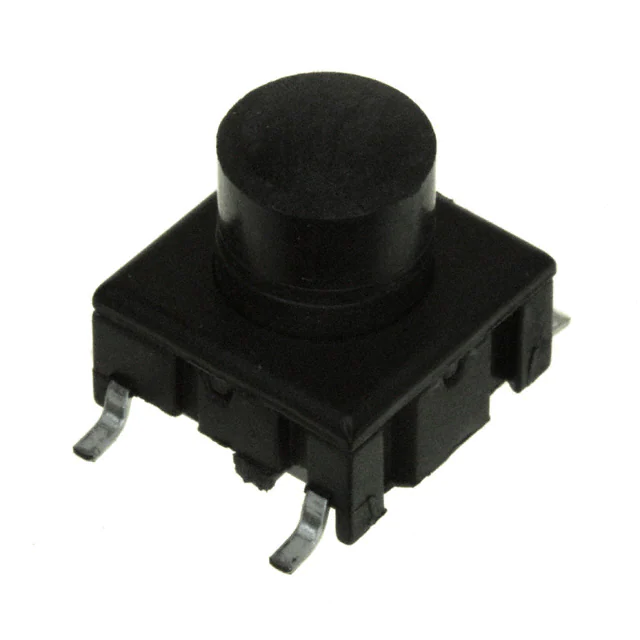

3ESH9-10.4SWITCH TACTILE SPST-NO 0.05A 24V |
5,791 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 10.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
