Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5ETH935SWITCH TACTILE SPST-NO 0.05A 24V |
49,837 |
|
Datasheet | 5G | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

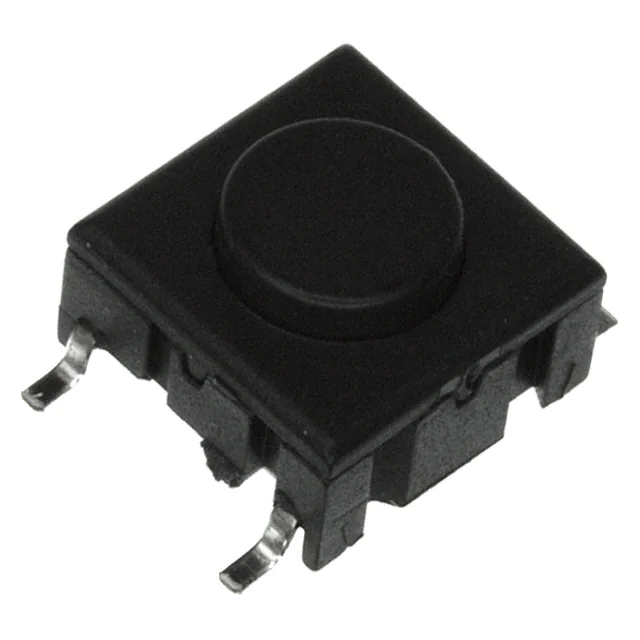

3CSH9SWITCH TACTILE SPST-NO 0.05A 24V |
3,028 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
6CJ1NOPRSWITCH TACTILE SPST-NO 0.05A 24V |
6,107 |
|
Datasheet | Ultramec™6C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 8.00mm x 8.00mm | Non-Illuminated | - | - | 370gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
3ETH9-08.0SWITCH TACTILE SPST-NO 0.05A 24V |
37,980 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3CTH9SWITCH TACTILE SPST-NO 0.05A 24V |
44,020 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5ESH920SWITCH TACTILE SPST-NO 0.05A 24V |
27,112 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

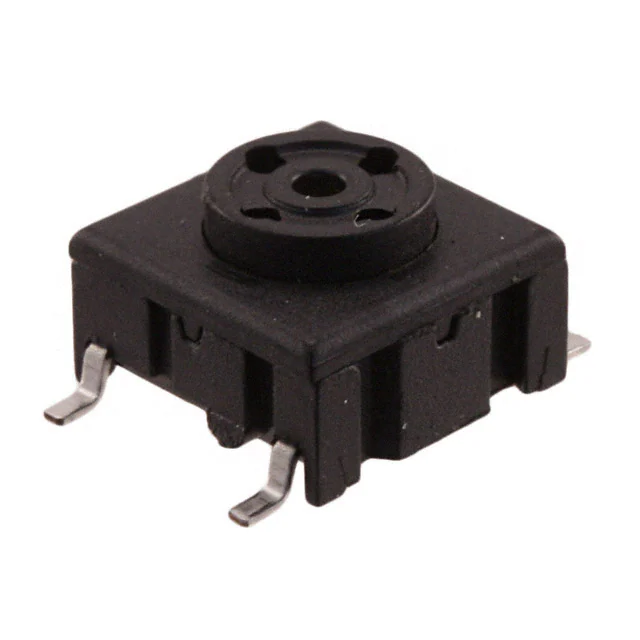

5ESH935SWITCH TACTILE SPST-NO 0.05A 24V |
15,037 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5ESH965SWITCH TACTILE SPST-NO 0.05A 24V |
6,965 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 650gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3ESH9SWITCH TACTILE SPST-NO 0.05A 24V |
6,537 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3FTH9SWITCH TACTILE SPST-NO 0.05A 24V |
40,662 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
