Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS014R05C3SMA10RTSWITCH TACTILE SPST-NO 0.05A 12V |
7,163 |
|
Datasheet | RS, COMAX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | - |
|
EVQ-P7D01KSWITCH TACTILE SPST-NO 0.05A 12V |
1,255 |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | J Lead | 4.30mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
|
PTS645SL70SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,401 |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
|
LS79C6D5-TSWITCH TACTILE SPST-NO 0.02A 12V |
5,000 |
|
- |
LS79C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | - | IP67 - Dust Tight, Waterproof | - | - |
|
|
NCF12400NSWITCH TACT SPDT-NC/NO 0.1A 50V |
19,700 |
|
Datasheet | NC | Bulk | Active | SPDT-NC/NO | Off-Mom | 0.1A @ 50VDC | Snap Dome | Surface Mount | 0.73mm | - | Top Actuated | SMD (SMT) Tab | 12.00mm x 12.00mm | Non-Illuminated | - | - | 400gf | - | - | -45°C ~ 100°C |
|
EVQ-P6YB55SWITCH TACTILE SPST-NO 0.02A 15V |
18,935 |
|
Datasheet | EVQP6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.58mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 240gf | Dust Proof | Push Plate | -20°C ~ 70°C |
|
|
EVQ-P6LB55SWITCH TACTILE SPST-NO 0.02A 15V |
9,655 |
|
Datasheet | EVQP6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.58mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 160gf | Dust Proof | Push Plate | -20°C ~ 70°C |
|
|
95C06B3GWRTSWITCH TACTILE SPST-NO 0.05A 12V |
1,395 |
|
Datasheet | 95C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
EVQ-9P6B40SWITCH TACTILE SPST-NO 0.02A 15V |
7,214 |
|
Datasheet | EVQ9P6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Flush | Surface Mount | 0.43mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 240gf | - | - | -20°C ~ 70°C |
|

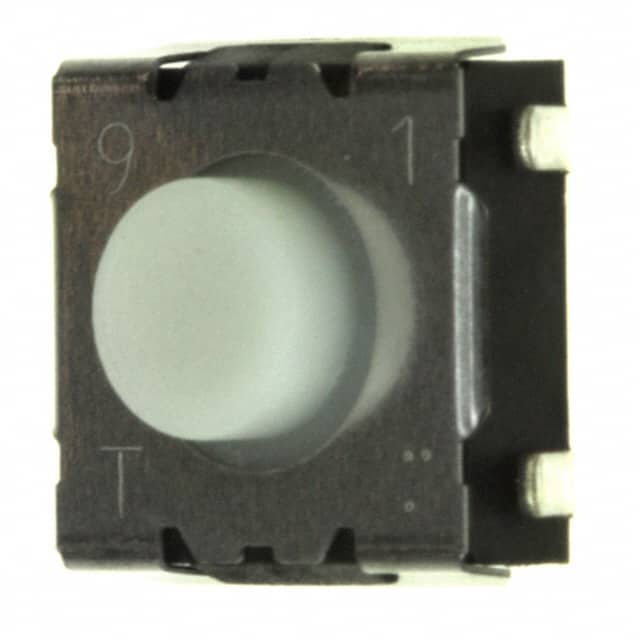

EVQ-QXS01WSWITCH TACTILE SPST-NO 0.02A 15V |
2,462 |
|
Datasheet | EVQQX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
KSFI0M81270SHLFTSWITCH TACTILE SPST-NO 0.05A 32V |
9,416 |
|
Datasheet | KSFI | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
EVQ-QXK03WSWITCH TACTILE SPST-NO 0.02A 15V |
4,934 |
|
Datasheet | EVQQX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
LS160C4G-TSWITCH TACTILE SPST-NO 0.02A 12V |
4,841 |
|
Datasheet | LS160C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.60mm | Non-Illuminated | - | - | 245gf | IP67 - Dust Tight, Waterproof | - | - |
|
|
PTS645SK13SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
9,782 |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
KSEK43GLFSSWITCH TACTILE SPST-NO 0.05A 32V |
20,564 |
|
Datasheet | KSE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 225gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
KSEK43JLFSSWITCH TACTILE SPST-NO 0.05A 32V |
7,136 |
|
Datasheet | KSE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 225gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
KSFI0M41270SHLFTSWITCH TACTILE SPST-NO 0.05A 32V |
13,716 |
|
Datasheet | KSFI | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVP-AHBG6ASWITCH TACT SPST-NO 0.02A 15V |
7,035 |
|
Datasheet | EVPAH | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Flush | Surface Mount | 0.59mm | - | Top Actuated | J Lead | 4.10mm x 4.00mm | Non-Illuminated | - | - | 90/200gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
KSC261JLFSSWITCH TACTILE |
1,958 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EVP-AHCG6ASWITCH TACT SPST-NO 0.02A 15V |
5,886 |
|
Datasheet | EVPAH | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Flush | Surface Mount | 0.59mm | - | Top Actuated | J Lead | 4.10mm x 4.00mm | Non-Illuminated | - | - | 100/260gf | - | Grounding Pin | -20°C ~ 70°C |
