Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JL15SKSCCP2SWITCH TACTILE SPST-NO 0.05A 24V |
2,016 |
|
Datasheet | JL | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 7.85mm | - | Top Actuated | PC Pin | 22.00mm x 22.00mm | Illuminated | LED, Red | 3.9 VDC | 300gf | - | - | -25°C ~ 50°C |
|
EVQ-21507KSWITCH TACTILE SPST-NO 0.02A 15V |
2,614 |
|
Datasheet | EVQ2 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
PTS815SJG250SMTRLFSTACT |
197,350 |
|
Datasheet | PTS815 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 400gf | IP40 | - | -40°C ~ 90°C |
|
|
GSPTS004001SWITCH TACTILE SPST-NO 0.05A 12V |
6,000 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | IP40 | - | -20°C ~ 70°C |
|
|
GSPTS004102SWITCH TACTILE SPST-NO 0.05A 12V |
6,000 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -20°C ~ 70°C |
|
|
FSM2JSMLSWITCH TACTILE SPST-NO 0.05A 24V |
3,400 |
|
Datasheet | FSMJSML | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
FSM2JRTSWITCH TACTILE SPST-NO 0.05A 24V |
15,275 |
|
Datasheet | FSMJRT | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 105°C |
|
|
PTS645SM43SMTR92LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,000 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1977120-6SWITCH TACTILE SPST-NO 0.05A 24V |
4,156 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

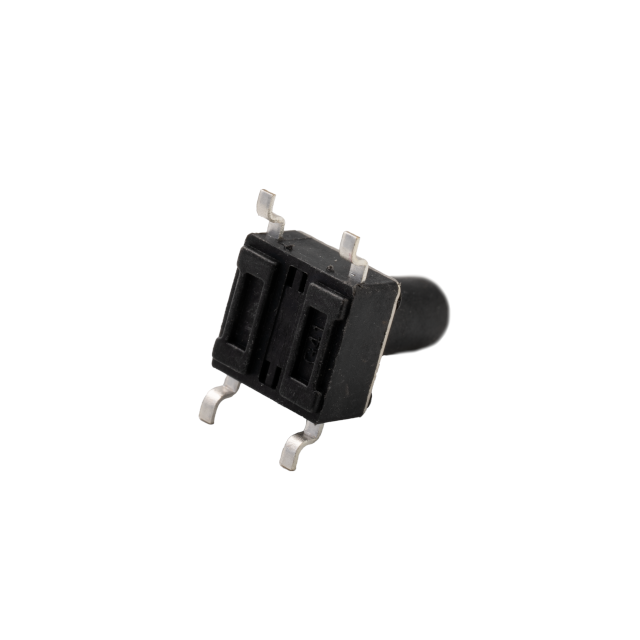

RTS1216DSM-TRNLSWITCH TACTILE SPST-NO 0.05A 12V |
2,998 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 120gf | - | - | -20°C ~ 70°C |
|
|
PTS645SM70SMTR92LFSSWITCH TACTILE |
15,400 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PTS645VK582LFSSWITCH TACTILE |
3,962 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1977120-2SWITCH TACTILE SPST-NO 0.05A 24V |
1,583 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
TS06-667-34-R-260-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
2,985 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
TS06-667-25-BK-100-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
2,984 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
1-1977120-0SWITCH TACTILE SPST-NO 0.05A 24V |
2,447 |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1571625-3SWITCH TACTILE SPST-NO 0.05A 12V |
2,484 |
|
Datasheet | Extended Life | Box | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
FSM1LPASSWITCH TACTILE SPST-NO 0.05A 24V |
4,082 |
|
Datasheet | FSM1LP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -40°C ~ 105°C |
|
|
KSC421J70SHLFSTACT |
8,000 |
|
Datasheet | KSC | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 170gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
FSM8JRTSWITCH TACTILE SPST-NO 0.05A 24V |
5,001 |
|
Datasheet | FSMJRT | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 105°C |
