Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

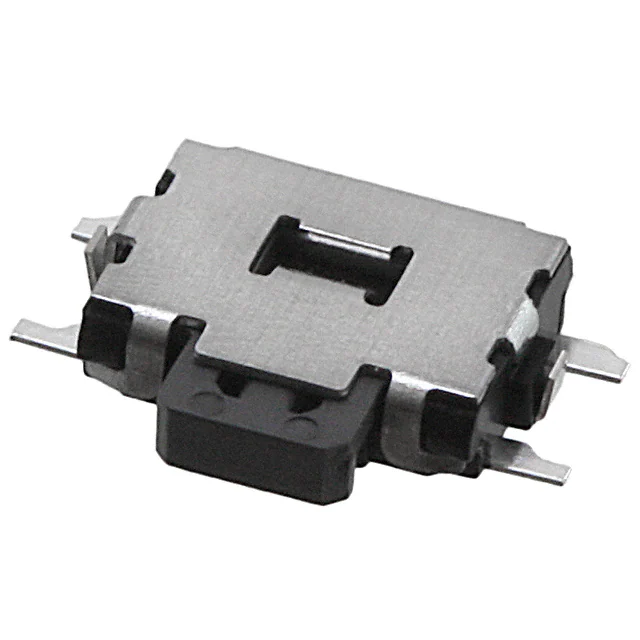

EVP-AJAC1ASWITCH TACT SPST-NO 0.02A 15V |
2,252 |
|
Datasheet | EVPAJ | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.60mm x 3.50mm | Non-Illuminated | - | - | 160/260gf | - | Grounding Pin | -20°C ~ 70°C |
|
TL3302AF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
1,552 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
EVP-AJAE1ASWITCH TACT SPST-NO 0.02A 15V |
4,673 |
|
Datasheet | EVPAJ | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.60mm x 3.50mm | Non-Illuminated | - | - | 160/260gf | - | Grounding Pin | -20°C ~ 70°C |
|
GX25500SWITCH TACTILE SPST-NO 0.1A 50V |
9,800 |
|
Datasheet | GX | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 50VDC | Snap Dome | Surface Mount | 0.89mm | - | Top Actuated | SMD (SMT) Tab | 25.00mm x 25.00mm | Non-Illuminated | - | - | 500gf | - | Tactile/Audible Feedback | -45°C ~ 100°C |
|
TLS A 040J LFSSWITCH TACTILE SPST-NO 0.05A 16V |
14,173 |
|
Datasheet | TLS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Standard | Surface Mount | 3.95mm | - | Top Actuated | J Lead | 8.40mm x 8.00mm | Non-Illuminated | - | - | 407gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 90°C |
|
TLS A 070 T3J LFSSWITCH TACTILE SPST-NO 0.05A 16V |
5,538 |
|
Datasheet | TLS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Standard | Surface Mount | 3.95mm | - | Top Actuated | J Lead | 8.40mm x 8.00mm | Non-Illuminated | - | - | 713gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 90°C |
|
FSMIJ62BA04SWITCH TACTILE SPST-NO 0.05A 12V |
4,337 |
|
Datasheet | FSMIJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Orange | - | 160gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
FSMIJ62BG04SWITCH TACTILE SPST-NO 0.05A 12V |
2,422 |
|
Datasheet | FSMIJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green/Yellow | - | 160gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ61AR04SWITCH TACTILE SPST-NO 0.05A 12V |
2,100 |
|
Datasheet | FSMIJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | - | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
FSMIJ63APG04SWITCH TACTILE SPST-NO 0.05A 12V |
2,235 |
|
- |
FSMIJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green | - | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
FSMIJ61BPG04SWITCH TACTILE SPST-NO 0.05A 12V |
3,875 |
|
- |
FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green | - | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
FSMIJM61BR04SWITCH TACTILE SPST-NO 0.05A 12V |
3,671 |
|
Datasheet | FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | LED, Red | - | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
FSMIJM62BPG04SWITCH TACTILE SPST-NO 0.05A 12V |
1,728 |
|
Datasheet | FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | LED, Green | - | 160gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
FSMIJM61APG04SWITCH TACTILE SPST-NO 0.05A 12V |
4,631 |
|
Datasheet | FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | LED, Green | - | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ65AG04SWITCH TACTILE SPST-NO 0.05A 12V |
4,971 |
|
Datasheet | FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green/Yellow | - | 520gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
KSL1A211LFTSWITCH TACTILE SPST-NO 0.05A 32V |
484 |
|
Datasheet | KSL | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 130gf | IP60 - Dust Tight | Grounding Pin | -40°C ~ 90°C |
|
KSA0A531 LFTRSWITCH TACTILE SPST-NO 0.01A 32V |
567 |
|
Datasheet | KSA | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 500gf | IP60 - Dust Tight | Sealed - Fully | -40°C ~ 125°C |
|
|
TL12-SWST-G1NNSWITCH TACTILE SPST-NO 0.05A 12V |
1,805 |
|
Datasheet | TL12 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 9.00mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green | - | 250gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL12-SWNN-NNNNSWITCH TACTILE SPST-NO 0.05A 12V |
1,506 |
|
Datasheet | TL12 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 8.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 250gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL12-SWS4T-W1NNSWITCH TACTILE SPST-NO 0.05A 12V |
991 |
|
Datasheet | TL12 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | - | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, White | - | 250gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
