Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CES-571423-28PMBSPEAKER 8OHM 2W TOP PORT 100DB |
290 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 2.854" L x 0.906" W (72.50mm x 23.00mm) |
|
|
CES-571423-28PMASPEAKER 8OHM 2W TOP PORT 100DB |
259 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 2.854" L x 0.906" W (72.50mm x 23.00mm) |
|
CLS0571M-L152SPEAKER 8OHM 200MW TOP PORT 89DB |
376 |
|
Datasheet | CLS | Box | Active | Magnetic | Low Profile | 530 Hz ~ 20 kHz | 530Hz | 8 Ohms | 89.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 2.244" Dia (57.00mm) |
|
GA0506MSPEAKER 8OHM 250MW TOP PORT 79DB |
431 |
|
Datasheet | GA | Box | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 500Hz | 8 Ohms | 79.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|

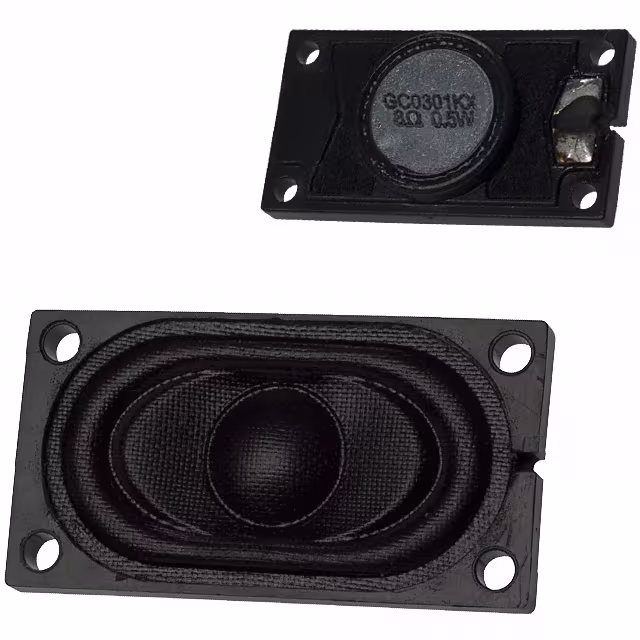

GC0301KSPEAKER 8OHM 500MW TOP PORT 77DB |
669 |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 500Hz | 8 Ohms | 77.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.181" L x 0.630" W (30.00mm x 16.00mm) |
|
|
GA0576MSPEAKER 8OHM 250MW TOP PORT 80DB |
106 |
|
Datasheet | GA | Box | Active | Magnetic | General Purpose | 500 Hz ~ 12 kHz | 500Hz | 8 Ohms | 80.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.244" L x 2.244" W (57.00mm x 57.00mm) |
|
CDS-40304-L1006SPEAKER 4OHM 2W TOP PORT 79DB |
774 |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-703316-28PMSPEAKER 8OHM 2W TOP PORT 102DB |
375 |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 2.756" L x 1.299" W (70.00mm x 33.00mm) |
|
CES-391715-18PM-67SPEAKER 8OHM 1W TOP PORT 92DB |
334 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 880 Hz ~ 6 kHz | 1.1kHz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.260" L x 0.689" W (32.00mm x 17.50mm) |
|

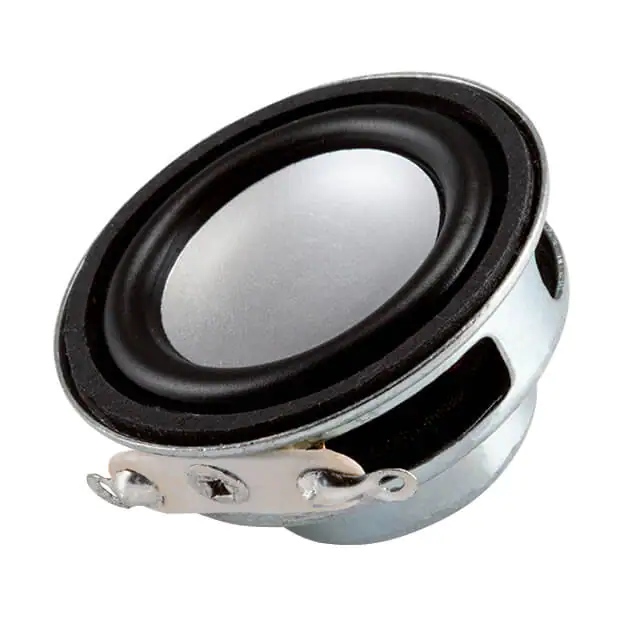

CMS-3150-26SPSPEAKER 6OHM 2W TOP PORT 97DB |
129 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 248 Hz ~ 20 kHz | 310Hz | 6 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Aluminum, Polyurethane (PU) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.220" Dia (31.00mm) |
