Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EG1201ASWITCH SLIDE SPDT 200MA 30V |
4,461 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 5.50mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
EG1206ASWITCH SLIDE SPDT 200MA 30V |
9,268 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG1206SWITCH SLIDE SPDT 200MA 30V |
8,384 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 3.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG2315SWITCH SLIDE DP3T 200MA 30V |
2,273 |
|
Datasheet | EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 3.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

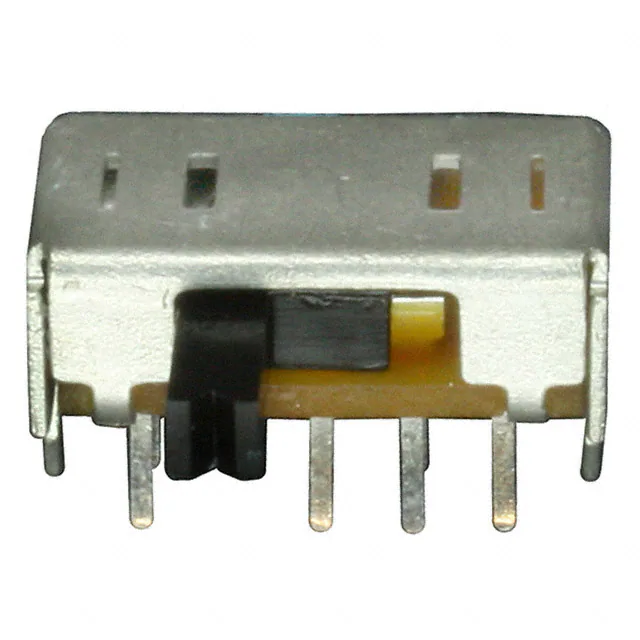

OS203011MA2QP1SWITCH SLIDE DP3T 100MA 12V |
8,412 |
|
Datasheet | OS | Bulk | Active | DP3T | Not Specified | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MHSS1104SWITCH SLIDE SPDT 300MA 6V |
6,530 |
|
Datasheet | MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | Black Actuator |
|
MHSS1105SWITCH SLIDE SPDT 300MA 6V |
5,778 |
|
Datasheet | MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Black Actuator |
|
SLW-1276864-4A-DSWITCH SLIDE SPDT 0.5A 30V |
2,132 |
|
Datasheet | SLW | Box | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 30 V | Standard | 4.00mm | Brass | Silver | Through Hole | PC Pin | - |
|
OS103011MS8QP1CSWITCH SLIDE SP3T 0.1A 12V |
1,360 |
|
Datasheet | OS | Bulk | Active | SP3T | Not Specified | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
EG1270SWITCH SLIDE SPDT 300MA 6V |
1,483 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG2201BSWITCH SLIDE DPDT 200MA 30V |
11,479 |
|
Datasheet | EG | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 9.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

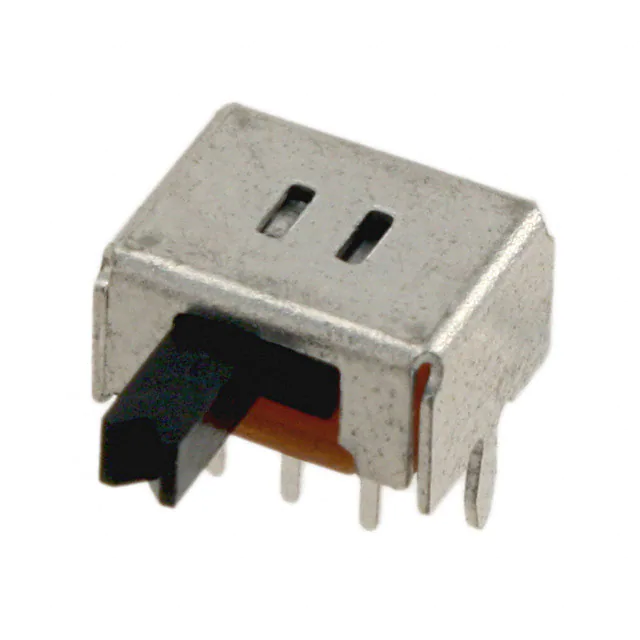

OS202011MA0QN1SWITCH SLIDE DPDT 100MA 12V |
20,559 |
|
Datasheet | OS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

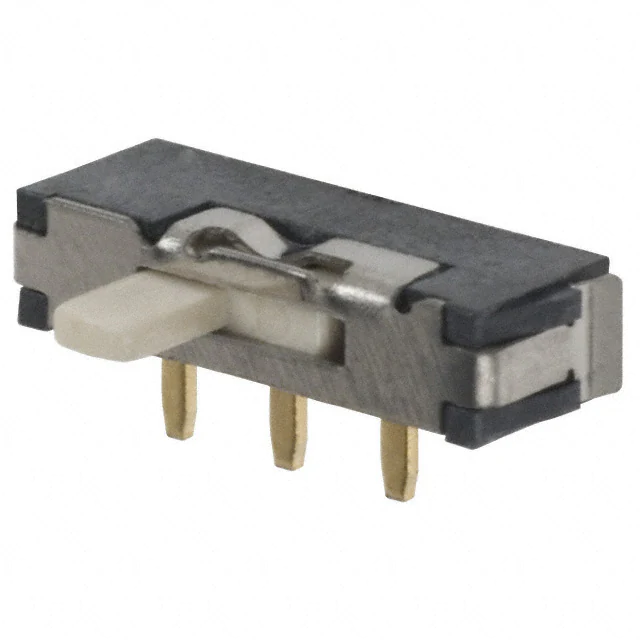

CSS-1210MCSWITCH SLIDE SPDT 100MA 12V |
4,745 |
|
Datasheet | CSS | Tube | Active | SPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
EG1248SWITCH SLIDE SPDT 100MA 12V |
3,130 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EG1271SWITCH SLIDE SPDT 300MA 30V |
3,308 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EG2310SWITCH SLIDE DP3T 200MA 30V |
1,962 |
|
Datasheet | EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
JS102011JAQNSWITCH SLIDE SPDT 300MA 6V |
5,501 |
|
Datasheet | JS | Tape & Reel (TR) | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | Copper Alloy | Silver | Surface Mount, Right Angle | J Lead | - |
|

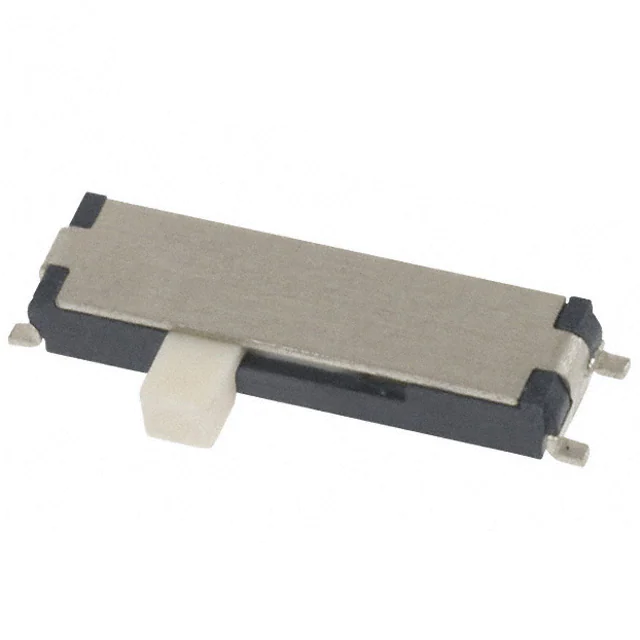

CUS-13TBSWITCH SLIDE SP3T 300MA 4V |
26,301 |
|
Datasheet | CUS | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | On-On-On | 300mA (DC) | - | 4 V | Standard | 1.50mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
EG2315ASWITCH SLIDE DP3T 200MA 30V |
2,370 |
|
Datasheet | EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
MSS-102545-28A-DSWITCH SLIDE SPDT 0.3A 24V |
10,026 |
|
Datasheet | - | Bag | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 24 V | Standard | - | Nickel | Gold | Through Hole | PC Pin | - |
