Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

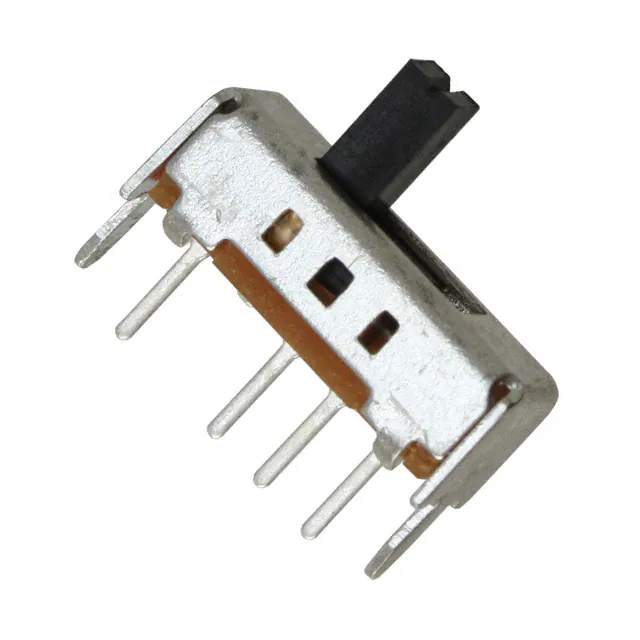

SS-13D16-VG 4 PASWITCH SLIDE SP3T 300MA 30V |
9,203 |
|
Datasheet | SS, COMAX | Bulk | Active | SP3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

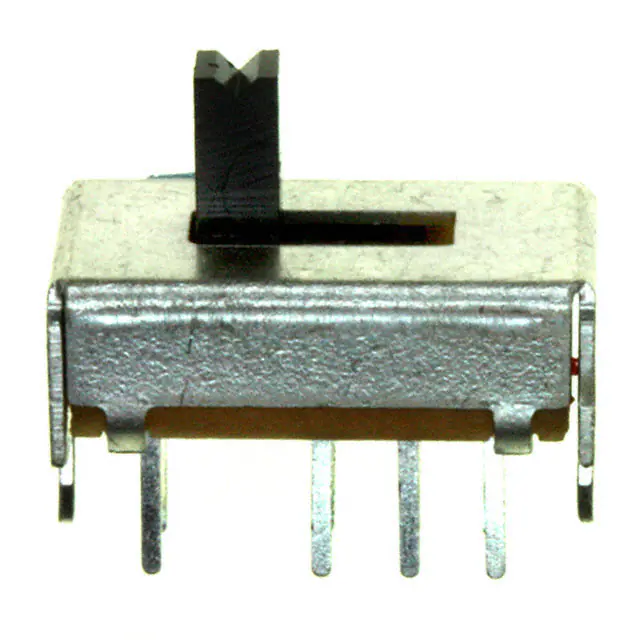

OS203011MS1QP1SWITCH SLIDE DP3T 300MA 30V |
6,053 |
|
Datasheet | OS | Bulk | Active | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

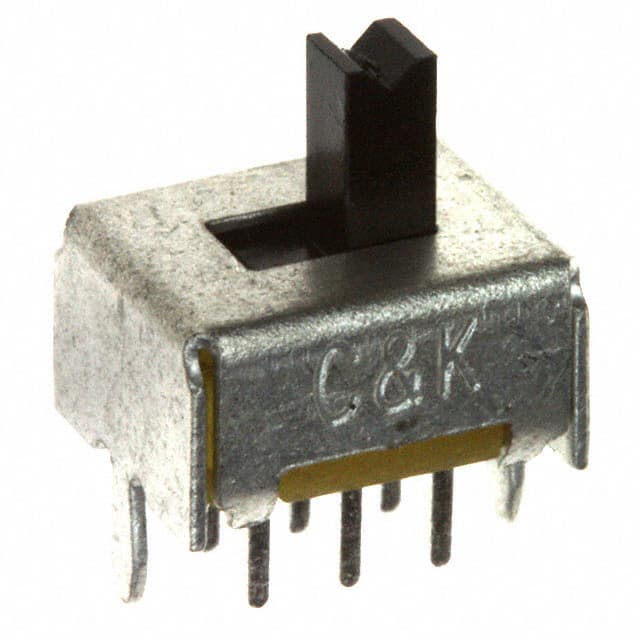

OS202011MS2QS1SWITCH SLIDE DPDT 100MA 12V |
9,939 |
|
Datasheet | OS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

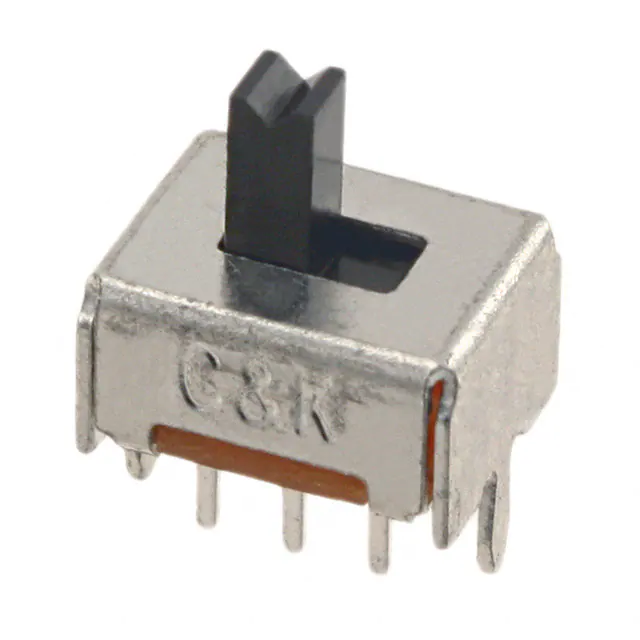

OS202011MS2QN1SWITCH SLIDE DPDT 100MA 12V |
480 |
|
Datasheet | OS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
EG2207SWITCH SLIDE DPDT 200MA 30V |
15,637 |
|
Datasheet | EG | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EG2301SWITCH SLIDE DP3T 200MA 30V |
7,981 |
|
Datasheet | EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 3.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EG2211SWITCH SLIDE DPDT 200MA 30V |
5,591 |
|
Datasheet | EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG2215SWITCH SLIDE DPDT 200MA 30V |
4,382 |
|
Datasheet | EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 3.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG2214SWITCH SLIDE DPDT 300MA 30V |
3,962 |
|
Datasheet | EG | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 4.20mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG2210SWITCH SLIDE DPDT 200MA 30V |
2,235 |
|
Datasheet | EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG2301BSWITCH SLIDE DP3T 200MA 30V |
1,975 |
|
Datasheet | EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 9.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

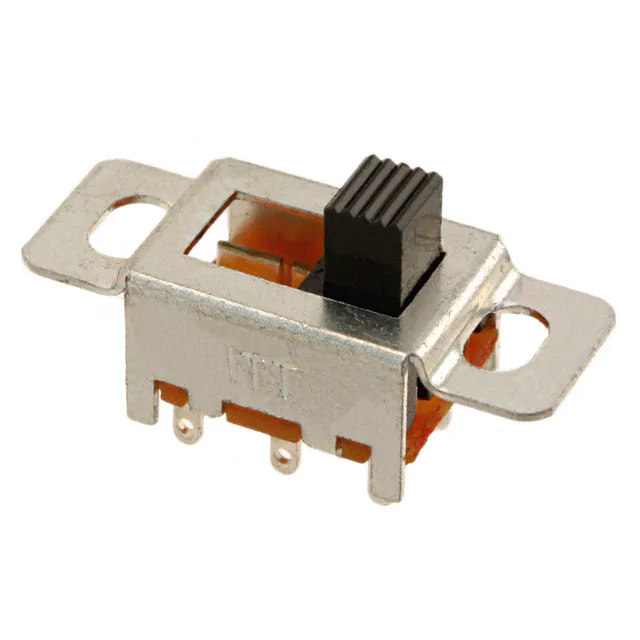

OS203013MT7QN1SWITCH SLIDE DPDT 300MA 30V |
797 |
|
Datasheet | OS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-Off-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

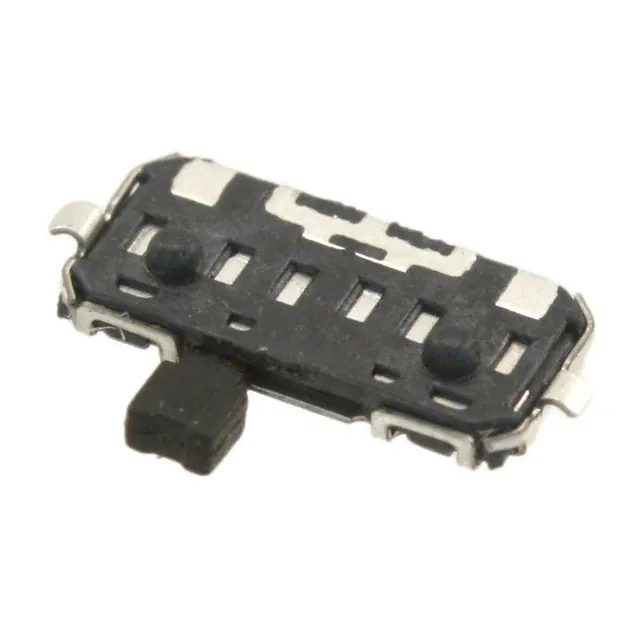

JS102000SAQNSWITCH SLIDE SPDT 1MA 5V |
19,348 |
|
Datasheet | JS | Tape & Reel (TR) | Active | SPDT | Not Specified | On-On | 1mA (DC) | - | 5 V | Standard | 1.50mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
EG2211ASWITCH SLIDE DPDT 200MA 30V |
15,150 |
|
Datasheet | EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

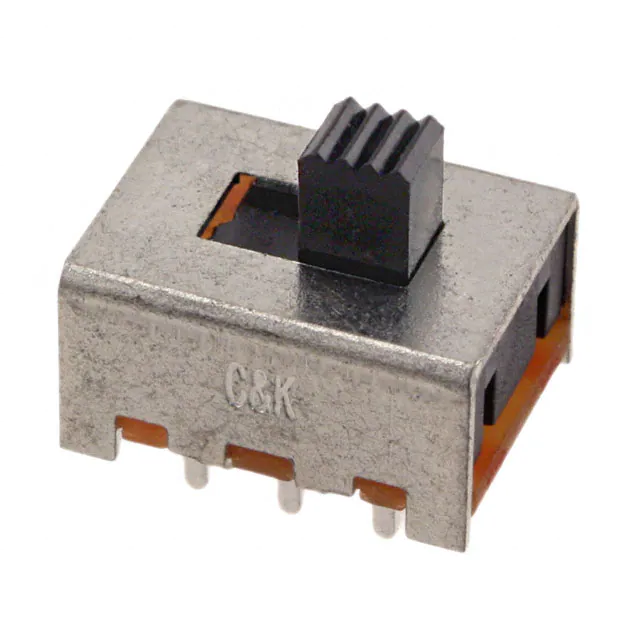

OS202013MT8QN1SWITCH SLIDE DPDT 300MA 30V |
724 |
|
Datasheet | OS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
GPI-152-3013SWITCH SLIDE DPDT 3A 125V |
1,785 |
|
Datasheet | GPI | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
MSS-102568-14A-90-DSWITCH SLIDE SPDT 0.3A 24V |
587 |
|
Datasheet | - | Bag | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 24 V | Standard | - | Nickel | Gold | Through Hole, Right Angle | PC Pin | - |
|
MS22SWITCH SLIDE DPDT 300MA 6V |
6,548 |
|
Datasheet | MS | Bulk | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | - |
|
PM13B012SWITCH SLIDE SPDT 6A 125V |
3,227 |
|
Datasheet | PM | Tube | Active | SPDT | Not Specified | On-On | 6A (AC) | 125 V | - | Standard | 9.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
EG2308SWITCH SLIDE DP3T 100MA 12V |
4,842 |
|
Datasheet | EG | Bulk | Active | DP3T | Not Specified | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
