Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

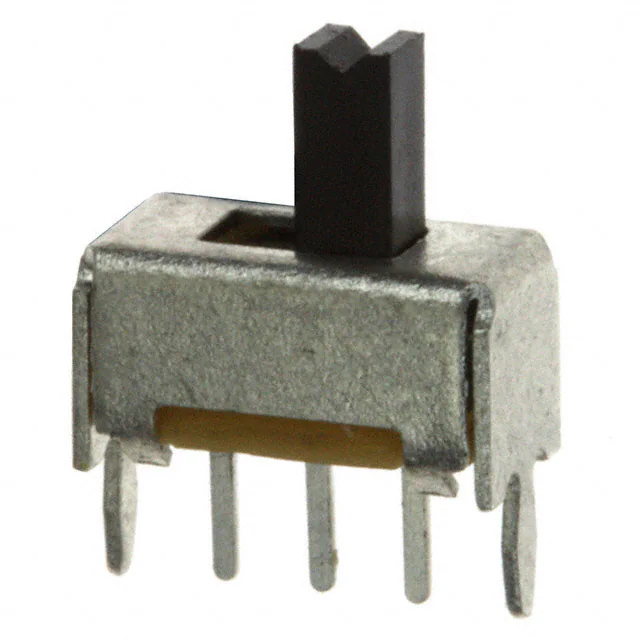

OS102011MS2QS1SWITCH SLIDE SPDT 100MA 12V |
70,627 |
|
Datasheet | OS | Bulk | Active | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MS1202L6SWITCH SLIDE SPDT 0.2A 30V |
1,366 |
|
Datasheet | MS1202 | Bag | Active | SPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
CUS-14TBSWITCH SLIDE SP4T 300MA 4V |
6,993 |
|
Datasheet | CUS | Tape & Reel (TR) | Active | SP4T | Non-Shorting (BBM) | On-On-On-On | 300mA (DC) | - | 4 V | Standard | 1.50mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
SLW-713515-2A-SMT-TRSWITCH SLIDE DPDT 0.1A 12V |
3,838 |
|
Datasheet | SLW | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Phosphor Copper | Silver | Surface Mount | Gull Wing | - |
|
|
MS12711SWITCH SLIDE DPDT 0.2A 30V |
1,992 |
|
Datasheet | MS1271 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 2.03mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
450404015514SWITCH SLIDE SPDT 0.3A 5V |
6,541 |
|
Datasheet | WS-SLSU | Tape & Reel (TR) | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 5 V | Standard | 1.50mm | Copper Alloy | Silver | Surface Mount | SMD (SMT) Tab | - |
|
EG1315AASWITCH SLIDE SP3T 25MA 24V |
1,895 |
|
Datasheet | EG | Tape & Reel (TR) | Active | SP3T | Not Specified | On-On-On | 25mA (DC) | - | 24 V | Standard | 1.40mm | - | - | Surface Mount, Right Angle | Gull Wing | - |
|
|
SLW-111629-7A-DSWITCH SLIDE DPDT 0.5A 50V |
1,228 |
|
Datasheet | SLW | Box | Active | DPDT | Not Specified | On-On | 500mA (DC) | - | 50 V | Standard | 7.00mm | Brass | Silver | Through Hole | PC Pin | - |
|
EG1201SWITCH SLIDE SPDT 200MA 30V |
12,646 |
|
Datasheet | EG | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

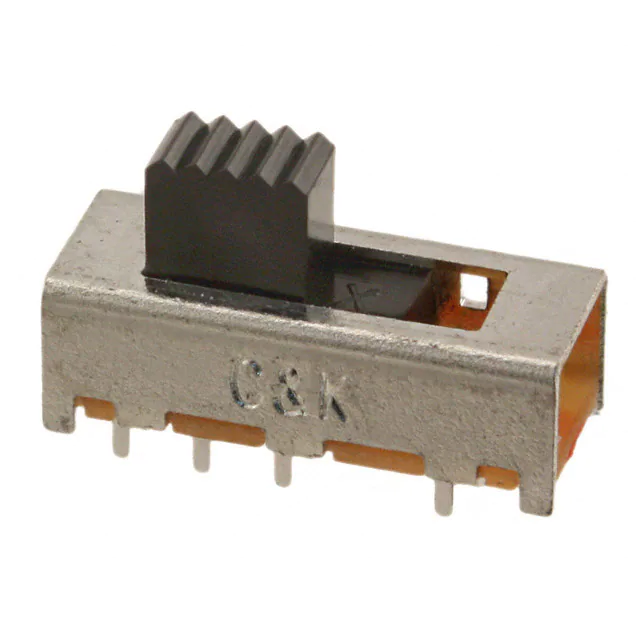

OS103012MU2QP1SWITCH SLIDE SP3T 200MA 30V |
9,241 |
|
Datasheet | OS | Bulk | Active | SP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
SS-14D0839-VG 5 PASWITCH SLIDE SP4T 300MA 30V |
75,586 |
|
Datasheet | SS, COMAX | Tray | Active | SP4T | Not Specified | On-On-On-On | 300mA (DC) | - | 30 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
.JPG)
|
SS-22F02-DG 6 (L)SWITCH SLIDE DPDT 300MA 30V |
7,012 |
|
Datasheet | SS, COMAX | Bulk | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
SLW-1678105-6A-N-D16 X 7.8 X 10.5 MM, 6 MM RAISED |
2,899 |
|
Datasheet | SLW | Box | Active | DPDT | Non-Shorting (BBM) | On-On | 1A (DC) | - | 12 V | Standard | 6.00mm | Brass | Silver | Through Hole | PC Pin | - |
|
MFS101D-14-ZSWITCH SLIDE SPDT 300MA 30V |
1,087 |
|
Datasheet | MFS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | - | - | Panel Mount | Solder Lug | - |
|

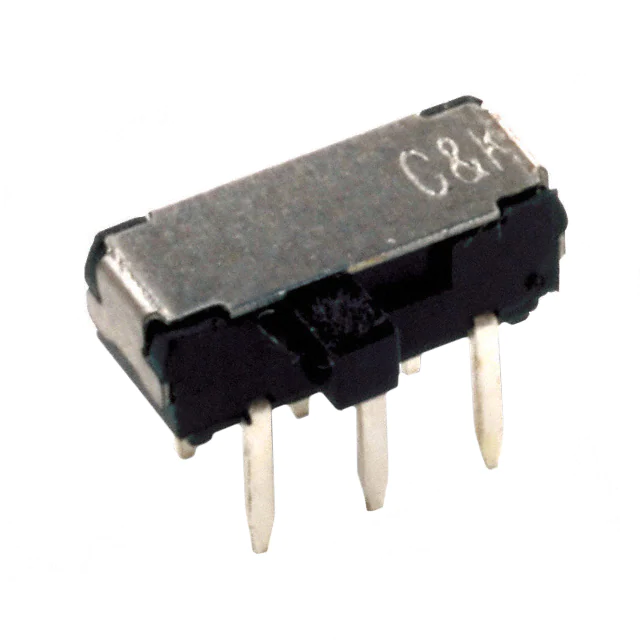

JS202011AQNSWITCH SLIDE DPDT 300MA 6V |
2,361 |
|
Datasheet | JS | Bulk | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MS2241L6SWITCH SLIDE DPDT 0.1A 30V |
1,801 |
|
Datasheet | MS2241 | Tray | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 6.00mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MS2241L9SWITCH SLIDE DPDT 0.1A 30V |
1,585 |
|
Datasheet | MS2241 | Tray | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 9.00mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
OS102011MS2QN1CSWITCH SLIDE SPDT 0.1A 12V |
20,206 |
|
Datasheet | OS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
EG2208ASWITCH SLIDE DPDT 200MA 30V |
26,368 |
|
Datasheet | EG | Bulk | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
EG1313SWITCH SLIDE SP3T 200MA 30V |
11,157 |
|
Datasheet | EG | Bulk | Active | SP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
