Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

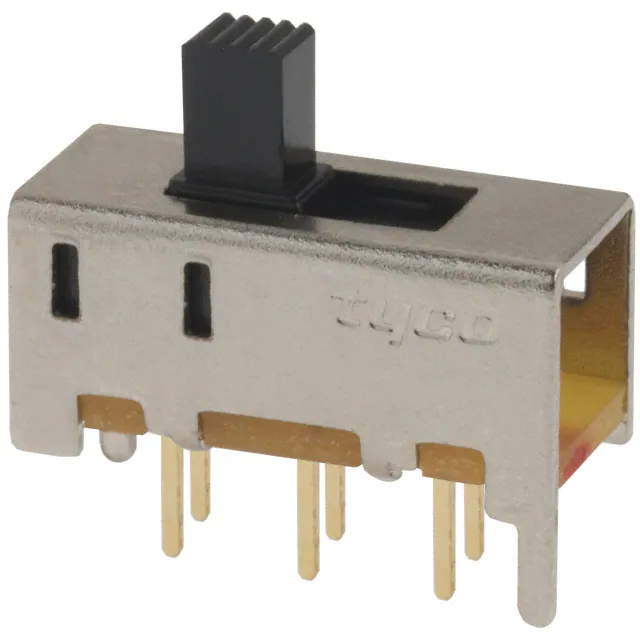

1825289-6SWITCH SLIDE DPDT 0.4VA 20V |
214 |
|
Datasheet | MHS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

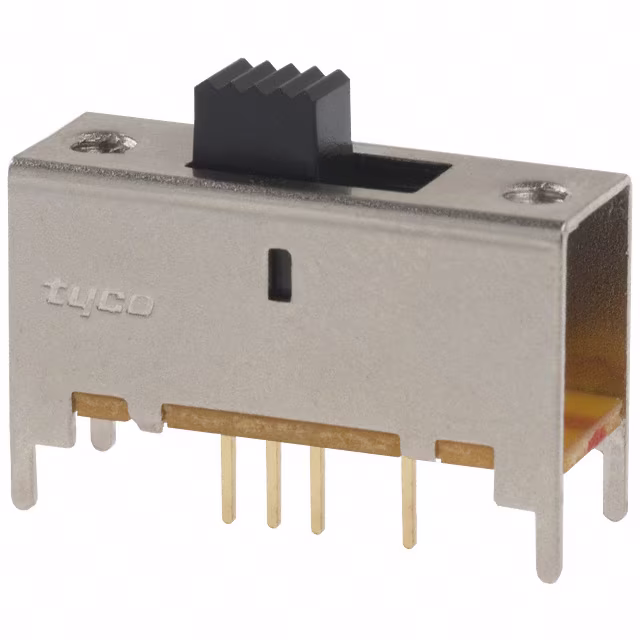

1825259-2SWITCH SLIDE SP3T 0.4VA 20V |
1,265 |
|
Datasheet | MSS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.80mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
CST042NKSWITCH SLIDE 4PDT 300MA 125V |
1,434 |
|
Datasheet | CST | Bulk | Active | 4PDT | Non-Shorting (BBM) | On-On | 300mA (AC), 200mA (DC) | 125 V | 12 V | Baton | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825269-1SWITCH SLIDE 4P3T 300MA 125V |
4,764 |
|
Datasheet | MSS | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 9.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825270-2SWITCH SLIDE 4P3T 0.4VA 20V |
4,135 |
|
Datasheet | MSS | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 14.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
TSS11DGPCSWITCH SLIDE SPDT 0.4VA 20V |
1,174 |
|
Datasheet | TSS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825010-7SWITCH SLIDE DPDT 0.4VA 20V |
3,552 |
|
Datasheet | ASE | Tube | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Surface Mount | J Lead | - |
|

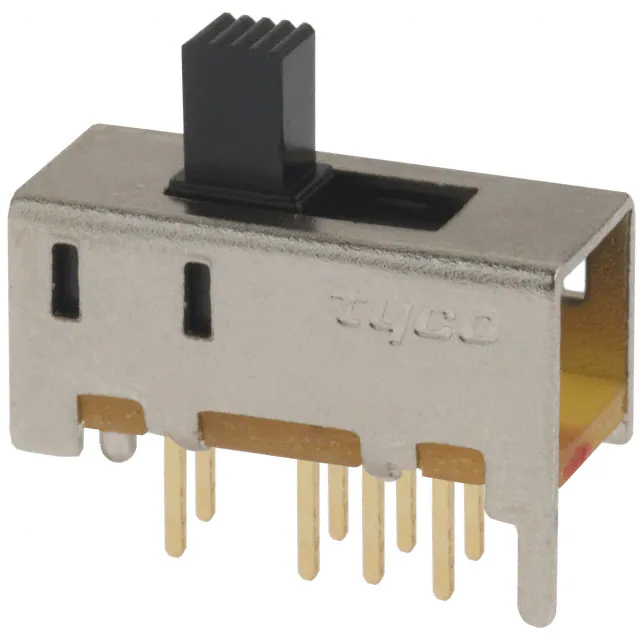

1825289-9SWITCH SLIDE DP3T 0.4VA 20V |
1,830 |
|
Datasheet | MHS | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825011-4SWITCH SLIDE DPDT 0.4VA 20V |
3,927 |
|
Datasheet | ASF | Tube | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
TSS21NGPCSWITCH SLIDE DPDT 0.4VA 20V |
4,866 |
|
Datasheet | TSS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
