Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1437579-9SWITCH SLIDE DPDT 0.4VA 20V |
500 |
|
Datasheet | - | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
1-1437579-9SWITCH SLIDE DPDT 0.4VA 20V |
340 |
|
Datasheet | TSS | Box | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
|

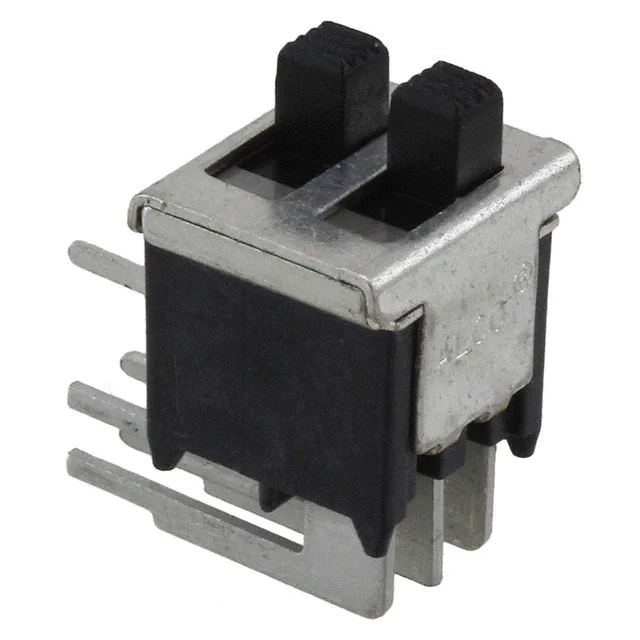

1825014-2SWITCH SLIDE SPDTX2 0.4VA 20V |
2,833 |
|
Datasheet | TSS | Bulk | Active | SPDT x 2 | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825160-1SWITCH SLIDE SPDT 300MA 125V |
1,817 |
|
Datasheet | STS | Bulk | Obsolete | SPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825159-2SWITCH SLIDE SP3T 300MA 125V |
4,075 |
|
Datasheet | STS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

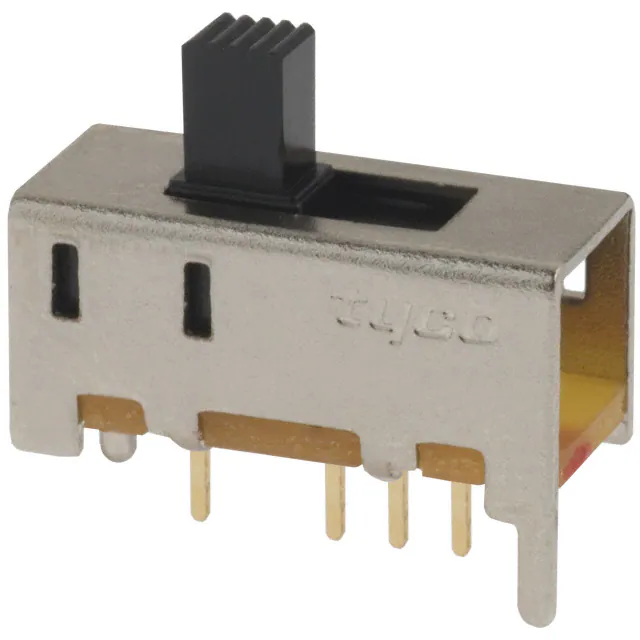

1825255-8SWITCH SLIDE SP3T 0.4VA 20V |
2,365 |
|
Datasheet | MHS | Bulk | Active | SP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825080-4SWITCH SLIDE DP5T 250MA 125V |
1,923 |
|
Datasheet | SLS | Bulk | Obsolete | DP5T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
2-1825010-0SWITCH SLIDE 4PDT 300MA 115V |
3,194 |
|
Datasheet | ASE | Tube | Obsolete | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Surface Mount | J Lead | - |
|
|
ASE22RLSWITCH SLIDE DPDT 300MA 115V |
4,330 |
|
Datasheet | ASE | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.67mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
|
1571985-1SWITCH SLIDE SPDT 0.4VA 20V |
3,313 |
|
Datasheet | TSS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
