Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1571984-1SWITCH SLIDE SPDT 0.4VA 20V |
5,818 |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

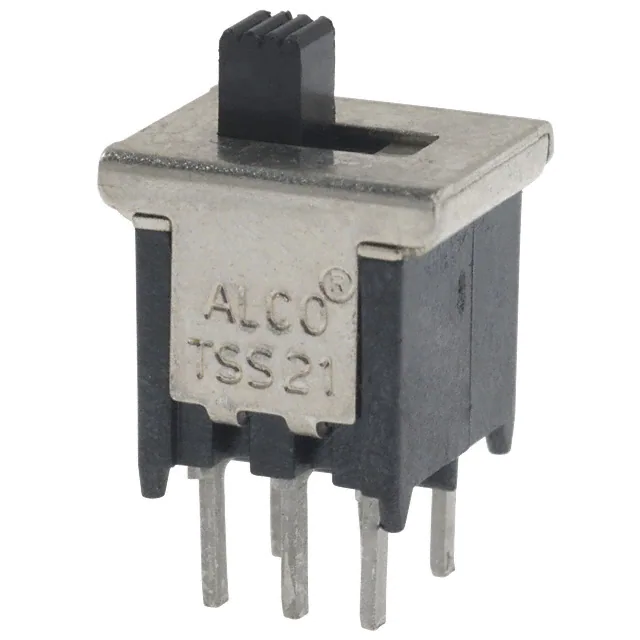

1571982-1SWITCH SLIDE SPDT 0.4VA 20V |
360 |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
3-1825010-7SWITCH SLIDE 6PDT 300MA 115V |
432 |
|
Datasheet | ASE | Bulk | Active | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

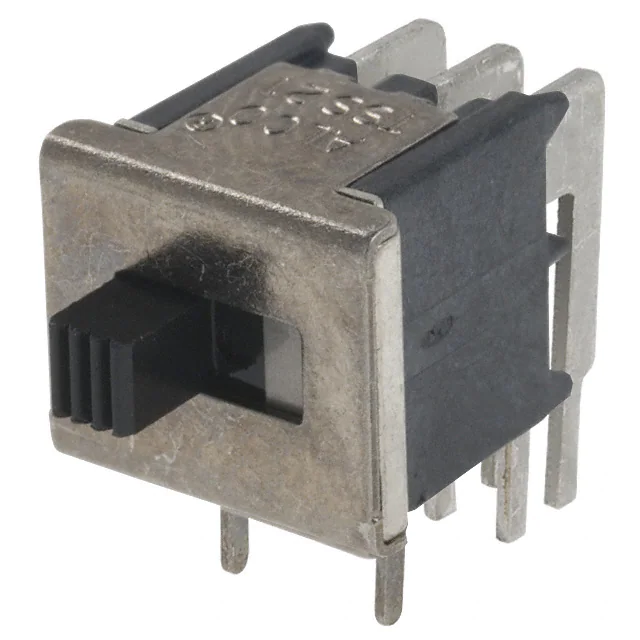

1571984-3SWITCH SLIDE DPDT 0.4VA 20V |
167 |
|
Datasheet | TSS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|

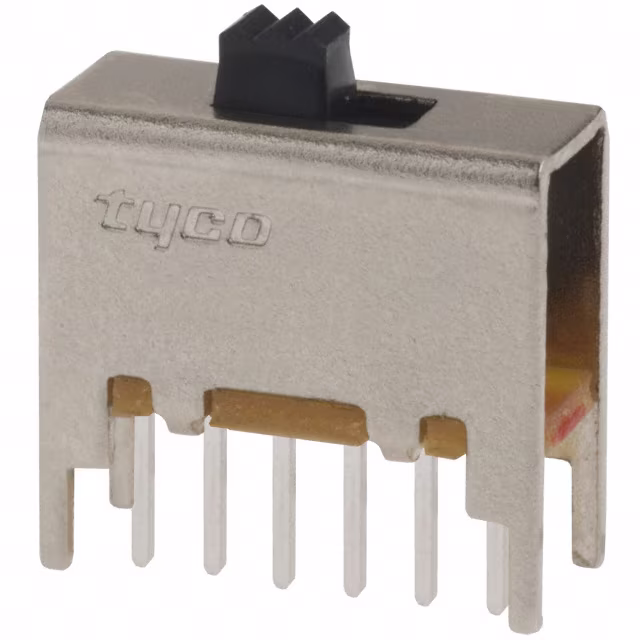

1825261-1SWITCH SLIDE DPDT 300MA 125V |
385 |
|
Datasheet | MSS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 2.30mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825263-1SWITCH SLIDE DPDT 300MA 125V |
5,932 |
|
Datasheet | MSS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 11.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825262-2SWITCH SLIDE DPDT 0.4VA 20V |
1,895 |
|
Datasheet | MSS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.20mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825268-2SWITCH SLIDE 4P3T 0.4VA 20V |
1,642 |
|
Datasheet | MSS | Bulk | Active | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.20mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

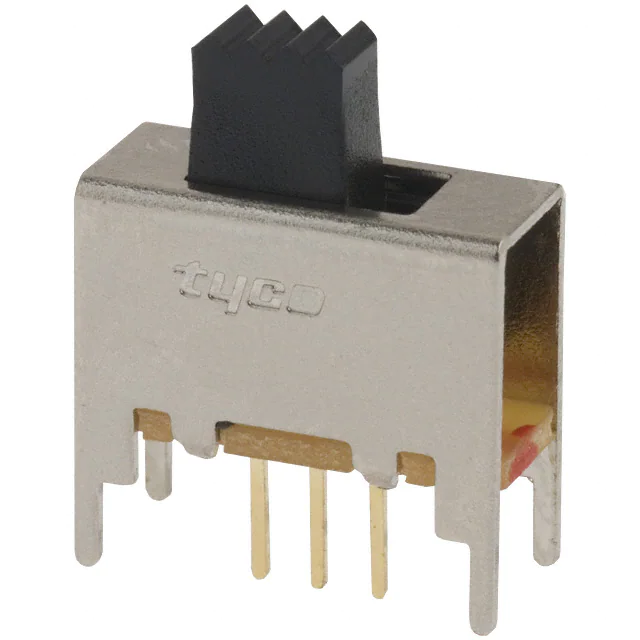

1825257-2SWITCH SLIDE SPDT 0.4VA 20V |
820 |
|
Datasheet | MSS | Bulk | Active | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.00mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825290-3SWITCH SLIDE DP3T 300MA 125V |
4,201 |
|
Datasheet | MHS | Bulk | Active | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
