Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23ESA103MMF50AFPOT 10K OHM 0.4W CARBON LINEAR |
210 |
|
Datasheet | 23, Citec | Bulk | Active | 10k | ±20% | 0.4W | Rotary, DPST | 1.0 | - | Linear | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|

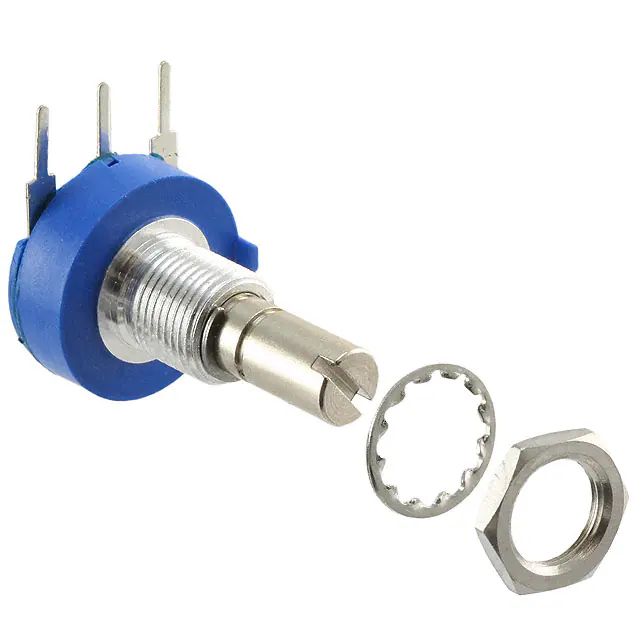

3852A-286-104ALPOT 100K OHM 2W CERMET LINEAR |
1,027 |
|
Datasheet | 3852 | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 280° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

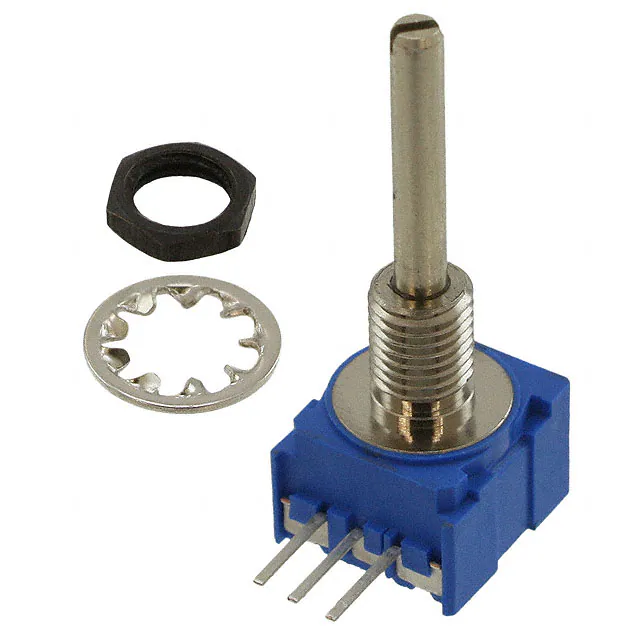

51SAD-U25-A15LPOT 10K OHM 1W CERMET LINEAR |
145 |
|
Datasheet | Pro Audio 51 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.984" (25.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
92R1A-R22-B13LPOT 5K OHM 1W PLASTIC LINEAR |
197 |
|
Datasheet | 92 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±1000ppm/°C | 300° | Conductive Plastic | Solder Hook | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 | Panel Mount |
|
51AAA-B24-D10LPOT 1K OHM 1/4W PLASTIC LOG |
142 |
|
Datasheet | Pro Audio 51 | Bulk | Active | 1k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
51AAA-B24-B20LPOT 100K OHM 1/2W PLASTIC LINEAR |
265 |
|
Datasheet | Pro Audio 51 | Bulk | Active | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
53AAA-B28-A10LPOT 1K OHM 1W CERMET LINEAR |
278 |
|
Datasheet | Pro Audio 53 | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 290° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
53AAA-B28-B15LPOT 10K OHM 1/2W PLASTIC LINEAR |
166 |
|
Datasheet | Pro Audio 53 | Bulk | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
53CAA-E28-D13LPOT 5K OHM 1/4W PLASTIC LOG |
132 |
|
Datasheet | Pro Audio 53 | Bulk | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

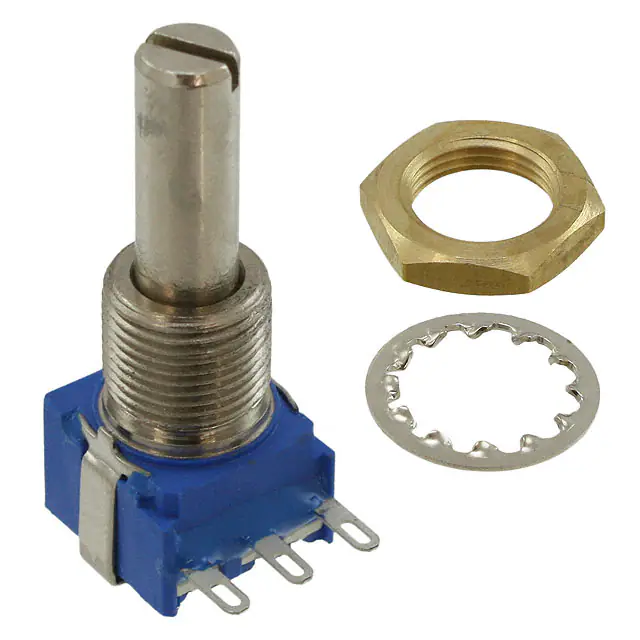

53RAA-R25-A13LPOT 5K OHM 1W CERMET LINEAR |
139 |
|
Datasheet | Pro Audio 53 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 290° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

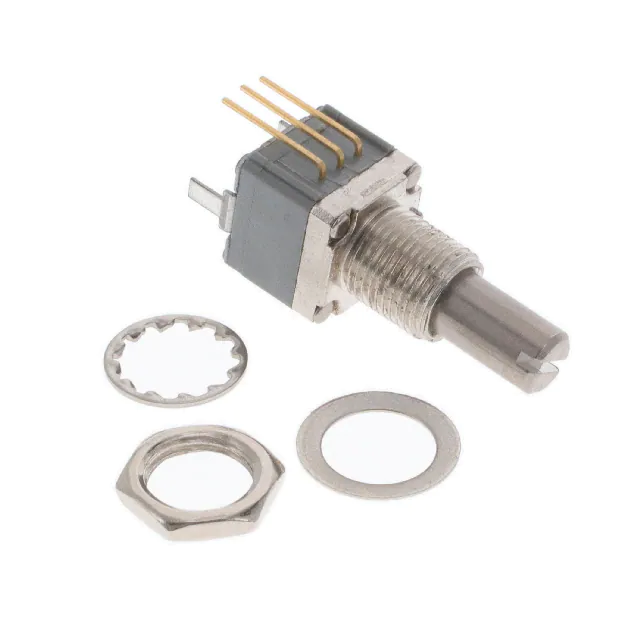

P260T-D1BS3CA100KPOT 100K OHM 1/4W PLASTIC LOG |
423 |
|
Datasheet | P260 | Tray | Active | 100k | ±10% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Top Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P260P-D1BS3CA100KPOT 100K OHM 1/4W PLASTIC LOG |
366 |
|
Datasheet | P260 | Tray | Active | 100k | ±10% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

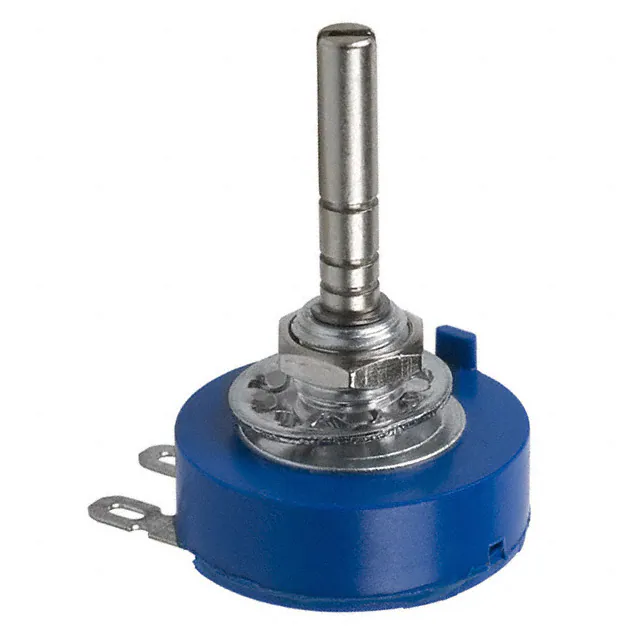

3852C-282-103ALPOT 10K OHM 2W CERMET LINEAR |
255 |
|
Datasheet | 3852 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3852A-202-103ALPOT 10K OHM 2W CERMET LINEAR |
231 |
|
Datasheet | 3852 | Tray | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

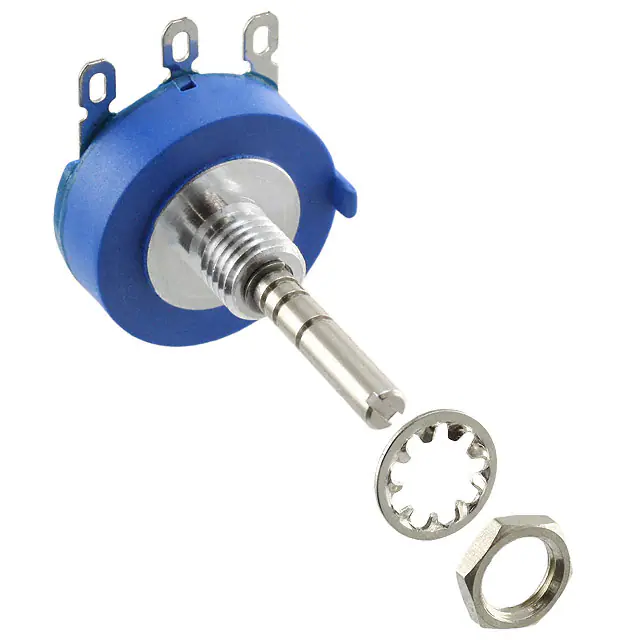

3852C-282-102ALPOT 1K OHM 2W CERMET LINEAR |
217 |
|
Datasheet | 3852 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3852A-162-103ALPOT 10K OHM 2W CERMET LINEAR |
214 |
|
Datasheet | 3852 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3852C-282-502ALPOT 5K OHM 2W CERMET LINEAR |
126 |
|
Datasheet | 3852 | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
96A1A-B28-B20LPOT 100K OHM 1W PLASTIC LINEAR |
250 |
|
Datasheet | 96 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P10XXAI501KB30POT 500 OHM 1/2W CERMET LINEAR |
120 |
|
Datasheet | P10 | Box | Active | 500 | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
53AAA-C28-E13LPOT 5K OHM 1/2W PLASTIC LINEAR |
743 |
|
Datasheet | Pro Audio 53 | Tray | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
