Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCW1J-C24-BAB502LPOT 5K OHM 3/4W PLASTIC LINEAR |
509 |
|
Datasheet | PC-Slimline | Tray | Active | 5k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|

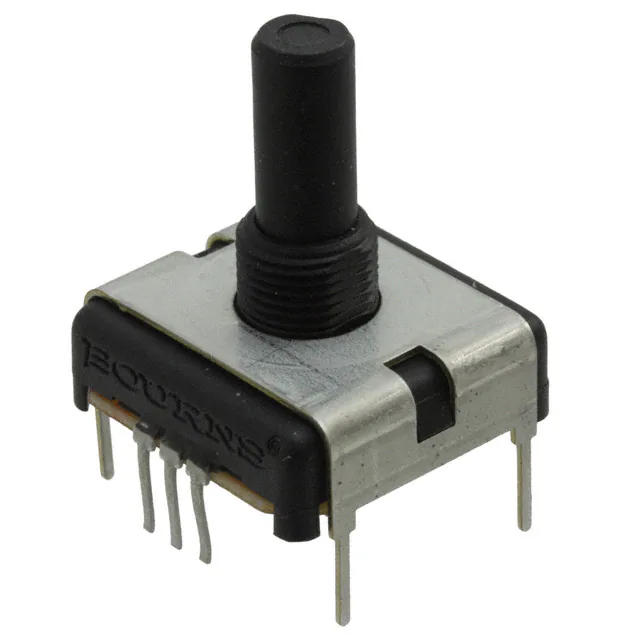

PCW1D-C24-BAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
231 |
|
Datasheet | PC-Slimline | Tray | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
PCW1J-C24-KAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
171 |
|
Datasheet | PC-Slimline | Bulk | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
PC16DH-10IP06-104B2020-TAPOT 100K OHM 1/10W CARBON LOG |
585 |
|
Datasheet | PC-16 | Bulk | Active | 100k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-104A2020-TAPOT 100K OHM 1/5W CARBON LINEAR |
551 |
|
Datasheet | PC-16 | Bulk | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-472A2020-TAPOT 4.7K OHM 1/5W CARBON LINEAR |
495 |
|
Datasheet | PC-16 | Bulk | Active | 4.7k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-105A2020-TAPOT 1M OHM 1/5W CARBON LINEAR |
401 |
|
Datasheet | PC-16 | Bulk | Active | 1M | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-503A2020-TAPOT 50K OHM 1/5W CARBON LINEAR |
344 |
|
Datasheet | PC-16 | Bulk | Active | 50k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
23ESA103MPE32NPOT 10K OHM 0.4W CARBON LINEAR |
141 |
|
Datasheet | 23, Citec | Bulk | Active | 10k | ±20% | 0.4W | None | 1.0 | - | Linear | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Round | 1.260" (32.00mm) | 0.157" (3.99mm) | M7 | Panel Mount |
|
PCW1J-B24-BAB104LPOT 100K OHM 3/4W PLASTIC LINEAR |
320 |
|
Datasheet | PC-Slimline | Tray | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
PCW1D-B24-BAB102LPOT 1K OHM 3/4W PLASTIC LINEAR |
277 |
|
Datasheet | PC-Slimline | Tray | Active | 1k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PCW1J-C24-KAB502LPOT 5K OHM 3/4W PLASTIC LINEAR |
268 |
|
Datasheet | PC-Slimline | Tray | Active | 5k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|

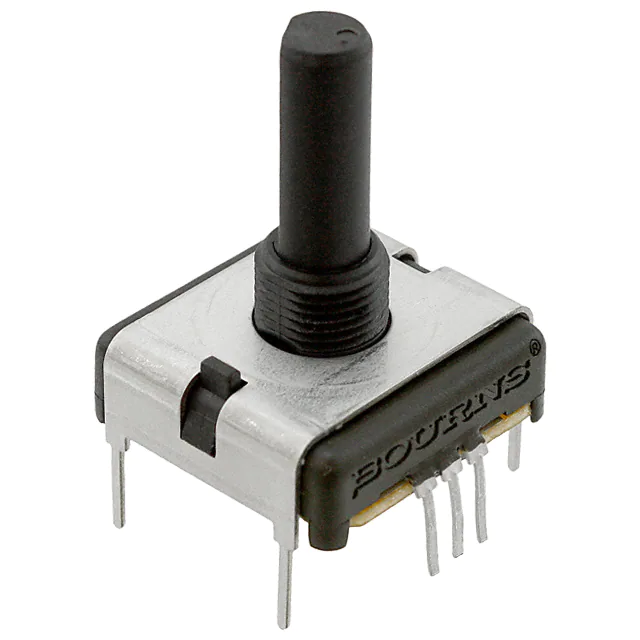

PCW1J-C28-BAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
1,901 |
|
Datasheet | PC-Slimline | Tray | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
.jpg)
|
93A1A-B24-A10LPOT 1K OHM 2W CERMET LINEAR |
232 |
|
Datasheet | 93 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
T21AH-M0607-103A2020-TAPOT 10K OHM 1/4W CARBON LINEAR |
268 |
|
Datasheet | T-21 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
270X232A104B1B1POT 100K OHM 1/4W CARBON LINEAR |
1,010 |
|
Datasheet | 270 | Bulk | Active | 100k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
270X232A503B1B1POT 50K OHM 1/4W CARBON LINEAR |
338 |
|
Datasheet | 270 | Bulk | Active | 50k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
23ESB103MMF50NFPOT 10K OHM 1/5W CARBON LOG |
336 |
|
Datasheet | 23, Citec | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Logarithmic | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|
|
23ESB472MMF50NFPOT 4.7K OHM 1/5W CARBON LOG |
104 |
|
Datasheet | 23, Citec | Bulk | Active | 4.7k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Logarithmic | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|
270X232A102B1B1POT 1K OHM 1/4W CARBON LINEAR |
342 |
|
Datasheet | 270 | Bulk | Active | 1k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
