Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
270X232A501B1B1POT 500 OHM 1/4W CARBON LINEAR |
444 |
|
Datasheet | 270 | Bulk | Active | 500 | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

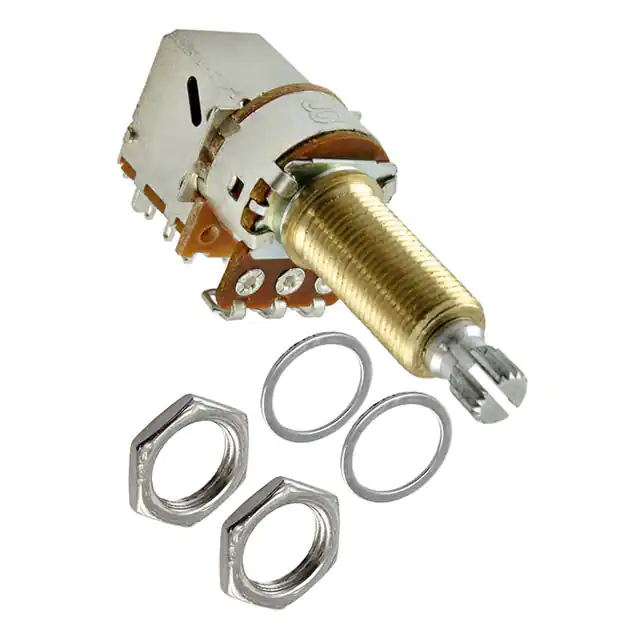

PDB183-GTR31-504A2POT 500K OHM 1/10W CARBON LOG |
3,022 |
|
Datasheet | Pro Audio PDB183-GTR | Bulk | Active | 500k | ±20% | 0.1W, 1/10W | Push-Pull, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 1.083" (27.50mm) | 0.236" (6.00mm) | - | Panel Mount |
|
91A1A-B28-B22LPOT 250K OHM 1W PLASTIC LINEAR |
534 |
|
Datasheet | 91 | Bulk | Active | 250k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PC16DH-10IP06-103B2020-TAPOT 10K OHM 1/10W CARBON LOG |
564 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PC16SH-10CP06-103B2020-TAPOT 10K OHM 1/10W CARBON LOG |
561 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PCW1J-B24-KAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
199 |
|
Datasheet | PC-Slimline | Tray | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
18VRGT324K254NA3POT 250K OHM 1/20W LOGARITHMIC |
165 |
|
Datasheet | 18VRG | Tray | Active | 250k | ±20% | 0.05W, 1/20W | Push-Pull, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | - | Solder Lug | Knurled | 0.750" (19.05mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
18VRGT324S254NA3POT 250K OHM 1/20W LOGARITHMIC |
156 |
|
Datasheet | 18VRG | Tray | Active | 250k | ±20% | 0.05W, 1/20W | Push-Pull, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | - | Solder Lug | Slotted | 0.750" (19.05mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
18VRGT324S504NA3POT 500K OHM 1/20W LOGARITHMIC |
154 |
|
Datasheet | 18VRG | Tray | Active | 500k | ±20% | 0.05W, 1/20W | Push-Pull, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | - | Solder Lug | Slotted | 0.750" (19.05mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
3852A-162-102ALPOT 1K OHM 2W CERMET LINEAR |
198 |
|
Datasheet | 3852 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
T21AH-M0607-105A2020-TAPOT 1M OHM 1/4W CARBON LINEAR |
587 |
|
Datasheet | T-21 | Bulk | Active | 1M | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
T21AH-M0607-252A2020-TAPOT 2.5K OHM 1/4W CARBON LINEAR |
586 |
|
Datasheet | T-21 | Bulk | Active | 2.5k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
T21AH-M0607-251A2020-TAPOT 250 OHM 1/4W CARBON LINEAR |
581 |
|
Datasheet | T-21 | Bulk | Active | 250 | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
91A1A-B28-B12LPOT 2.5K OHM 1W PLASTIC LINEAR |
108 |
|
Datasheet | 91 | Bulk | Active | 2.5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
18VRGT732K504NA3POT 500K OHM 1/20W LOGARITHMIC |
133 |
|
Datasheet | 18VRG | Tray | Active | 500k | ±20% | 0.05W, 1/20W | Push-Pull, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | - | Solder Lug | Knurled | 1.000" (25.40mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
T21AH-M0607-502A2020-TAPOT 5K OHM 1/4W CARBON LINEAR |
487 |
|
Datasheet | T-21 | Bulk | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P10YMAG104KB30POT 100K OHM 1/2W CERMET LINEAR |
182 |
|
Datasheet | P10 | Box | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.630" (16.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
.jpg)
|
93A1A-B28-A10LPOT 1K OHM 2W CERMET LINEAR |
342 |
|
Datasheet | 93 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
93R1A-R22-A22LPOT 250K OHM 2W CERMET LINEAR |
223 |
|
Datasheet | 93 | Bulk | Active | 250k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
91A1A-B28-B20LPOT 100K OHM 1W PLASTIC LINEAR |
248 |
|
Datasheet | 91 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
