Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GU5011S26POT 500 OHM 2W WIREWOUND LINEAR |
2,104 |
|
Datasheet | GU | Bulk | Obsolete | 500 | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU1021S26POT 1K OHM 2W WIREWOUND LINEAR |
4,581 |
|
Datasheet | GU | Bulk | Obsolete | 1k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU2021S26POT 2K OHM 2W WIREWOUND LINEAR |
3,594 |
|
Datasheet | GU | Bulk | Obsolete | 2k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU5021S26POT 5K OHM 2W WIREWOUND LINEAR |
3,228 |
|
Datasheet | GU | Bulk | Obsolete | 5k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU1031S26POT 10K OHM 2W WIREWOUND LINEAR |
4,356 |
|
Datasheet | GU | Bulk | Obsolete | 10k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU2031S26POT 20K OHM 2W WIREWOUND LINEAR |
3,096 |
|
Datasheet | GU | Bulk | Obsolete | 20k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU2531S26POT 25K OHM 2W WIREWOUND LINEAR |
1,415 |
|
Datasheet | GU | Bulk | Obsolete | 25k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU5031S26POT 50K OHM 2W WIREWOUND LINEAR |
4,786 |
|
Datasheet | GU | Bulk | Obsolete | 50k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
GU1041S26POT 100K OHM 2W WIREWOUND LINEAR |
2,687 |
|
Datasheet | GU | Bulk | Obsolete | 100k | ±5% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | - | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3590S-1-202POT 2K OHM 2W WIREWOUND LINEAR |
2,075 |
|
Datasheet | 3590 | Bulk | Obsolete | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
3590S-2-202POT 2K OHM 2W WIREWOUND LINEAR |
1,316 |
|
Datasheet | 3590 | Bulk | Obsolete | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-501POT 500 OHM 2W WIREWOUND LINEAR |
3,355 |
|
Datasheet | 3590 | Bulk | Obsolete | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3852A-282-503APOT 50K OHM 2W CERMET LINEAR |
3,829 |
|
Datasheet | 3852 | Bulk | Obsolete | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
270S1739POT 1K OHM 1/4W CARBON LINEAR |
4,078 |
|
- |
- | - | Active | 1k | - | 0.25W, 1/4W | - | - | - | Linear | - | - | - | - | Carbon | - | - | - | - | - | - |
|
53C325KPOT 25K OHM 2W PLASTIC LINEAR |
3,906 |
|
Datasheet | 53C | Bulk | Obsolete | 25k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
53C3500KPOT 500K OHM 2W PLASTIC LINEAR |
2,297 |
|
Datasheet | 53C | Bulk | Obsolete | 500k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3862C-286-103APOT 10K OHM 1W CERMET LINEAR |
2,767 |
|
Datasheet | 3862 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

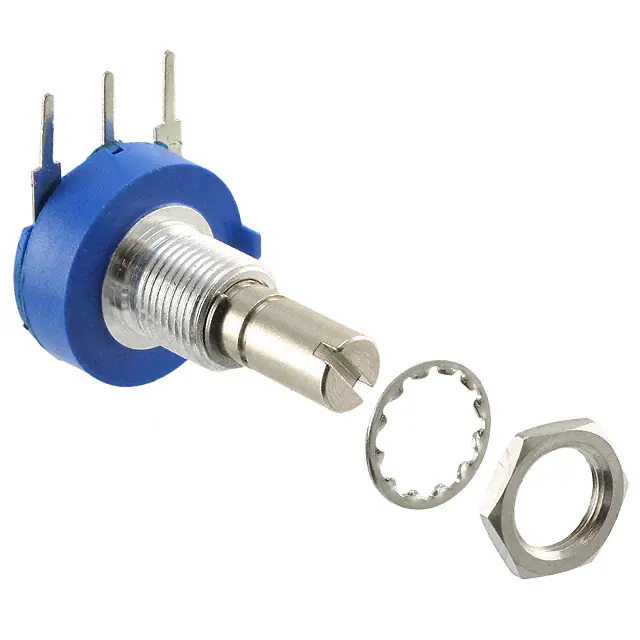

3852A-286-103APOT 10K OHM 2W CERMET LINEAR |
1,944 |
|
Datasheet | 3852 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 280° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
91A2D-B24-A18/A18POT 50K OHM 1W CERMET LINEAR |
4,418 |
|
Datasheet | 91 | Tray | Obsolete | 50k | ±10% | 1W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
RV4NAYSD105DPOT 1M OHM 2W CARBON LOGARITHMIC |
3,260 |
|
Datasheet | RV4 | Bulk | Active | 1M | ±20% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
