Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RJS225POT 225 OHM 50W WIREWOUND LINEAR |
2,690 |
|
Datasheet | J | Bulk | Active | 225 | ±10% | 50W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3862C-201-502APOT 5K OHM 1W CERMET LINEAR |
2,985 |
|
Datasheet | 3862 | Bulk | Obsolete | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Round | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
RV6NAYSD505APOT 5M OHM 1/2W CARBON LINEAR |
1,854 |
|
Datasheet | RV6 | Bulk | Obsolete | 5M | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
RV6LAYSA505APOT 5M OHM 1/2W CARBON LINEAR |
3,318 |
|
Datasheet | RV6 | Bulk | Active | 5M | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
RV4LAYSA353APOT 35K OHM 2W CARBON LINEAR |
2,028 |
|
Datasheet | RV4 | Bulk | Active | 35k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
3540S-1-102POT 1K OHM 2W WIREWOUND LINEAR |
3,186 |
|
Datasheet | 3540 | Tray | Obsolete | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-103POT 10K OHM 2W WIREWOUND LINEAR |
4,846 |
|
Datasheet | 3540 | Bulk | Obsolete | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-104POT 100K OHM 2W WIREWOUND LINEAR |
1,674 |
|
Datasheet | 3540 | Bulk | Obsolete | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-502POT 5K OHM 2W WIREWOUND LINEAR |
4,832 |
|
Datasheet | 3540 | Bulk | Obsolete | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

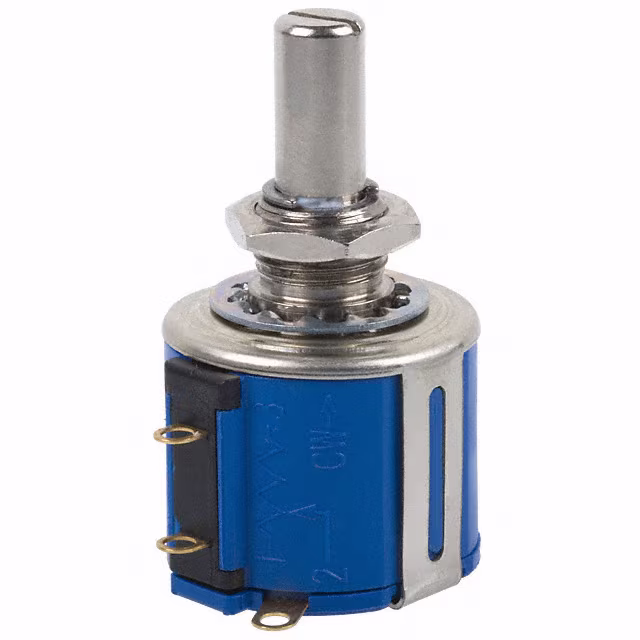

3541H-1-102POT 1K OHM 2W HYBRITRON LINEAR |
2,139 |
|
Datasheet | Hybritron® 3541 | Tray | Obsolete | 1k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3541H-1-103POT 10K OHM 2W HYBRITRON LINEAR |
3,201 |
|
Datasheet | Hybritron® 3541 | Bulk | Obsolete | 10k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3541H-1-502POT 5K OHM 2W HYBRITRON LINEAR |
4,588 |
|
Datasheet | Hybritron® 3541 | Tray | Obsolete | 5k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3590S-1-102POT 1K OHM 2W WIREWOUND LINEAR |
4,335 |
|
Datasheet | 3590 | Bulk | Obsolete | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-103POT 10K OHM 2W WIREWOUND LINEAR |
2,913 |
|
Datasheet | 3590 | Bulk | Obsolete | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-104POT 100K OHM 2W WIREWOUND LINEAR |
4,561 |
|
Datasheet | 3590 | Bulk | Obsolete | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-203POT 20K OHM 2W WIREWOUND LINEAR |
1,066 |
|
Datasheet | 3590 | Bulk | Obsolete | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-502POT 5K OHM 2W WIREWOUND LINEAR |
2,647 |
|
Datasheet | 3590 | Bulk | Obsolete | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-503POT 50K OHM 2W WIREWOUND LINEAR |
1,038 |
|
Datasheet | 3590 | Bulk | Obsolete | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
3590S-2-102POT 1K OHM 2W WIREWOUND LINEAR |
4,251 |
|
Datasheet | 3590 | Bulk | Obsolete | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-103POT 10K OHM 2W WIREWOUND LINEAR |
1,139 |
|
Datasheet | 3590 | Bulk | Obsolete | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
