Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3590S-2-104POT 100K OHM 2W WIREWOUND LINEAR |
3,941 |
|
Datasheet | 3590 | Bulk | Obsolete | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-203POT 20K OHM 2W WIREWOUND LINEAR |
3,292 |
|
Datasheet | 3590 | Bulk | Obsolete | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-503POT 50K OHM 2W WIREWOUND LINEAR |
3,637 |
|
Datasheet | 3590 | Bulk | Obsolete | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3852A-162-102APOT 1K OHM 2W CERMET LINEAR |
3,307 |
|
Datasheet | 3852 | Bulk | Obsolete | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3852A-282-102APOT 1K OHM 2W CERMET LINEAR |
4,627 |
|
Datasheet | 3852 | Bulk | Obsolete | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3852A-282-103APOT 10K OHM 2W CERMET LINEAR |
4,212 |
|
Datasheet | 3852 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3862C-162-103APOT 10K OHM 1W CERMET LINEAR |
2,182 |
|
Datasheet | 3862 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3862C-282-103APOT 10K OHM 1W CERMET LINEAR |
1,272 |
|
Datasheet | 3862 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
51AAD-B24-A15POT 10K OHM 1W CERMET LINEAR |
2,817 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51AAD-B28-D15POT 10K OHM 1/4W PLASTIC LOG |
1,268 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

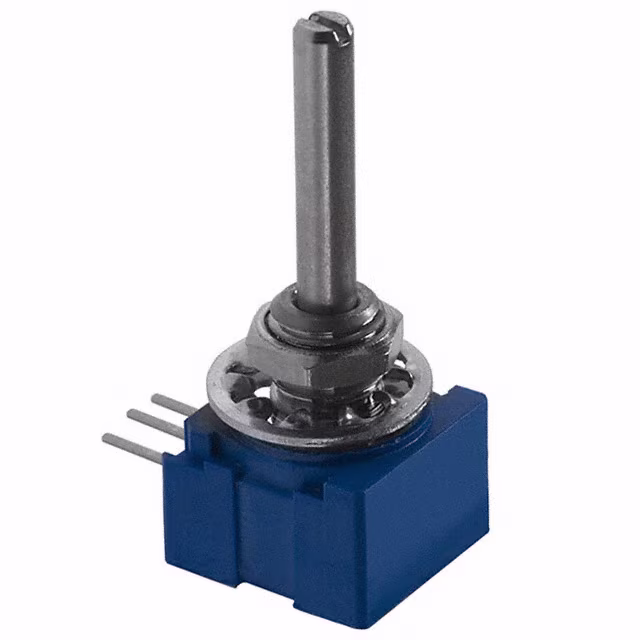

51CAD-E24-A15POT 10K OHM 1W CERMET LINEAR |
4,890 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E24-B15POT 10K OHM 1/2W PLASTIC LINEAR |
3,647 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-A10POT 1K OHM 1W CERMET LINEAR |
2,566 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-A13POT 5K OHM 1W CERMET LINEAR |
4,887 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-A20POT 100K OHM 1W CERMET LINEAR |
3,739 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-D15POT 10K OHM 1/4W PLASTIC LOG |
3,035 |
|
Datasheet | Pro Audio 51 | Bulk | Obsolete | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
53AAA-B28-B15POT 10K OHM 1/2W PLASTIC LINEAR |
2,958 |
|
Datasheet | Pro Audio 53 | Bulk | Obsolete | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
81A1A-B28-A10POT 1K OHM 2W CERMET LINEAR |
4,684 |
|
Datasheet | 81 | Tray | Obsolete | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
81A1A-B28-A13POT 5K OHM 2W CERMET LINEAR |
1,548 |
|
Datasheet | 81 | Bulk | Obsolete | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
81A1A-B28-A15POT 10K OHM 2W CERMET LINEAR |
4,689 |
|
Datasheet | 81 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
