Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC16SH-10CP17-474A2020-TAPOT 470K OHM 1/5W CARBON LINEAR |
4,903 |
|
Datasheet | PC-16 | Bulk | Active | 470k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | Solder Lug | Knurled | 0.748" (19.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-07CP17-103A2020-TAPOT 10K OHM 1/5W CARBON LINEAR |
4,609 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 0.748" (19.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
3360P-1-104LFPOT 100K OHM 1/4W PLASTIC LINEAR |
100 |
|
Datasheet | 3360 | Tray | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
|
PC16SH-10IP06-104B2020-MTAPOT 100K OHM 1/10W CARBON LOG |
100 |
|
Datasheet | PC-16 | Bulk | Active | 100k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
3360P-1-502LFPOT 5K OHM 1/4W PLASTIC LINEAR |
100 |
|
Datasheet | 3360 | Tray | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
|
PDB181-GTR04-254A2POT 250K OHM 1/10W CARBON LOG |
2,425 |
|
Datasheet | Pro Audio PDB181-GTR | Tray | Active | 250k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Round | 1.083" (27.50mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
PC16SH-10IP06-473B2020-MTAPOT 47K OHM 1/10W CARBON LOG |
100 |
|
Datasheet | PC-16 | Bulk | Active | 47k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

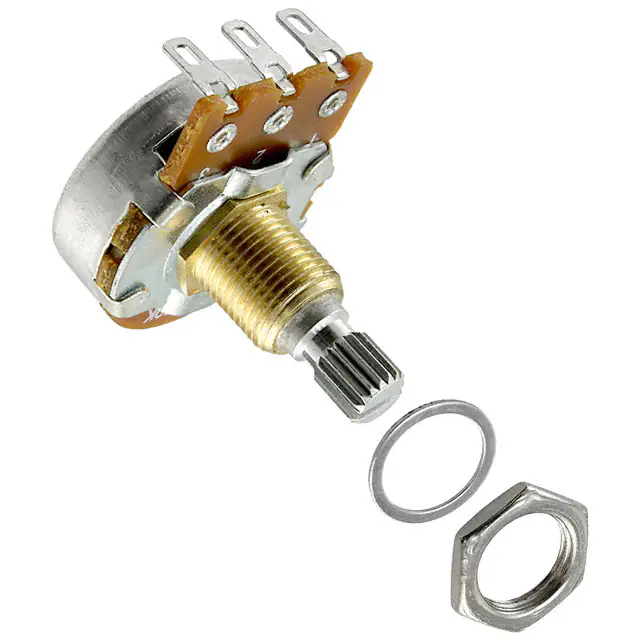

PDB241-GTR01-254C2POT 250K OHM 1/4W CARBON R-LOG |
3,862 |
|
Datasheet | Pro Audio PDB241-GTR | Tray | Active | 250k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
PTD904-1015F-A104POT 100K OHM 1/40W CARBON LOG |
4,649 |
|
Datasheet | Pro Audio PTD90 | Tray | Active | 100k | ±10% | 0.025W, 1/40W | None | 1.0 | - | Logarithmic | 4 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTD904-2015K-C503POT 50K OHM 1/40W CARBON R-LOG |
1,849 |
|
Datasheet | Pro Audio PTD90 | Tray | Active | 50k | ±20% | 0.025W, 1/40W | None | 1.0 | - | Reverse Logarithmic | 4 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-474A2020-MTAPOT 470K OHM 1/5W CARBON LINEAR |
100 |
|
Datasheet | PC-16 | Bulk | Active | 470k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-503A2020-MTAPOT 50K OHM 1/5W CARBON LINEAR |
1,215 |
|
Datasheet | PC-16 | Bulk | Active | 50k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-223A2020-MTAPOT 22K OHM 1/5W CARBON LINEAR |
3,177 |
|
Datasheet | PC-16 | Bulk | Active | 22k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IM06-253A2020-16,0-TAPOT 25K OHM 1/5W CARBON LINEAR |
100 |
|
Datasheet | PC-16 | Bulk | Active | 25k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Round | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP19-253A2020-TAPOT 25K OHM 1/5W CARBON LINEAR |
3,830 |
|
Datasheet | PC-16 | Bulk | Active | 25k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Round | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP06-504A2020-TAPOT 500K OHM 1/5W CARBON LINEAR |
3,286 |
|
Datasheet | PC-16 | Bulk | Active | 500k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP17-102A2020-TAPOT 1K OHM 1/5W CARBON LINEAR |
2,875 |
|
Datasheet | PC-16 | Bulk | Active | 1k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 0.748" (19.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP06-102A2020-TAPOT 1K OHM 1/5W CARBON LINEAR |
3,010 |
|
Datasheet | PC-16 | Bulk | Active | 1k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP06-473A2020-TAPOT 47K OHM 1/5W CARBON LINEAR |
1,901 |
|
Datasheet | PC-16 | Bulk | Active | 47k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP05-474A2020-TAPOT 470K OHM 1/5W CARBON LINEAR |
4,195 |
|
Datasheet | PC-16 | Bulk | Active | 470k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.398" (35.50mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
