Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC16SV-10IP16-253A2020-TAPOT 25K OHM 1/5W CARBON LINEAR |
3,763 |
|
Datasheet | PC-16 | Bulk | Active | 25k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Round | 0.846" (21.50mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP06-105A2020-TAPOT 1M OHM 1/5W CARBON LINEAR |
3,916 |
|
Datasheet | PC-16 | Bulk | Active | 1M | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SV-10IP16-472A2020-TAPOT 4.7K OHM 1/5W CARBON LINEAR |
1,499 |
|
Datasheet | PC-16 | Bulk | Active | 4.7k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Round | 0.846" (21.50mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10CP06-105B2020-TAPOT 1M OHM 1/10W CARBON LOG |
100 |
|
Datasheet | PC-16 | Bulk | Active | 1M | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-07CP04-103B2020-TAPOT 10K OHM 1/10W CARBON LOG |
3,012 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-502B2020-TAPOT 5K OHM 1/10W CARBON LOG |
2,800 |
|
Datasheet | PC-16 | Bulk | Active | 5k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PDB241-GTR02-103A2POT 10K OHM 1/4W CARBON LOG |
1,914 |
|
Datasheet | Pro Audio PDB241-GTR | Tray | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Round | 0.748" (19.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
PC16SH-10CP06-103A2020-15,0-TAPOT 10K OHM 1/5W CARBON LINEAR |
2,706 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-504A2020-MTAPOT 500K OHM 1/5W CARBON LINEAR |
100 |
|
Datasheet | PC-16 | Bulk | Active | 500k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-222B2020-MTAPOT 2.2K OHM 1/10W CARBON LOG |
2,507 |
|
Datasheet | PC-16 | Bulk | Active | 2.2k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3360P-1-202LFPOT 2K OHM 1/4W PLASTIC LINEAR |
4,043 |
|
Datasheet | 3360 | Tray | Active | 2k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
3360C-1-104LFPOT 100K OHM 1/4W PLASTIC LINEAR |
1,356 |
|
Datasheet | 3360 | Tray | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
|
3360C-1-103LFPOT 10K OHM 1/4W PLASTIC LINEAR |
2,210 |
|
Datasheet | 3360 | Tray | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
|
3360P-1-504LFPOT 500K OHM 1/4W PLASTIC LINEAR |
1,425 |
|
Datasheet | 3360 | Tray | Active | 500k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
3360Y-1-204LFPOT 200K OHM 1/4W PLASTIC LINEAR |
3,296 |
|
Datasheet | 3360 | Tray | Active | 200k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 310° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
|
|
PC16SH-10IP06-472B2020-MTAPOT 4.7K OHM 1/10W CARBON LOG |
4,132 |
|
Datasheet | PC-16 | Bulk | Active | 4.7k | ±20% | 0.1W, 1/10W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

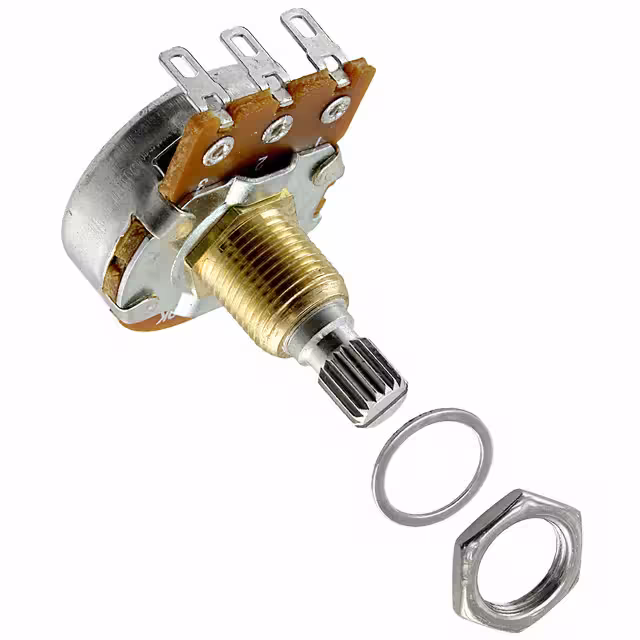

PDB241-GTR01-504C2POT 500K OHM 1/4W CARBON R-LOG |
3,768 |
|
Datasheet | Pro Audio PDB241-GTR | Tray | Active | 500k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
PDB241-GTR01-254B0POT 250K OHM 1/4W CARBON LINEAR |
1,255 |
|
Datasheet | Pro Audio PDB241-GTR | Tray | Active | 250k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
PC16SV-10IP06-103A2020-25,0-TAPOT 10K OHM 1/5W CARBON LINEAR |
2,066 |
|
Datasheet | PC-16 | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PDB241-GNL01-254B0POT 250K OHM 1/4W CARBON LINEAR |
1,953 |
|
Datasheet | Pro Audio PDB241-GNL | Tray | Active | 250k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
