Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
248FGJS0XB25104MAPOT 100K OHM 1/2W PLASTIC LINEAR |
1,751 |
|
Datasheet | 248 | Box | Active | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
3549S-1AA-502BPOT 5K OHM 2W WIREWOUND LINEAR |
4,516 |
|
Datasheet | 3549 | Tray | Active | 5k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
249BBHS0XB25104KAPOT 100K OHM 0.9W CERMET LINEAR |
1,247 |
|
Datasheet | 249 | Box | Active | 100k | ±10% | 0.9W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
14920F0GJSX13102KAPOT 1K OHM 1W CERMET LINEAR |
3,352 |
|
Datasheet | 149 | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
SPRU1011S28POT 100 OHM 1/2W CARBON LINEAR |
2,676 |
|
Datasheet | SPR | Bulk | Active | 100 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3590P-4-503LPOT 50K OHM 2W WIREWOUND LINEAR |
2,922 |
|
Datasheet | 3590 | Bulk | Active | 50k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
KB1021S28POT 1K OHM 2W CARBON R-LOG |
3,319 |
|
Datasheet | K | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
RV4NAYSJ105APOT 1M OHM 2W CARBON LINEAR |
4,068 |
|
Datasheet | RV4 | Bulk | Active | 1M | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 2.000" (50.80mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
P16NM102MAB15POT 1K OHM 1W CERMET LINEAR |
2,283 |
|
Datasheet | P16 | Box | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
3549S-1AC-102BPOT 1K OHM 2W WIREWOUND LINEAR |
3,576 |
|
Datasheet | 3549 | Tray | Active | 1k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P10XXAI502KB30POT 5K OHM 1/2W CERMET LINEAR |
1,402 |
|
Datasheet | P10 | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
535B1101JCPOT 100 OHM 1.5W WIREWOUND LIN |
4,618 |
|
Datasheet | 535 | Bulk | Active | 100 | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3549H-1AA-102APOT 1K OHM 2W HYBRITRON LINEAR |
4,470 |
|
Datasheet | Hybritron® 3549 | Tray | Active | 1k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NM104KAB15POT 100K OHM 1W CERMET LINEAR |
2,932 |
|
Datasheet | P16 | Box | Active | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P16NM102KAB15POT 1K OHM 1W CERMET LINEAR |
4,573 |
|
Datasheet | P16 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
535B1203JCPOT 20K OHM 1.5W WIREWOUND LIN |
1,482 |
|
Datasheet | 535 | Bulk | Active | 20k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
357B0102MAB251S22POT 1K OHM 1W PLASTIC LINEAR |
3,285 |
|
Datasheet | 357 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
14921F0GJSX13103KAPOT 10K OHM 1W CERMET LINEAR |
3,084 |
|
Datasheet | 149 | Box | Active | 10k | ±10% | 1W | Rotary, SPDT | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

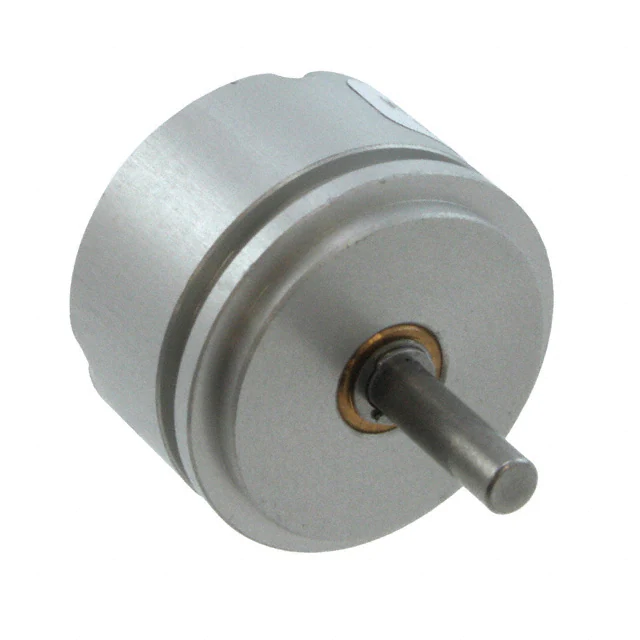

6539S-1-502POT 5K OHM 1W PLASTIC LINEAR |
4,105 |
|
Datasheet | 6539 | Bulk | Active | 5k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
533B1102JLPOT 1K OHM 1W WIREWOUND LINEAR |
1,841 |
|
Datasheet | 533 | Box | Active | 1k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
