Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

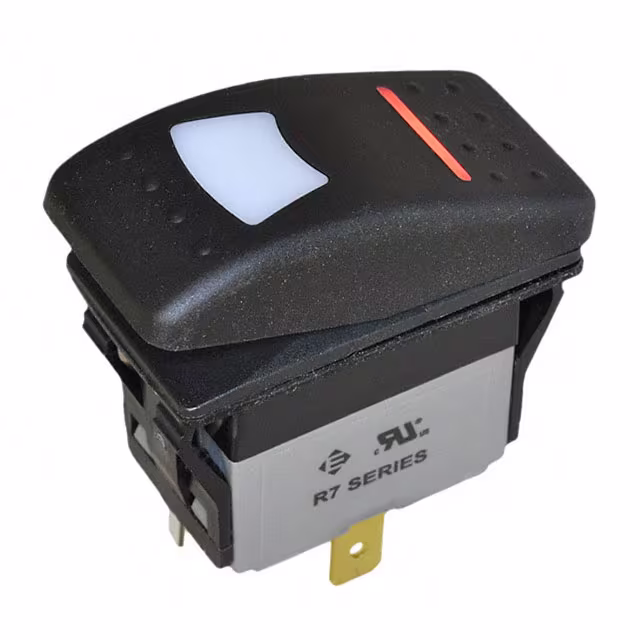

R713FE2-SXXX2B4GRWSWITCH ROCKER SPDT 16A 30V |
2,298 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|

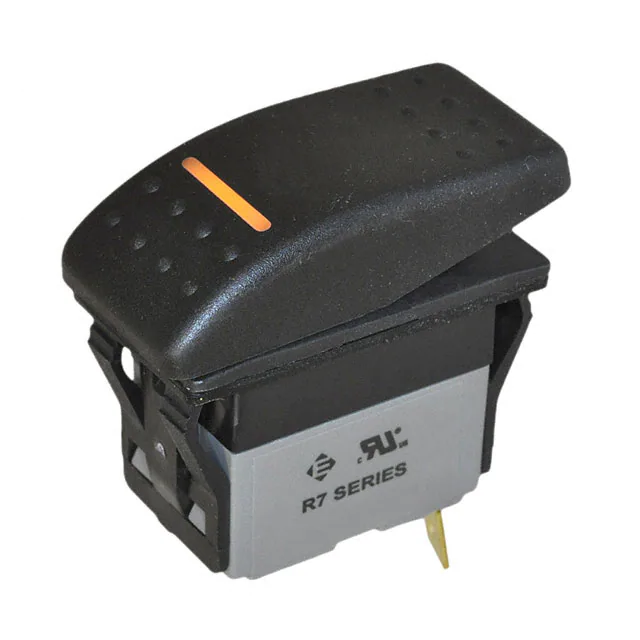

R711FB2-SXXX2BDANWSWITCH ROCKER SPST 16A 30V |
1,571 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
R713FE3-SXXX4B2RGWSWITCH ROCKER SPDT 20A 125V |
2,351 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
R711FB2-SXXX2BDGNWSWITCH ROCKER SPST 16A 30V |
3,546 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R713WE3-SXXX4G2RRWSWITCH ROCKER SPDT 20A 125V |
4,644 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Convex (Reverse V) - Illuminated | Gray | No Marking | LED, Red/Red | 125 VAC | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
3004P3R3REDM1RESWITCH ROCKER 4PDT 0.4VA 20V |
3,310 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Flange | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | - |
|
|
R713SB4-SXXX2B4GRWSWITCH ROCKER SPDT 16A 30V |
4,212 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R726FB1-SXXXNBDNNXSWITCH ROCKER DPDT 16A 30V |
4,212 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (DC) | - | 30 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R713WE3-SXXX4B2RRWSWITCH ROCKER SPDT 20A 125V |
3,155 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red/Red | 125 VAC | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
3004P5R2BLKM1QESWITCH ROCKER 4PDT 5A 120V |
2,385 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Flange | 4PDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
