Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

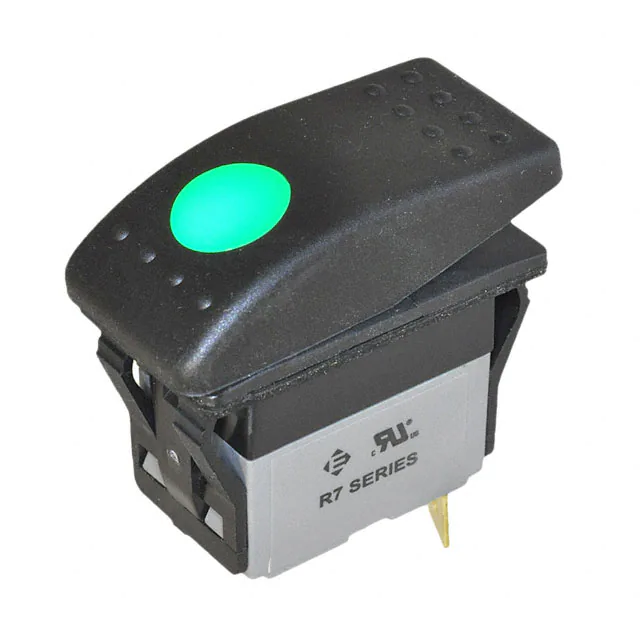

R711FF1-SXXX2BDGNWSWITCH ROCKER SPST 16A 30V |
1,925 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
3003P5J1BLKM2RESWITCH ROCKER 3PDT 0.4VA 20V |
4,731 |
|
Datasheet | 300 | Bulk | Active | Through Hole | 3PDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
R711FE1-SXXX1BDGNWSWITCH ROCKER SPST 16A 30V |
4,267 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 6 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R726FXX-SXXXNXBNNXSWITCH ROCKER DPDT 20A 125V |
1,759 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Convex (Reverse V) | - | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R711FB2-SXXX4BBGNWSWITCH ROCKER SPST 20A 125V |
4,788 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R714FE1-SXXX3BDANXSWITCH ROCKER SPST-NO 16A 30V |
2,138 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
R711FB2-SXXX3BDGNWSWITCH ROCKER SPST 16A 30V |
3,108 |
|
Datasheet | R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
3004P1J1BLKM7QESWITCH ROCKER 4PDT 5A 120V |
2,887 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3004P1J3BLKM7QESWITCH ROCKER 4PDT 5A 120V |
4,114 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3004P1R3BLKM1RESWITCH ROCKER 4PDT 0.4VA 20V |
3,006 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Flange | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | - |
