Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3003P1R6WHTM3QEWHTSWITCH ROCKER 3PDT 5A 120V |
4,692 |
|
Datasheet | 300 | Tray | Active | Panel Mount, Snap-In | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
3003P4R6BLKM1QEBLKSWITCH ROCKER 3PDT 5A 120V |
4,347 |
|
Datasheet | 300 | Tray | Active | Panel Mount, Snap-In | 3PDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP8J2BLKM6RESWITCH ROCKER DP3T 0.4VA 20V |
1,970 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle | DP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP7J1BLKM7RESWITCH ROCKER DP3T 0.4VA 20V |
2,788 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RVWZ142D1121SWITCH ROCKER DPST 20A 125V |
1,963 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | - | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
3004P1R6BLKM1REBLKSWITCH ROCKER 4PDT 0.4VA 20V |
1,719 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|

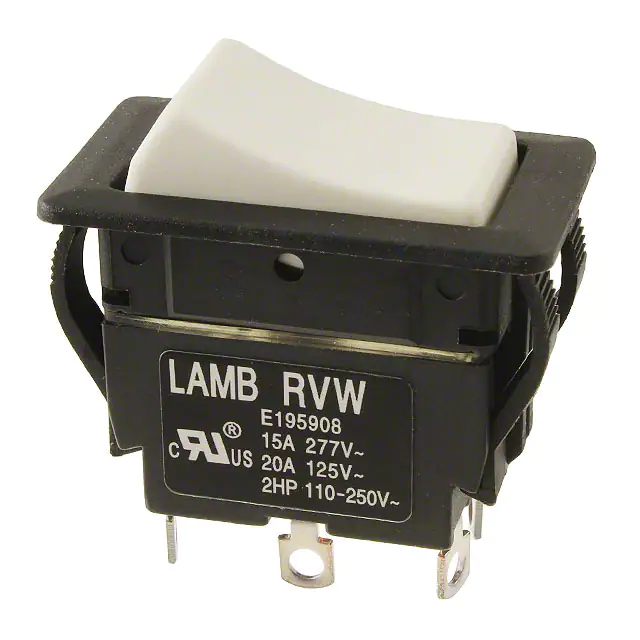

RVW5GD1200SWITCH ROCKER DPDT 20A 125V |
1,468 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
RVW6Z02D1200SWITCH ROCKER 20A 125V |
3,513 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | - | - | 20A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
3003P1J1M7QESWITCH ROCKER 3PDT 5A 120V |
4,582 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3003P1J3WHTM6QESWITCH ROCKER 3PDT 5A 120V |
4,943 |
|
Datasheet | 300 | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
