Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML26GBE2CA01GRSWITCH ROCKER DPDT 3A 125V |
2,967 |
|
Datasheet | AML26 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 15 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
2TP8-6SWITCH ROCKER DPST-NO 10A 125V |
4,524 |
|
Datasheet | TP | Bulk | Obsolete | Panel Mount, Flange | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|

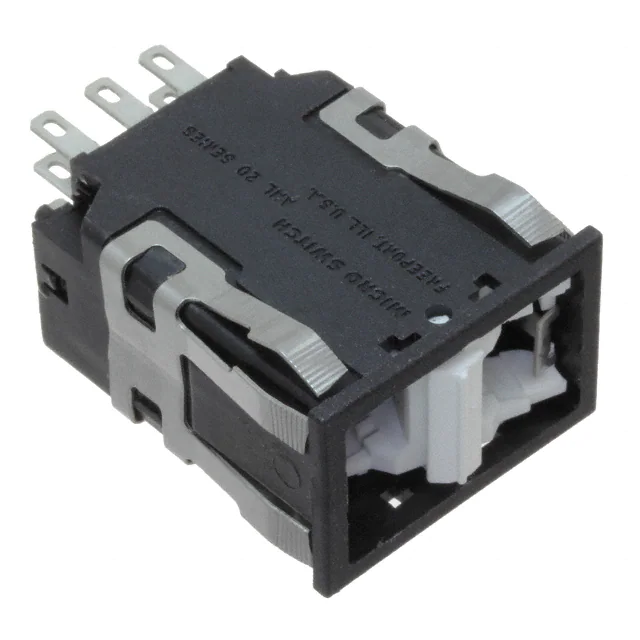

AML24GBA2AA01SWITCH ROCKER SPDT 3A 125V |
4,719 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
2TP1-70SWITCH ROCKER DPDT 10A 125V |
1,025 |
|
Datasheet | TP | Bulk | Obsolete | Panel Mount, Flange | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML24EBA2AC03SWITCH ROCKER DPDT 3A 125V |
1,968 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML26GBF8CA01RGSWITCH ROCKER DPDT 3A 125V |
1,766 |
|
Datasheet | AML26 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Diode Protection for LED | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
2TP12-2SWITCH ROCKER DPST 15A 125V |
1,926 |
|
Datasheet | TP | Bulk | Obsolete | Panel Mount, Flange | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML26GBE3AA03GRSWITCH ROCKER SPDT 3A 125V |
3,332 |
|
Datasheet | AML26 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 15 VDC | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
2TP7-1SWITCH ROCKER DPDT 15A 125V |
1,884 |
|
Datasheet | TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 15A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP1-31SWITCH ROCKER SPDT 15A 125V |
2,423 |
|
Datasheet | TP | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
