Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

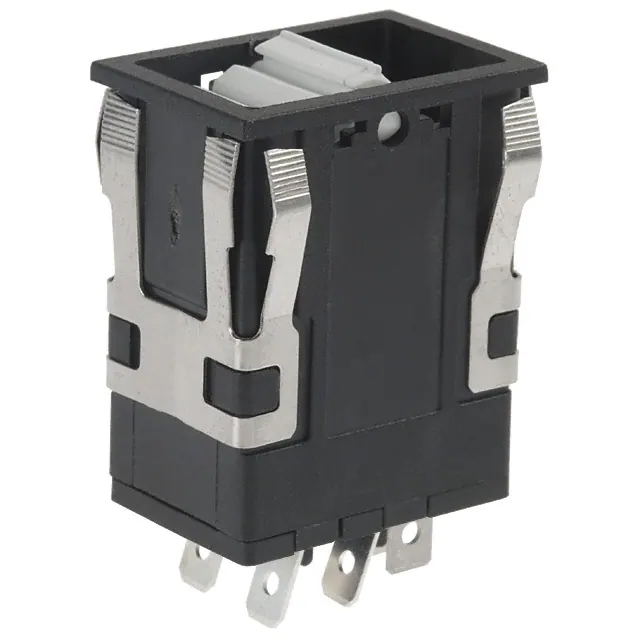

AML34FBA4AC01SWITCH ROCKER DPST 15A 125V |
300 |
|
Datasheet | AML34 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|

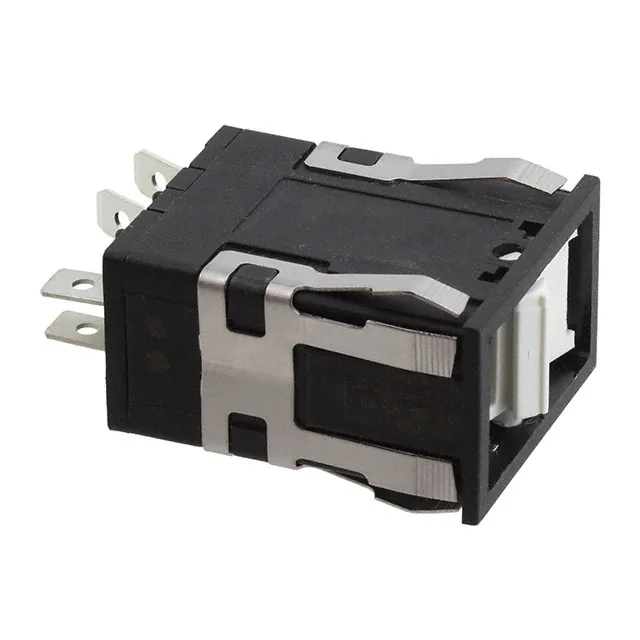

AML34FBA4AA01SWITCH ROCKER SPST 15A 125V |
3,105 |
|
Datasheet | AML34 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|

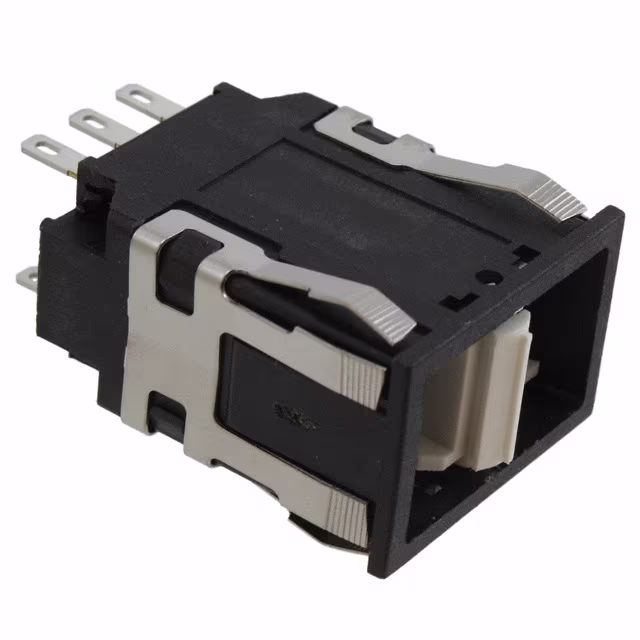

AML24EBA2AC04SWITCH ROCKER DPDT 3A 125V |
107 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
AML26GBF2CA02RGSWITCH ROCKER DPDT 3A 125V |
1,568 |
|
Datasheet | AML26 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|

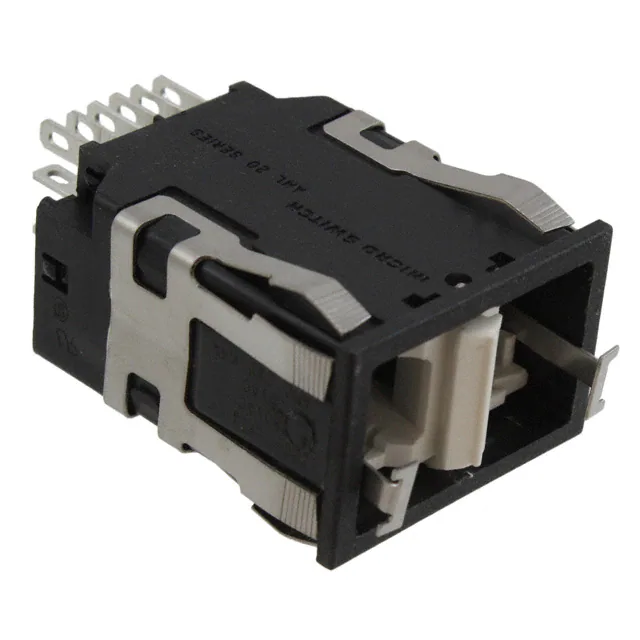

AML24GBA2CA04SWITCH ROCKER DPDT 3A 125V |
2,156 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
2TP201-1SWITCH ROCKER DPDT 15A 125V |
2,836 |
|
Datasheet | TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|

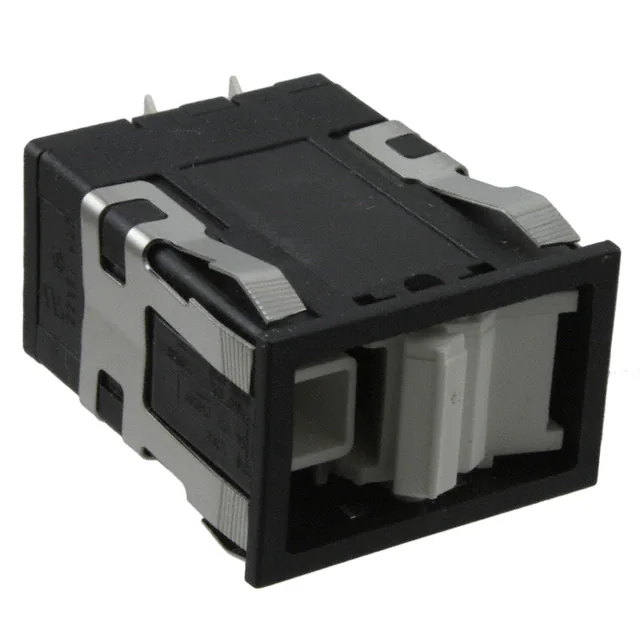

AML36FBB7AC01SWITCH ROCKER DPST 15A 125V |
2,909 |
|
Datasheet | AML36 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Neon, Red | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|
AML24EBA2AA06SWITCH ROCKER SPDT 3A 125V |
2,580 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
AML36FBC7AC01SWITCH ROCKER DPST 15A 125V |
2,441 |
|
Datasheet | AML36 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|
4TP1-10SWITCH ROCKER 4PDT 15A 125V |
3,695 |
|
Datasheet | TP | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-On-On | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | - | -54°C ~ 71°C | - |
