Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML24EBA2BC01SWITCH ROCKER DPDT 100MA 125V |
4,836 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
2TP201-7SWITCH ROCKER DPDT 10A 125V |
3,132 |
|
Datasheet | TP | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
AML24GBA2AA07SWITCH ROCKER SPDT 3A 125V |
1,685 |
|
Datasheet | AML24 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML26FBF2AA05RXSWITCH ROCKER SPDT 3A 125V |
2,561 |
|
Datasheet | AML26 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
AML24FBA2CA05-ISWITCH ROCKER DPDT 3A 125V |
1,663 |
|
Datasheet | AML24 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
2TP7-8SWITCH ROCKER DPST-NC 10A 125V |
4,519 |
|
- |
TP | Bulk | Obsolete | Panel Mount, Flange | DPST-NC | On-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | - | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML24EBA2BA02SWITCH ROCKER SPDT 100MA 125V |
4,462 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|

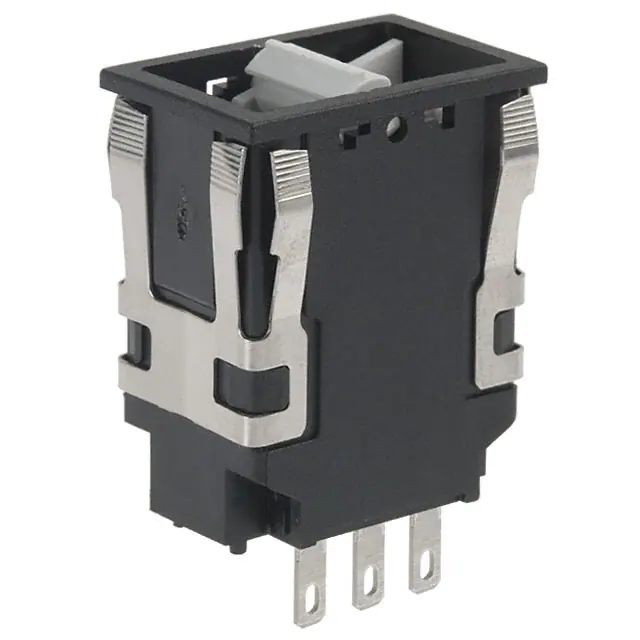

AML24EBA2BA01SWITCH ROCKER SPDT 100MA 125V |
3,753 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
AML24EBA2BA05SWITCH ROCKER SPDT 100MA 125V |
4,380 |
|
Datasheet | AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24EBA2BC03SWITCH ROCKER DPDT 100MA 125V |
1,339 |
|
Datasheet | AML24 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
