Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV4F2Y0SS-334SWITCH PUSHBUTTON DPST 2A 24V |
3,356 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
LP2S2WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
3,679 |
|
Datasheet | LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
TL2205EEBPGBSWITCH PUSH DPDT 0.1A 30V |
1,353 |
|
Datasheet | TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button | No Marking | Black (White Window) | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
800SP9B9M6REHSWITCH PUSH SPST-NO 0.4VA 20V |
2,309 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
PV2S640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
1,832 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
RP8400B2M1CENICBLKNILSWITCH PB SPST-NO 0.125A 125V |
1,068 |
|
Datasheet | RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

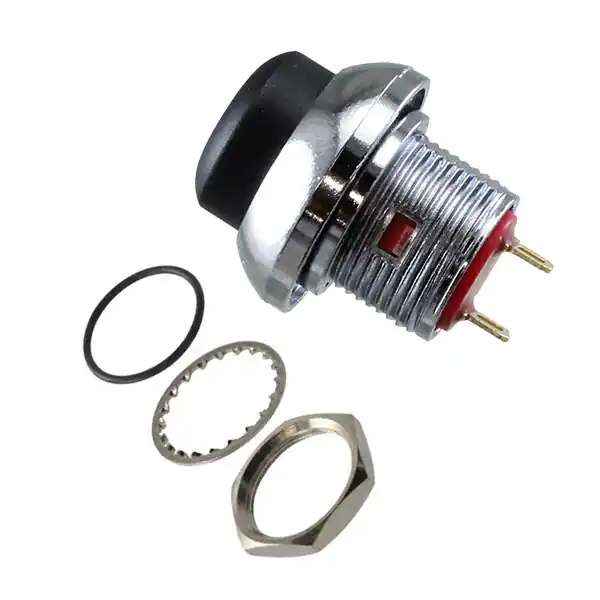

RP8301B2M1CECHRBLKNILSWITCH PB SPST-NO 200MA 250V |
2,579 |
|
Datasheet | RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
FS5700SPLT2B2M2QESWITCH PUSHBUTTON SPDT 1A 9V |
3,871 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
RP8400B2M1CECHRBLKNILSWITCH PB SPST-NO 0.125A 125V |
2,728 |
|
Datasheet | RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
PV1H24011SWITCH PUSHBUTTON SPST-NO 2A 48V |
2,020 |
|
Datasheet | PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
