Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULV4F2GSS544SWITCH PUSHBUTTON DPDT 3A 125V |
4,650 |
|
Datasheet | ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
PV4F2Y0SS-331SWITCH PUSHBUTTON DPST 2A 24V |
4,794 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

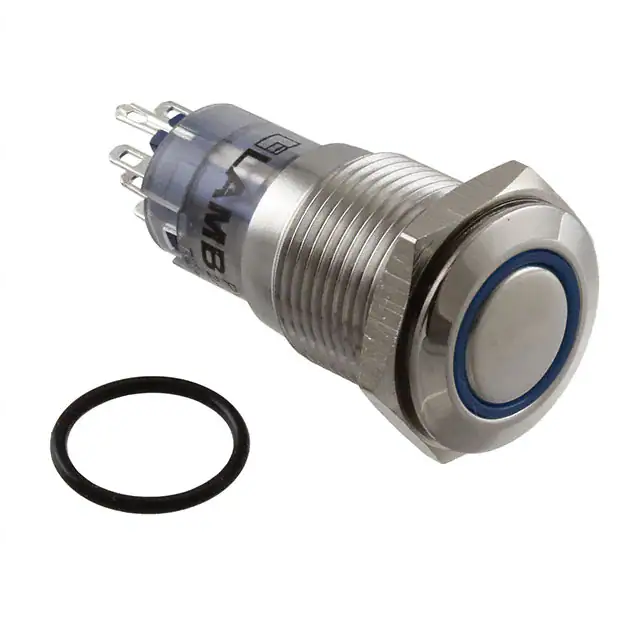

PV3WF2H0SS-341SWITCH PUSHBUTTON DPDT 2A 48V |
3,874 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PV7FWY011-3R5SWITCH PB DPST-NO/NC 2A 48V |
4,167 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Blue/Green/Red | 24 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV4F2B0SS-311SWITCH PUSHBUTTON SPDT 2A 24V |
4,016 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV7F2Y0SS-334SWITCH PUSHBUTTON SPDT 2A 48V |
2,909 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV4F2Y0SS-345SWITCH PUSHBUTTON SPDT 2A 24V |
1,859 |
|
Datasheet | PV4, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV7F2Y0SS-355SWITCH PUSHBUTTON SPDT 2A 48V |
2,041 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV7F2Y0SS-314SWITCH PUSHBUTTON SPDT 2A 48V |
1,953 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV9F2Y0SS-345SWITCH PB DPST-NO/NC 2A 48V |
3,912 |
|
Datasheet | PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
