Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

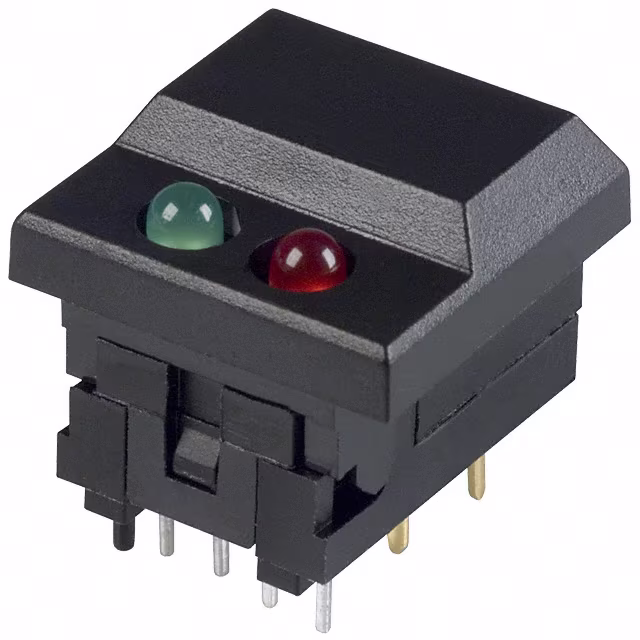

5511MBLKREDGRNSWITCH PUSH SPDT 0.03A 12V |
1,755 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green/Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
PV5S240NNSWITCH PB SPST-NO 2A 36V |
2,227 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

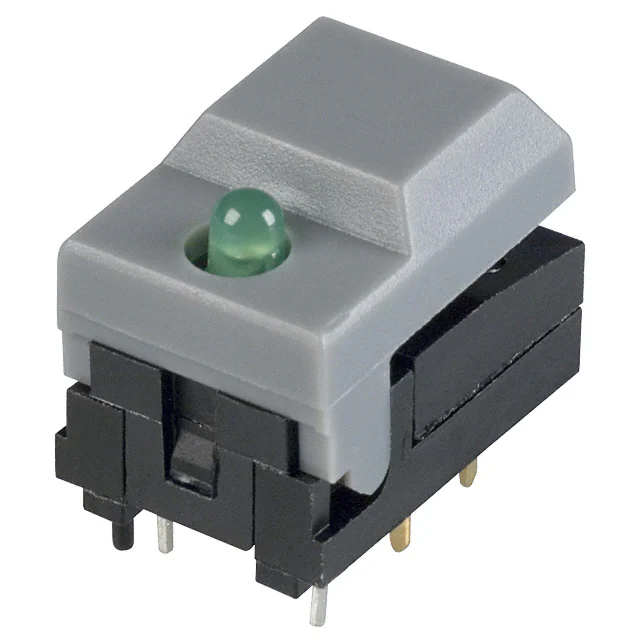

5501MGRYGRNSWITCH PUSH SPDT 0.3A 12V |
3,557 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

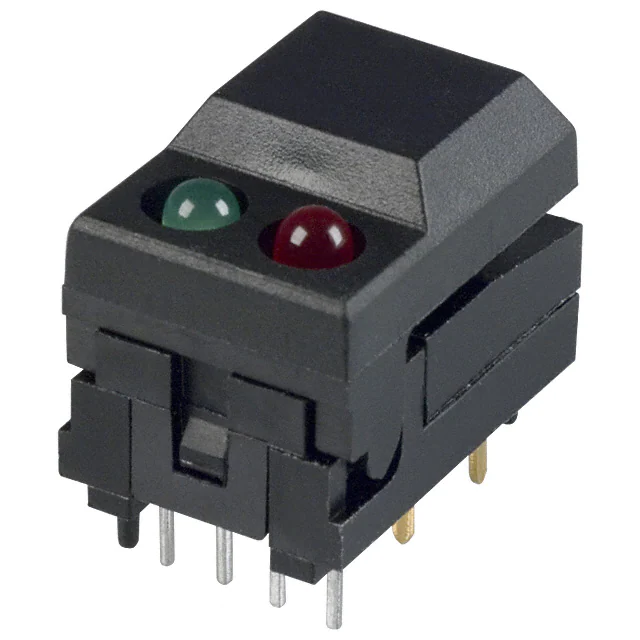

5501MBLKREDGRNSWITCH PUSH SPDT 0.3A 12V |
3,787 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green/Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
PV2H640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
2,385 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV2S240SSSWITCH PB SPST-NO 2A 48V |
2,239 |
|
Datasheet | PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | - | Silver | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV2H640BBSWITCH PUSHBUTTON SPST 2A 48V |
4,740 |
|
Datasheet | PV2, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV2H240SSSWITCH PUSHBUTTON SPST 2A 48V |
3,509 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV1H240SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
4,114 |
|
Datasheet | PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV2S64011SWITCH PUSH SPST-NO 2A 48V |
3,692 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
