Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBH2UEEKZXNAGXSWITCH PUSH DPDT 0.1A 30V |
2,033 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
LC2255OANPSWITCH PUSH DPDT 0.3A 30V |
2,575 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

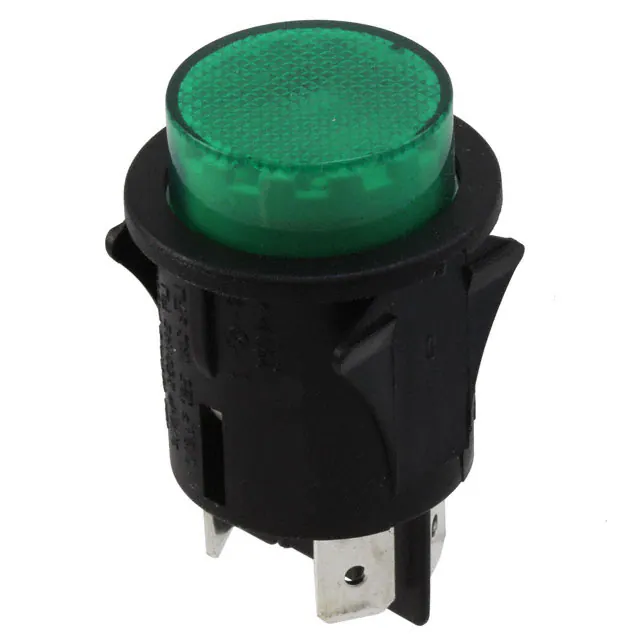

PR142C1000-137SWITCH PUSHBUTTON DPST 16A 125V |
1,937 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
800SP9B5M1QEHSWITCH PUSH SPST-NO 3A 120V |
4,432 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
800UDP8P1A1M2RESWITCH PUSH DPDT 0.4VA 20V |
4,579 |
|
Datasheet | 800U | Tube | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

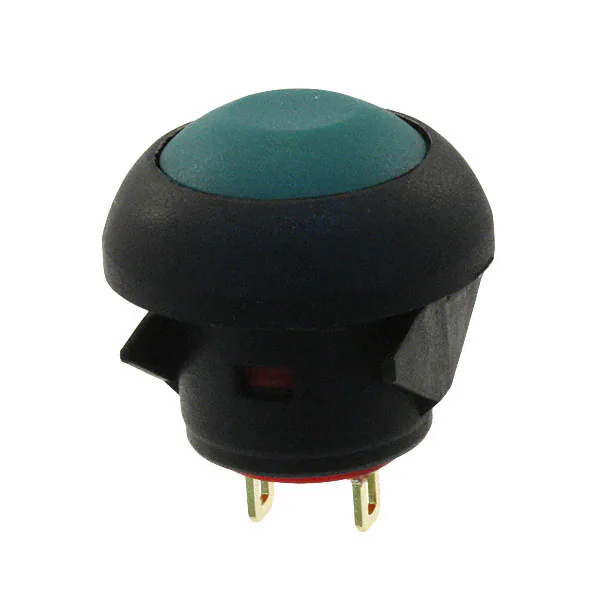

RP8100B1M1CEBLKGRNNILSWITCH PB SPST-NO 0.125A 125V |
4,259 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PV5S24017SWITCH PB SPST-NO 2A 36V |
4,314 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Blue | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
PV5S24016SWITCH PUSH SPST-NO 2A 36V |
2,710 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Yellow | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
.JPG)
|
PV5S64017SWITCH PUSH SPST-NO 2A 36V |
2,065 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
RP8201B2M1CEBLKBLKNILSWITCH PUSH SPST 0.1A 24V |
1,785 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
