Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P297EEPASWITCH PUSH DPST 5A 250V |
3,413 |
|
Datasheet | P297 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPST | Off-On | 5A (AC) | 250 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
ULP12OAP1RSSCL1BLUREDSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,147 |
|
Datasheet | ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Red | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|

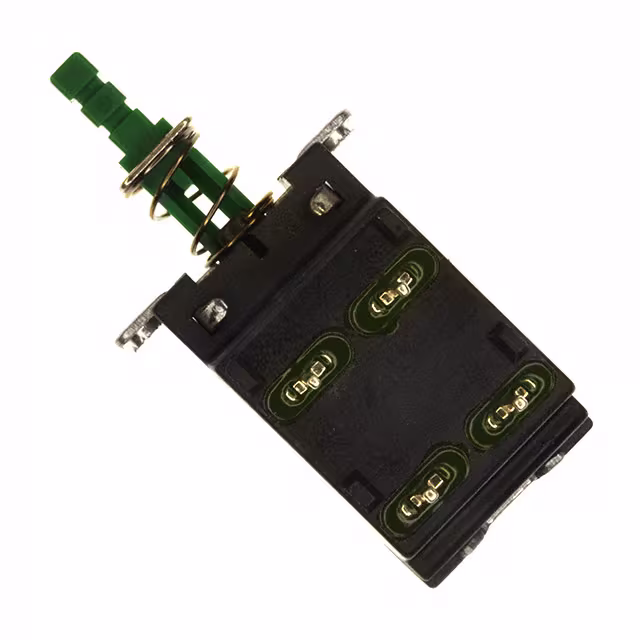

P297EEPBSWITCH PUSH DPST 5A 250V |
2,461 |
|
Datasheet | P297 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPST | Off-On | 5A (AC) | 250 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
330.02E11.08BLKSWITCH PUSH SPST-NO 0.025A 50V |
3,884 |
|
- |
330 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 25mA (DC) | - | 50 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
800SP8B6M6QEC1BLKSWITCH PUSHBUTTON SPDT 3A 120V |
3,024 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800SP8M1QEOP1BLKBLKSWITCH PUSHBUTTON SPDT 3A 120V |
2,471 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.00mm | -30°C ~ 85°C |
|
|
800SP9B5M1QEC2REDSWITCH PUSH SPST-NO 3A 120V |
2,283 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
800SP9B7M6QEC2BLKSWITCH PUSH SPST-NO 3A 120V |
3,003 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800SP9B7M6REC1BLKSWITCH PUSH SPST-NO 0.4VA 20V |
3,164 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
D16EER110REDSWITCH PUSHBUTTON SPDT 8A 125V |
1,813 |
|
Datasheet | D16 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
