Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
520.03-BLKSWITCH PUSH SPST-NO 0.01A 35V |
2,491 |
|
Datasheet | 520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
|
520.03-YELSWITCH PUSH SPST-NO 0.01A 35V |
3,273 |
|
Datasheet | 520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | - | - | - |
|
|
520.04SWITCH PUSH SPST-NO 0.01A 35V |
3,891 |
|
- |
520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
MTH2UEEKZXNAGXSWITCH PUSH DPDT 0.1A 30V |
4,638 |
|
Datasheet | MTH | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

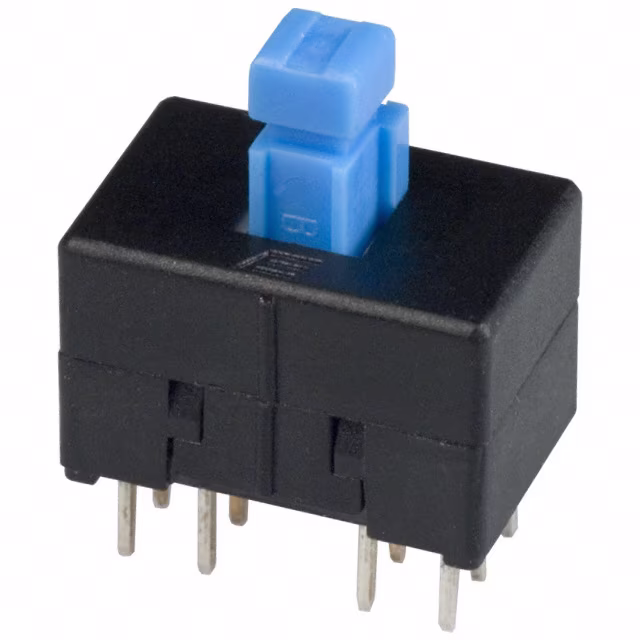

TL4201OAYASWITCH PUSH 4PDT 0.1A 30V |
1,866 |
|
Datasheet | TL4201 | Bulk | Obsolete | Through Hole | Standard | 4PDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

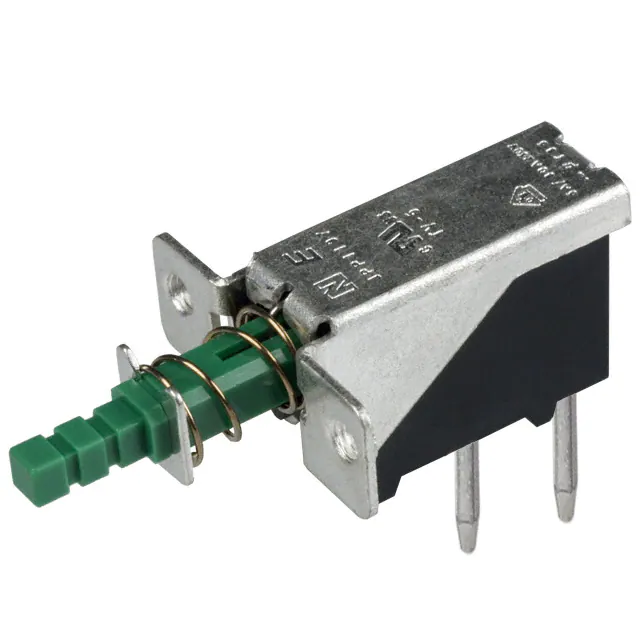

P197EEPBSWITCH PUSHBUTTON SPST 5A 125V |
4,956 |
|
Datasheet | P197 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPST | Off-On | 5A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
P197EESBSWITCH PUSHBUTTON SPST 5A 125V |
2,181 |
|
Datasheet | P197 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPST | Off-On | 5A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | - | -20°C ~ 85°C |
|
P227EE1CXCSWITCH PUSHBUTTON DPST 7A 125V |
3,038 |
|
Datasheet | P227 | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPST | Off-On | 7A (AC) | 125 V | - | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
|
TA10UEEAAGPNSWITCH PUSH 10PDT 0.5A 100V |
3,647 |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 10PDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA10UOAAAGPNSWITCH PUSH 10PDT 0.5A 100V |
4,122 |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 10PDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
