Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA2UEEAAUPNSWITCH PUSH DPDT 0.5A 100V |
4,468 |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA2UEECAUPNSWITCH PUSH DPDT 0.5A 100V |
2,857 |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA4UEEAAUPNSWITCH PUSH 4PDT 0.5A 100V |
3,884 |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
MTH2UOANAGXSWITCH PUSH DPDT 0.1A 30V |
1,849 |
|
Datasheet | MTH | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
|
MTH2UEENAGXSWITCH PUSH DPDT 0.1A 30V |
4,591 |
|
Datasheet | MTH | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
|
520.01-BLKSWITCH PUSH SPST-NO 0.01A 35V |
4,410 |
|
Datasheet | 520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
|
520.01-REDSWITCH PUSH SPST-NO 0.01A 35V |
3,276 |
|
Datasheet | 520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | - |
|
|
520.02-BLKSWITCH PUSH SPST-NO 0.01A 35V |
2,153 |
|
Datasheet | 520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
520.02-GRNSWITCH PUSH SPST-NO 0.01A 35V |
3,935 |
|
Datasheet | 520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Green | - | - | PC Pin | - | - | - | - |
|

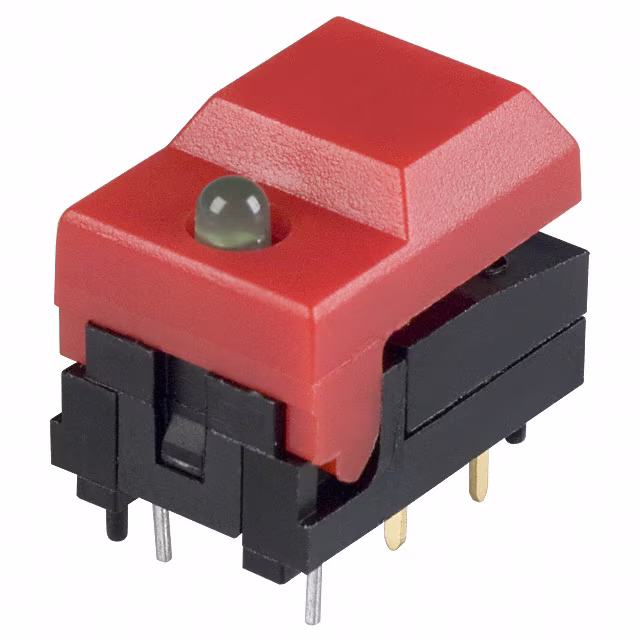

5501MREDGRNSWITCH PUSH SPDT 0.3A 12V |
4,219 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
