Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

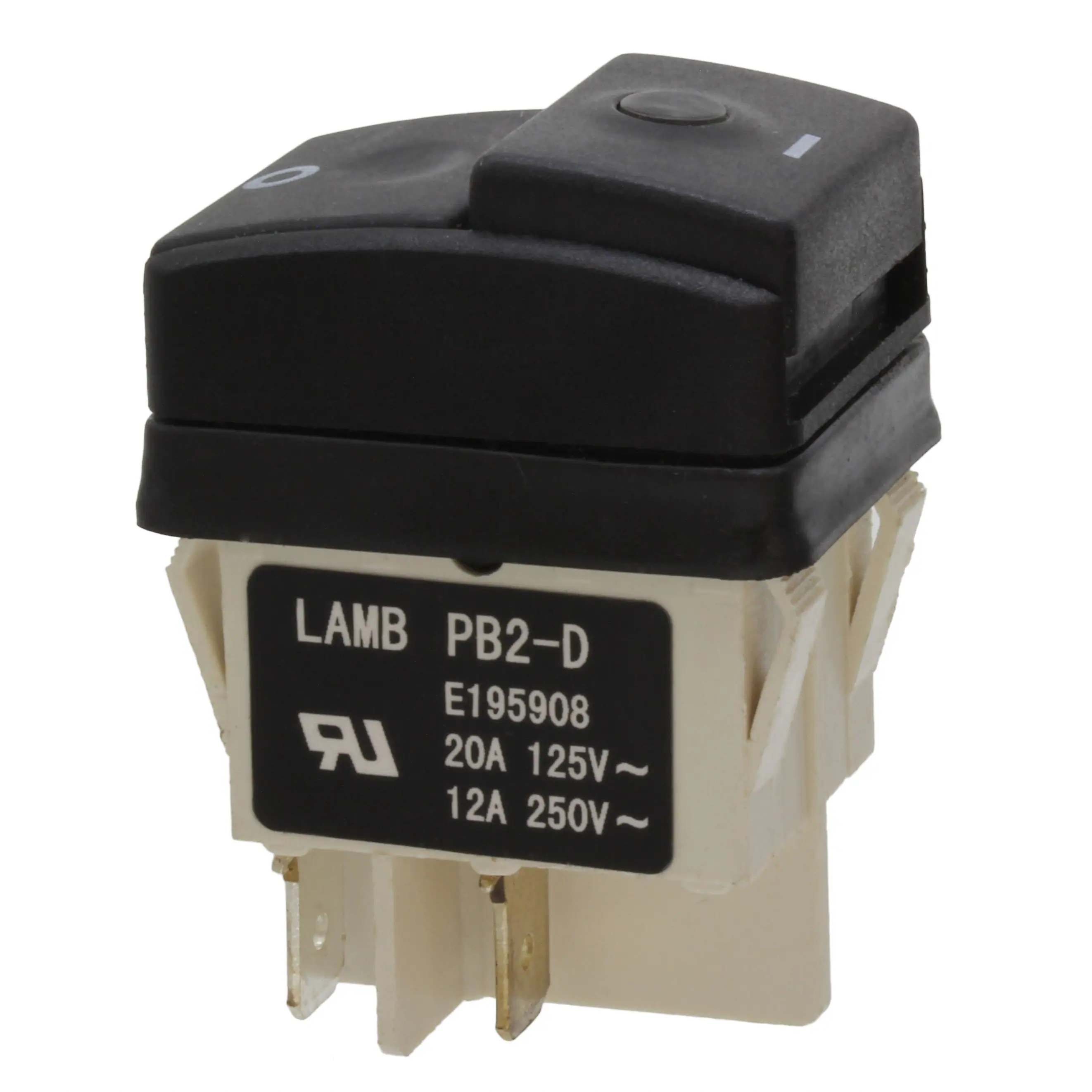

PB242D212R-207TSWITCH PUSHBUTTON DPST 20A 125V |
4,592 |
|
Datasheet | PB2, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|
700SP7B10M7CEHSwitches |
4,550 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | - | - | - | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700SP7B11M7QEHSWITCH PUSHBUTTON SPDT 3A 120V |
4,285 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
PB241D1A21SWITCH PB SPST 20A 125V |
2,776 |
|
Datasheet | PB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | - | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|
|
800AWSP8VS2QESWITCH PUSHBUTTON SPDT 1A 120V |
2,805 |
|
Datasheet | 800A | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
700ADP7B10M2QEHSwitches |
3,318 |
|
Datasheet | 700A | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B8M7QESWITCH PUSH SPST-NO 3A 120V |
4,751 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800AWSP8M6RESWITCH PUSHBUTTON SPDT 1A 120V |
4,800 |
|
Datasheet | 800A | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
700ASP7B10M6RECUTACT173SWITCH PB SPDT 0.4VA 20V |
4,337 |
|
Datasheet | 700A | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700ASP7B10M6REHSwitches |
2,208 |
|
Datasheet | 700A | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
