Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700SP7B11M7QEC2WHTSWITCH PB SPDT 3A 120V |
1,764 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP8B6VS2QEC2BLKSWITCH PUSHBUTTON SPDT 3A 120V |
4,338 |
|
Datasheet | 800 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
LP15S1WHTGRN-NSWITCH PUSH SPST-NO 1MA 20V |
3,396 |
|
Datasheet | LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP15S1WHTRED-NSWITCH PUSH SPST-NO 1MA 20V |
2,965 |
|
Datasheet | LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Red | 1.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP15S1BLKGRNNSWITCH PUSH SPST-NO 1MA 20V |
3,641 |
|
Datasheet | LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Black | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
700ASP7B10M7QEHSwitches |
4,310 |
|
Datasheet | 700A | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
LP15R1WHTWHT-NSWITCH PB SPST-NO 1MA 20V |
1,628 |
|
Datasheet | LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | - | White | LED, White | 2.8 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP8B10M6RESWITCH PUSH SPDT 0.4VA 20V |
2,209 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700CSP7B60M6QEHSwitches |
1,162 |
|
Datasheet | 700C | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

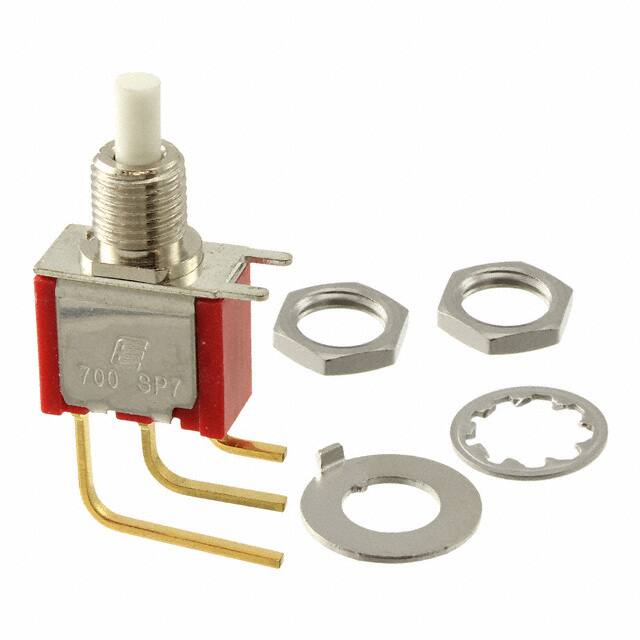

700SP7B10M7RESWITCH PUSHBUTTON SPDT 0.4VA 20V |
2,185 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
