Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800BWSP9SM6QESWITCH PUSH SPST-NO 3A 120V |
2,439 |
|
Datasheet | 800B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

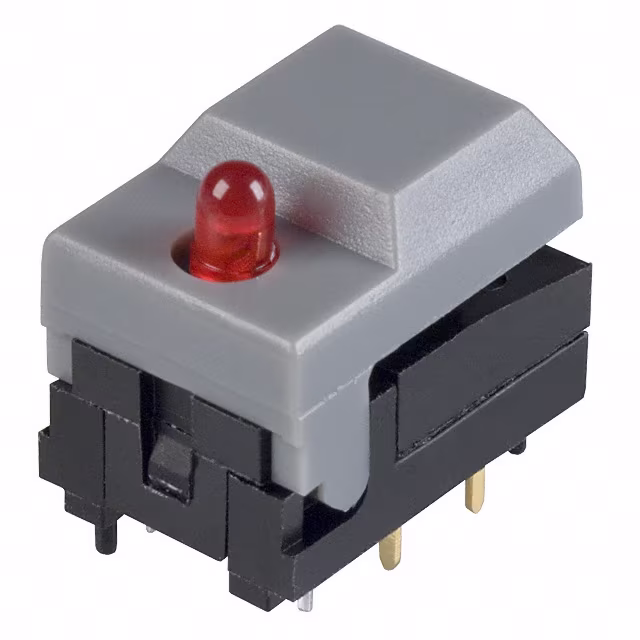

5501MGRYREDSWITCH PUSH SPDT 0.3A 12V |
3,450 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5511MWHTGRNSWITCH PUSH SPDT 0.03A 12V |
4,908 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MBLUGRNSWITCH PUSH SPDT 0.3A 12V |
1,193 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Blue | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5511MBLKYELSWITCH PUSH SPDT 0.3A 12V |
2,239 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
RP8400B2M1CEBLKWHTNILSWITCH PB SPST-NO 0.125A 125V |
2,617 |
|
Datasheet | RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
PB2L42D1A23SWITCH PB DPST 20A 125V |
1,990 |
|
Datasheet | PB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | - | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|
|
5511MBLKBLUSWITCH PB SPDT 0.3A 12V |
4,846 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | - | Black | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
800SP8B5M7QESWITCH PUSHBUTTON SPDT 3A 120V |
2,774 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
700SP7B10M51QEHSWITCH PUSHBUTTON SPDT 3A 120V |
1,147 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
